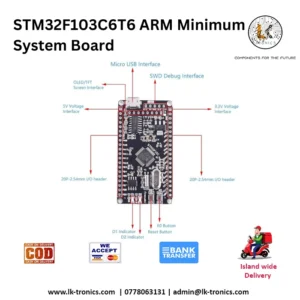

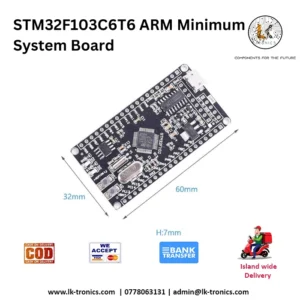

STM32F103C6T6 Development Board Upgrade Mini STM32 System Microcontroller Core Board

This is STM32F103C6T6 Development Board Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C6T6. The board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.

Specification:

• Onboard Mini USB interface, you can give the board power supply and USB communication.
• 72MHz work frequency
• 32KB flash memory, 20K SRAM
• 2.0-3.6V power, I/O
• Reset(POR/PDR)
• 4-16MHz crystal
• 32 kHz oscillator for RTC with calibration
• Up to 2 x I2C interfaces (SMBus/PMBus)
• Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
• Up to 2 SPIs (18 Mbit/s)
• CAN interface (2.0B Active)
