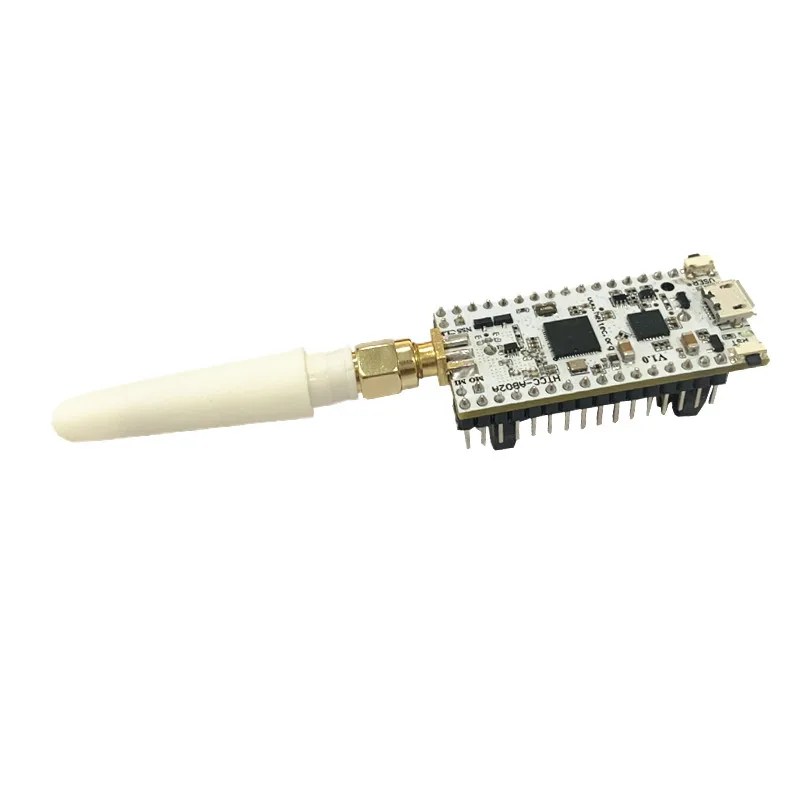

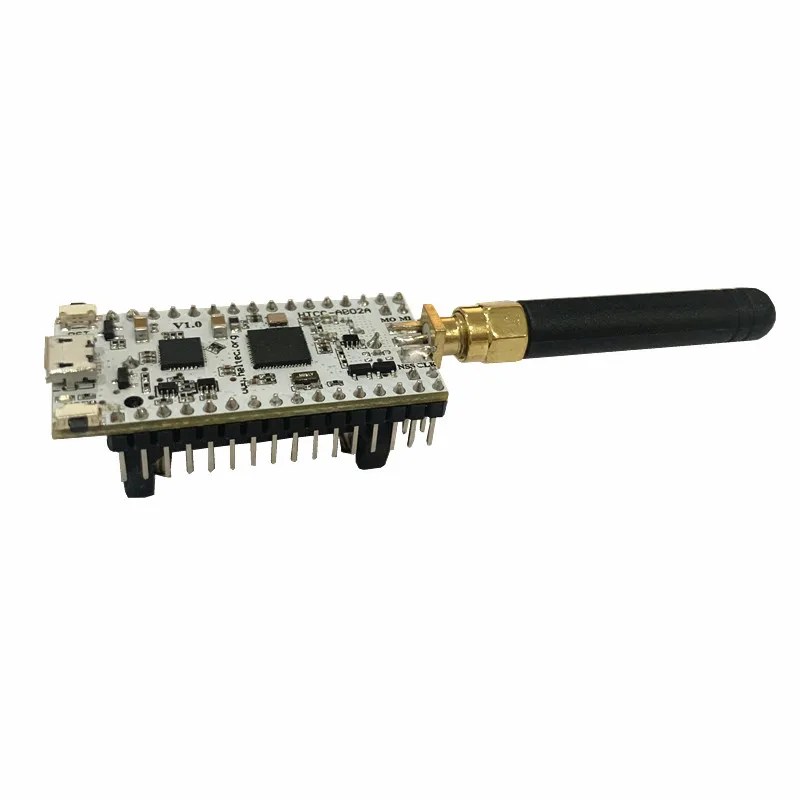

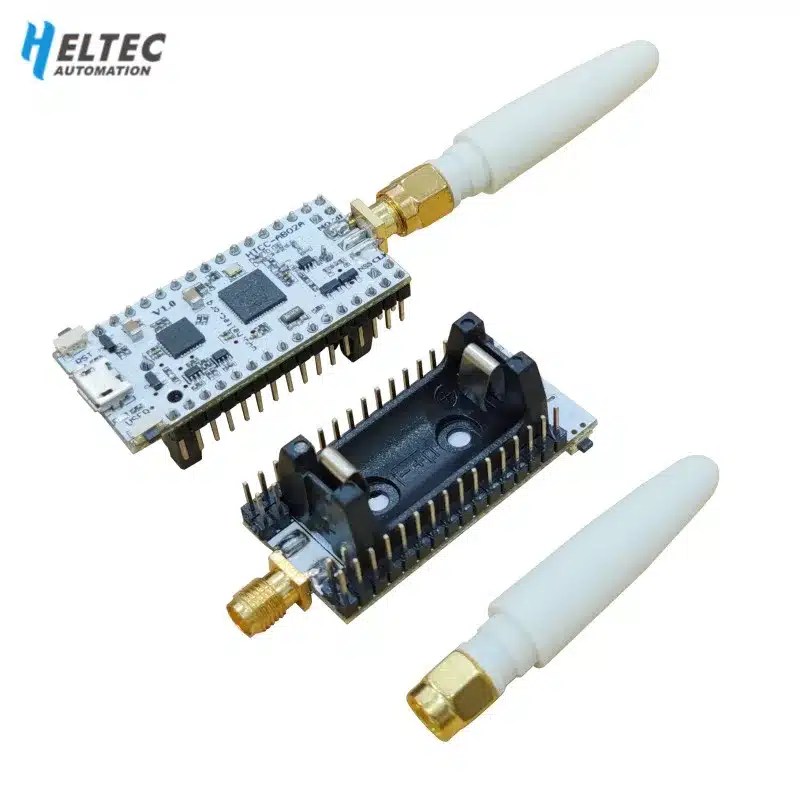

Heltec IOT Accessory CubeCell Lora Node ASR6502 LoRaWAN node applications for arduino with Antenna 1/2AA battery case 868 915MHZ
- Model Number: HTCC-AB02A
- Brand Name: Heltec Automation
- Origin: Mainland China
![](https://i0.wp.com/ae01.alicdn.com/kf/Sca1411b58f514349a784aba24371d6a2X.jpg?w=1170&ssl=1)
NOTE:
Include antenna;
Include SH1.25 x 2 battery connector;
Not include battery;
2.54 headers default not assemble.

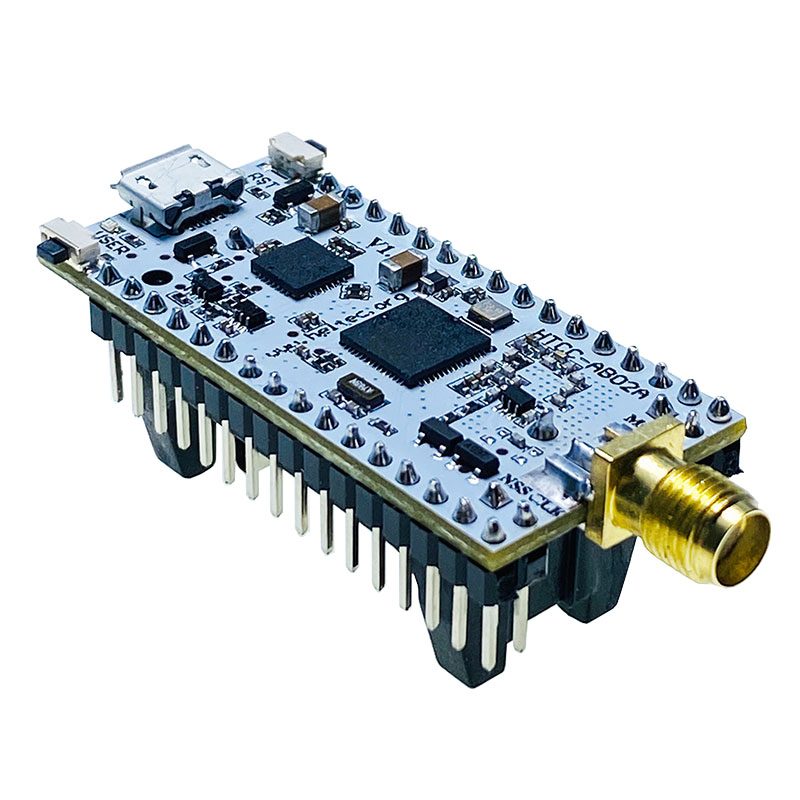

HTCC-AB02A is a part of the “CubeCell“ series, with the following features:
Perfect Arduino-Compatible!
CE and FCC certification;
Based on ASR605x (ASR6501, ASR6502), those chips are already integrated the PSoC® 4000 series MCU (ARM® Cortex® M0+ Core) and SX1262;
LoRaWAN 1.0.2 support;
Ultra low power design, 3.5uA in deep sleep;

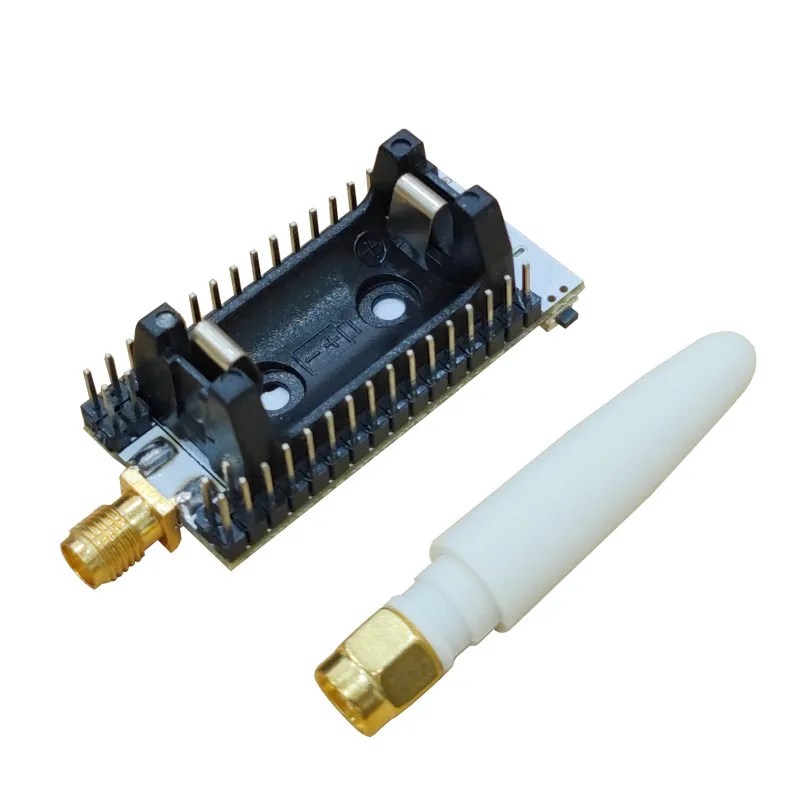

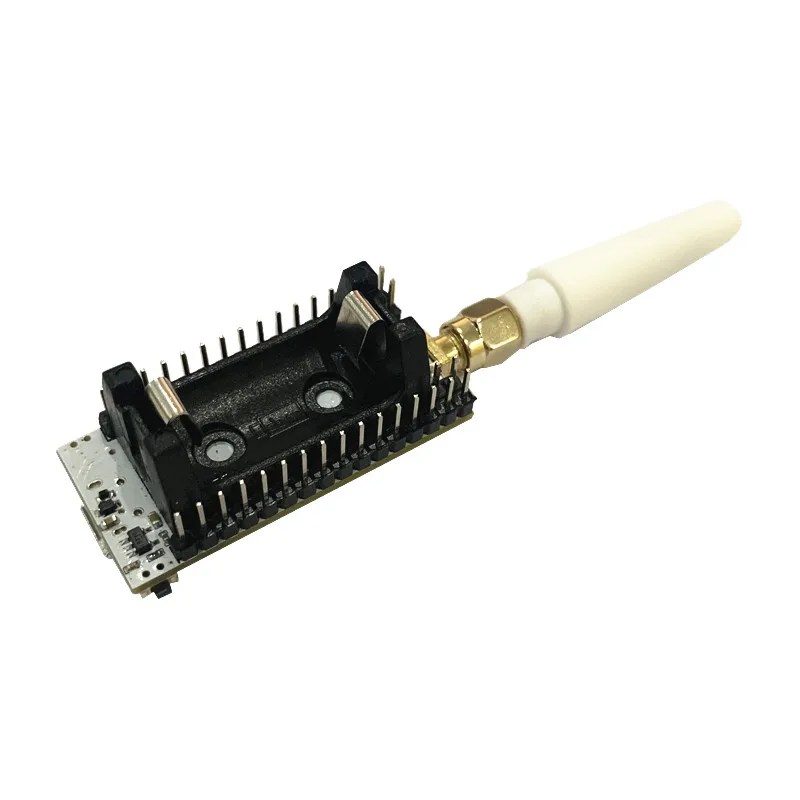

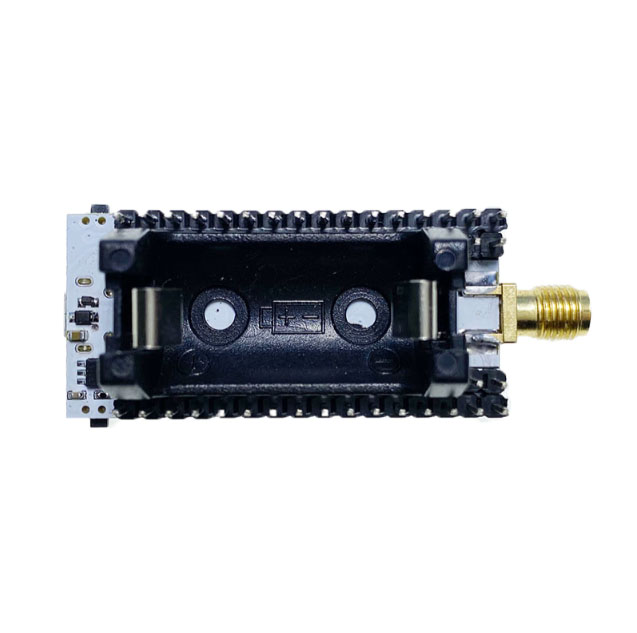

1/2 AA battery shell, use 1/2 AA Lithium chlorine sulfite battery (this battery can’t charge, but onboard USB / battery power automatic switching allows connect USB when the battery is assembled);
Micro USB interface with complete ESD protection, short circuit protection, RF shielding, and other protection measures;
Integrated CP2102 USB to serial port chip, convenient for program downloading, debugging information printing;

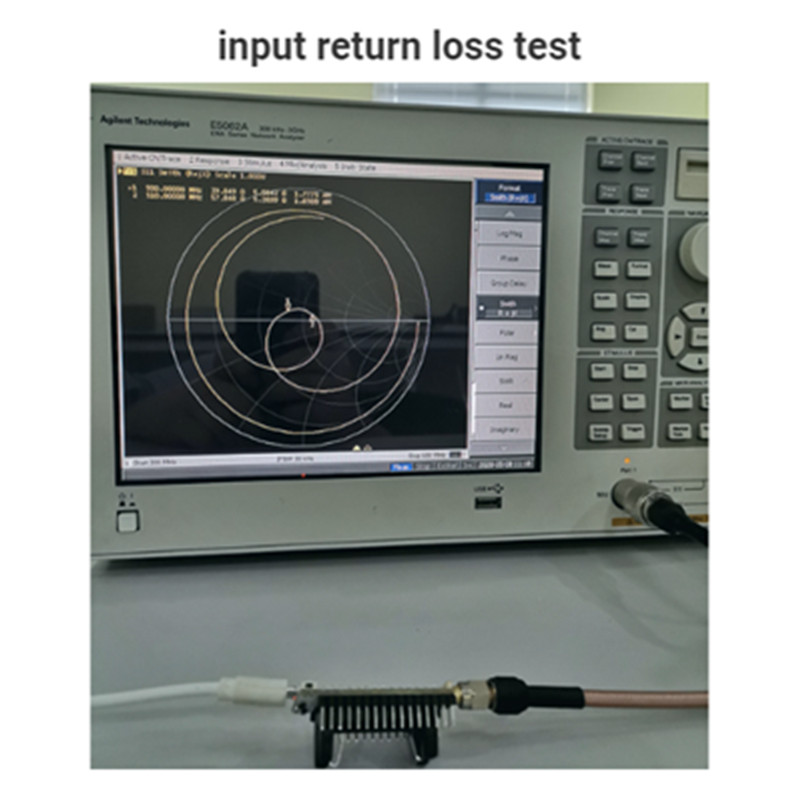

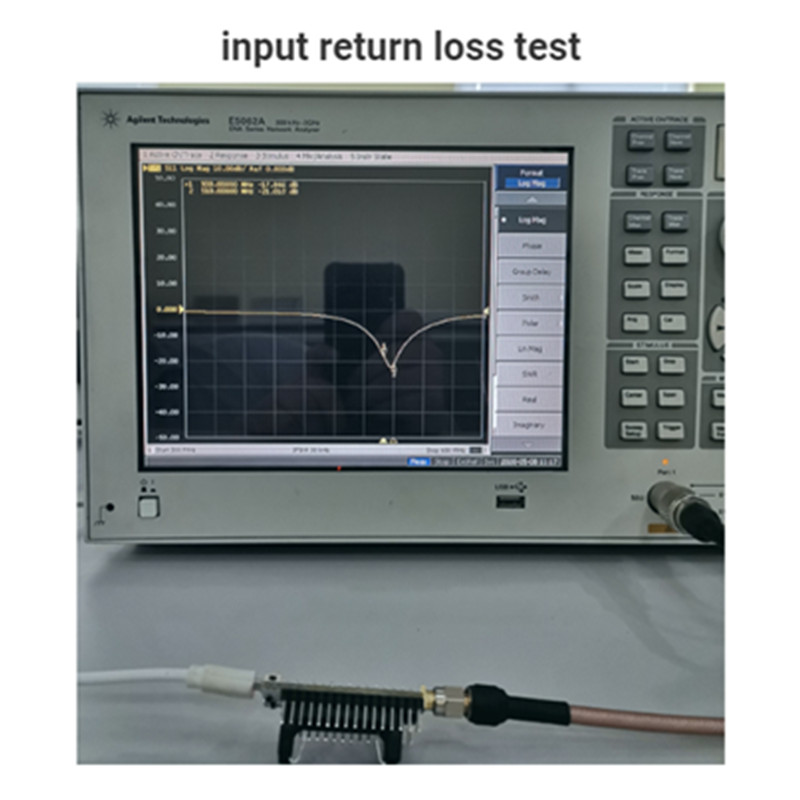

Good impendence matching and long communication distance.
![](https://i0.wp.com/ae03.alicdn.com/kf/S1fac9376cd4643bc885968c794cfb191S.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/S289b9695965e420e8e6f221033c78b01W.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/S19dd154721364e0ead9e5582d5c4728fR.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/Sd6be54c6225e4bec982019a445408e651.jpg?w=1170&ssl=1)
Technical Parameters
MCU:ASR6502 (48 MHz ARM® Cortex® M0+ MCU, 128KB FLASH, 16KB SRAM )
LoRa Chip:ASR6502 (Internal assembled Semtech® LoRa® Transceiver SX1262)
LoRa working band:EU_433, CN_470_510, EU_863_870, US_902_928

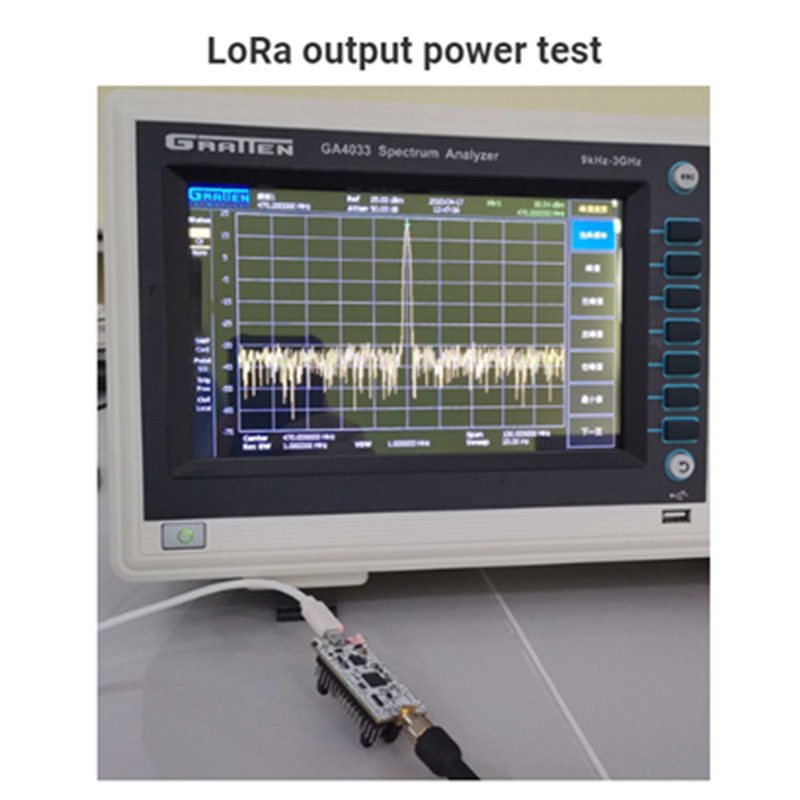

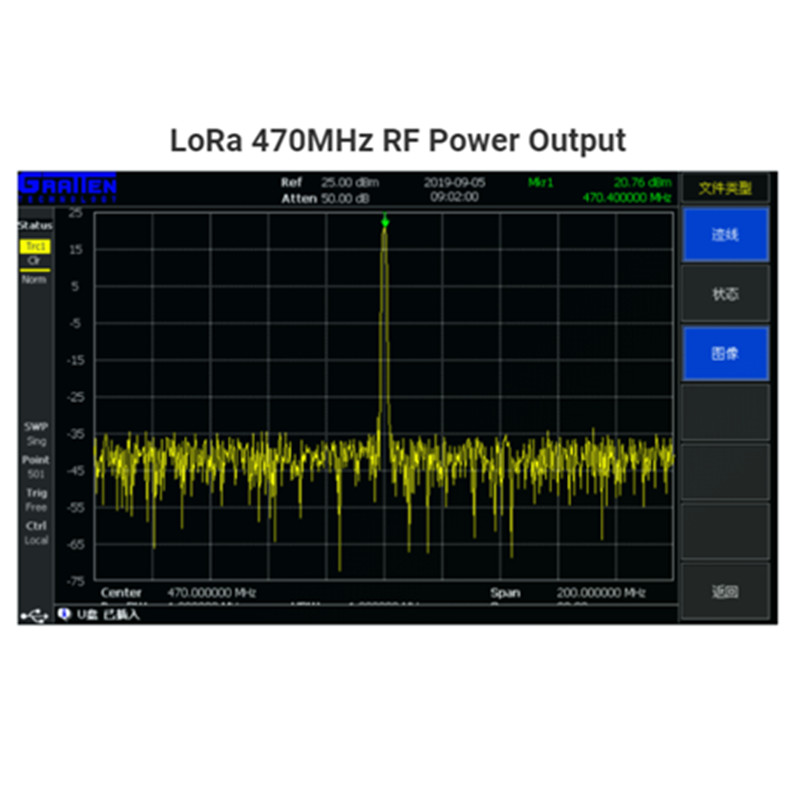

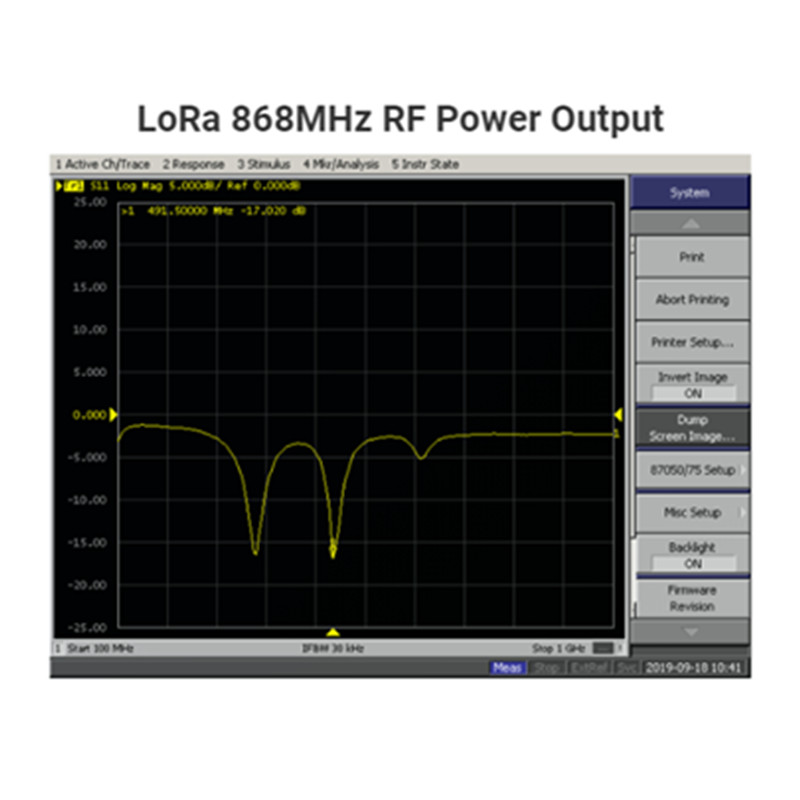

LoRa maximum output power:22 ± 1dB

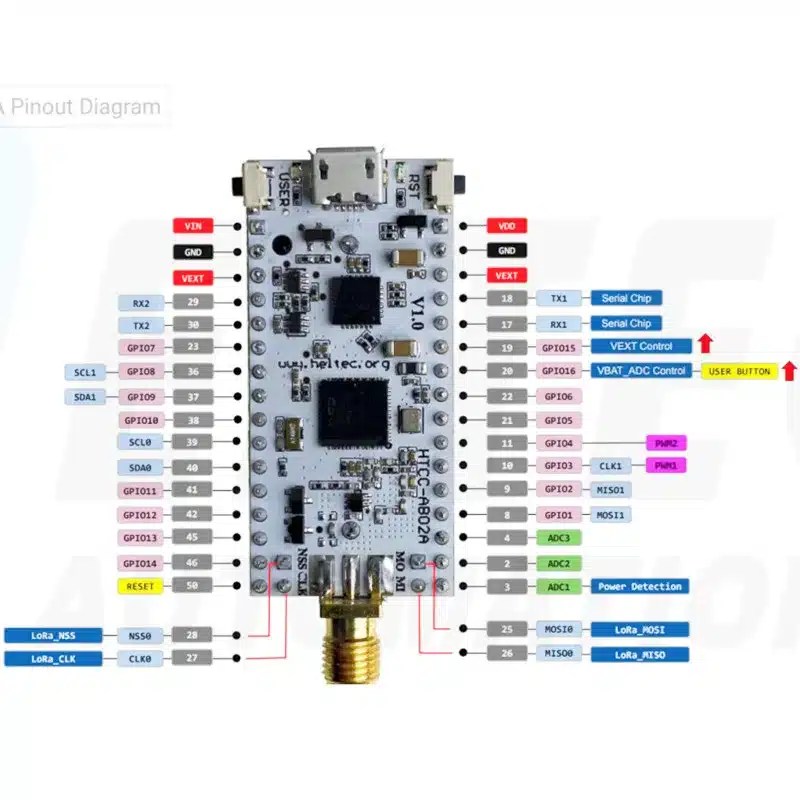

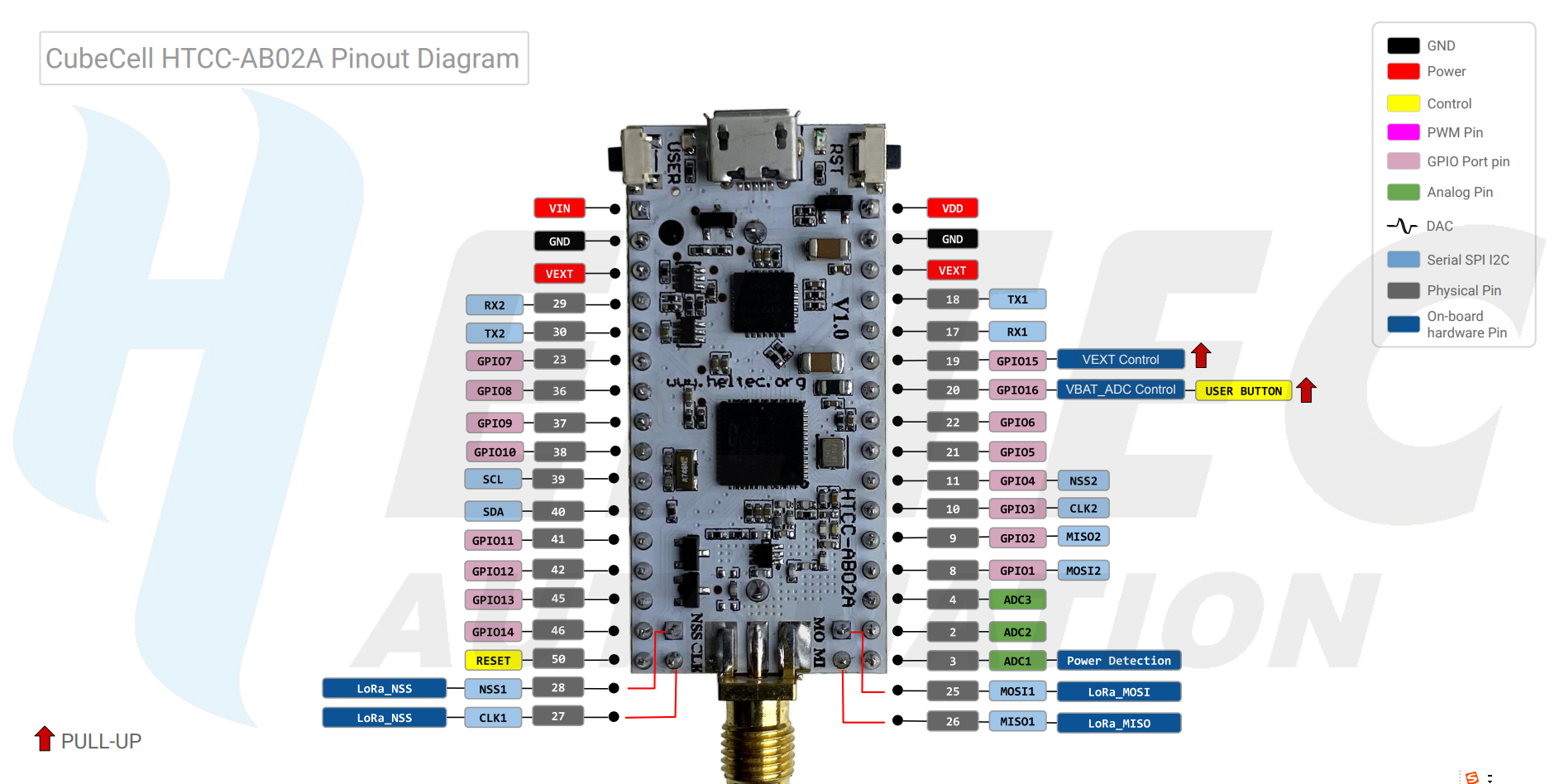

Hardware resources:
UART x 2; SPI x 1; I2C x 1; SWD x 1; ADCx 3; COMP x 1;
12 – bits ADC; 8 – channel DMA engine;
14 x GPIO;
FLASH:128KB internal FLASH
Interface:Micro USB x 1; LoRa (SMA) x 1
Size:56.6 x 24 x 20 mm
USB-UART bridge:CP2102
Battery Type:3.7V Lithium (SH1.25 x 2 socket)
Battery detection circuit:√
External device power control(Vext):√

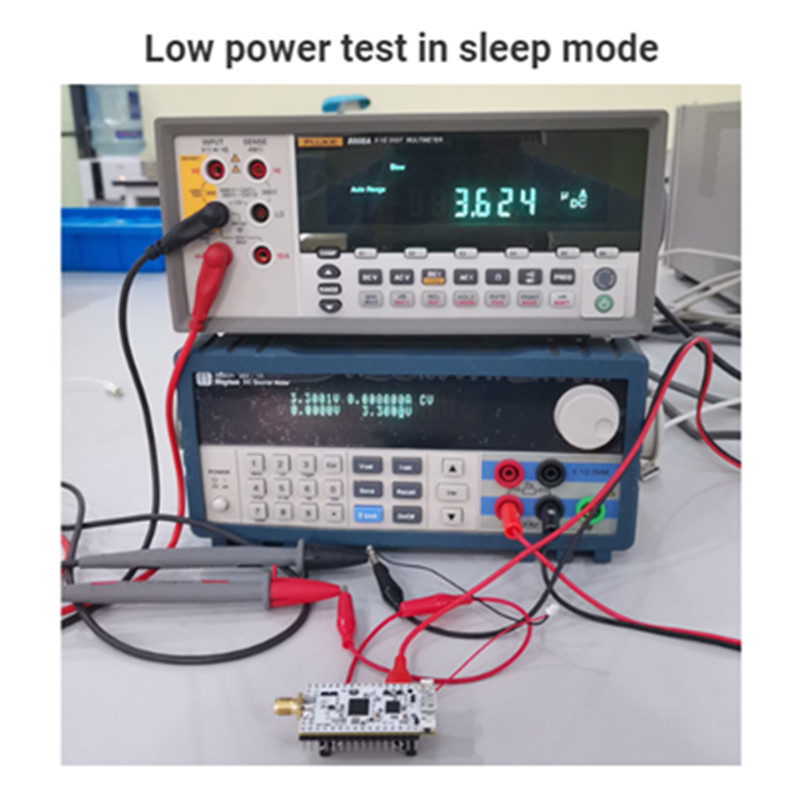

Low power design: Deep Sleep 3.5uA
![](https://i0.wp.com/ae03.alicdn.com/kf/S1d487922ea4d49c8885d35c164ad1a6fM.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/S74e6ec0abe754074897dfecce47c25a5F.jpg?w=1170&ssl=1)
Scene application
![](https://i0.wp.com/ae03.alicdn.com/kf/Sa99ee8b9f20d4f64800dd8ae83842ae7v.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/S8054eab45b4a42738ee26f319d11e9807.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/S875454971d6349ebb5bbdc91f87a7b55Q.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/S610832b24dfd4936b6b51cd5f5cdcb195.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/Saa30602315eb4bb4b081df095095f431a.jpg?w=1170&ssl=1)
![](https://i0.wp.com/ae03.alicdn.com/kf/Sa0edc3bfaec44a679f8fc5f5d3a8ca42T.jpg?w=1170&ssl=1)
