WHD48-11 Smart Temperature and Humidity Controller

Specifications

• Measuring Range:
  • Temperature: -40.0°C to +99.9°C
  • Humidity: 20%RH to 90%RH
• Accuracy:
  • Temperature: ±1°C
  • Humidity: ±5%RH
• Analog Output:
  • DC 420mA or DC 020mA
• Set Range of Controlling Parameters:
  • Heating for Temperature Rising: -40.0°C to +40.0°C
  • Blowing for Temperature Decreasing: 0.0°C to 99.9°C
  • Humidity Control: 20%RH to 90%RH
• Contact Capacity:
  • 5A/AC250V
• Communication:
  • RS485 (Modbus-RTU Protocol)
• Auxiliary Power Supply:
  • Working Range: AC 85265V, DC 100350V
  • Basic Power Consumption: ≤0.8W
  • Relay Power Consumption (Each Channel): ≤0.7W
• Insulation Resistance:
  • ≥100MΩ
• Service Life:
  • ≥50000 hours
• Environment:
  • Temperature: -10.0°C to +55.0°C
  • Humidity: ≤95%RH, without condensation and corrosive gas
  • Altitude: ≤2500 m

Accuracy Temperature ±1℃ Humidity ±5%RH Auxiliary power supply AC 85-265V, DC 100-350V Consumption Auxiliary power supply: Basic power consumption(≤0.8w) Relay power consumption(each channel≤0.7w)

Installation: Panel mountedDimension(L*W*H)： Pannel size (L×W): 48*48mm Cutout size (L×W): 45*45mm Housing (L×W×H): 44*44*86.7mm

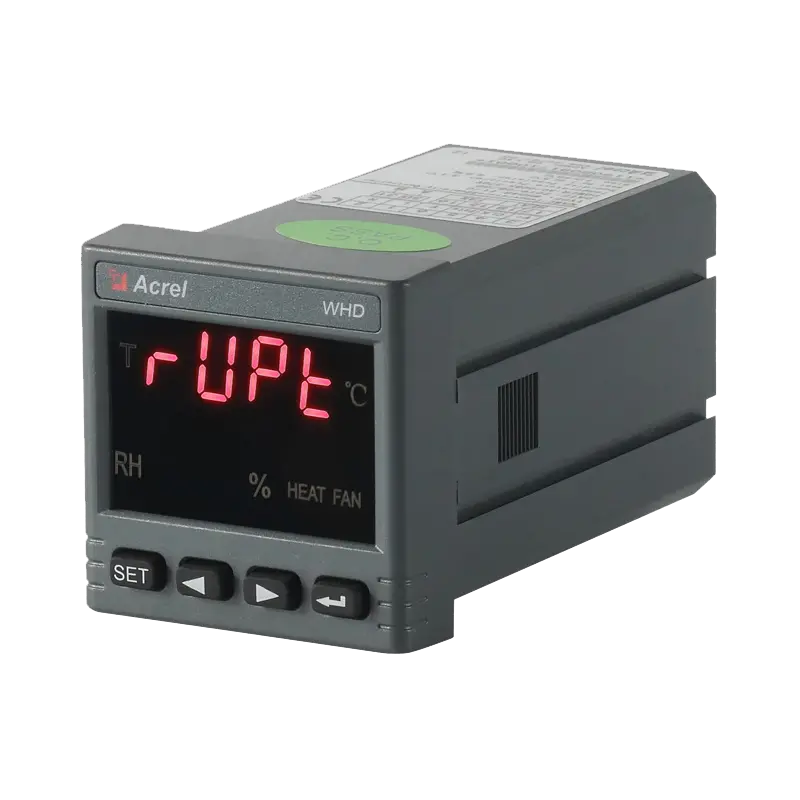

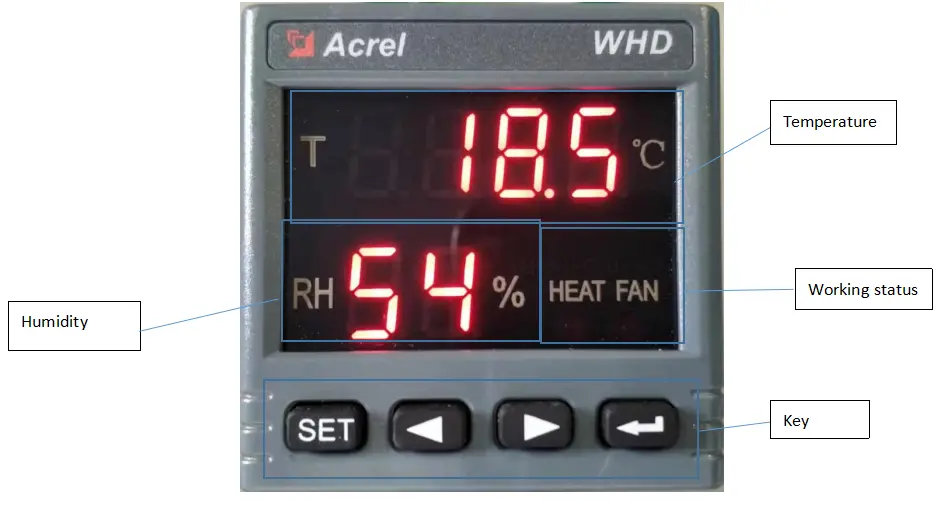

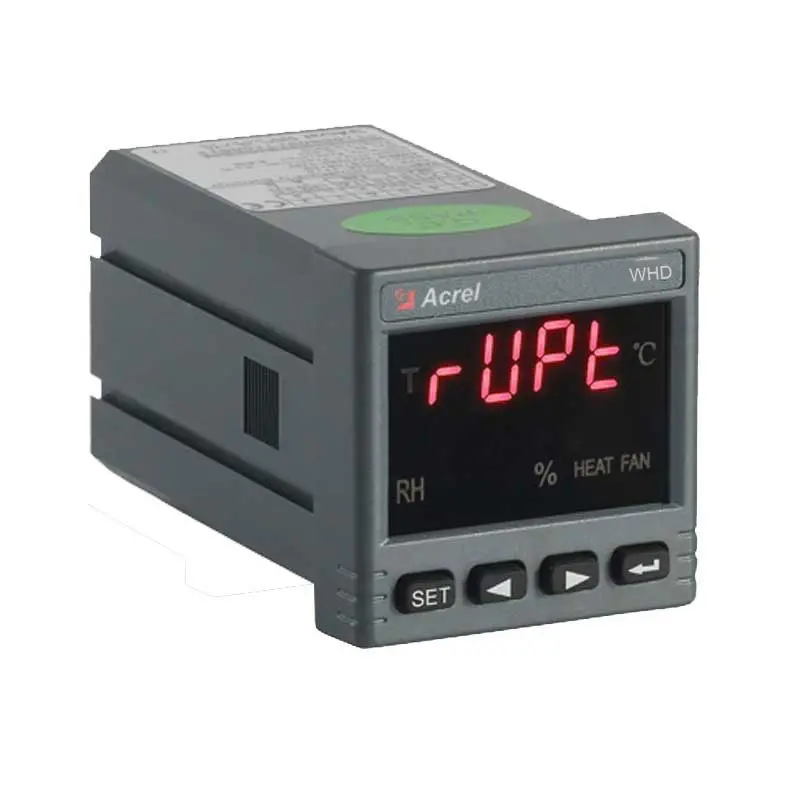

Appearance

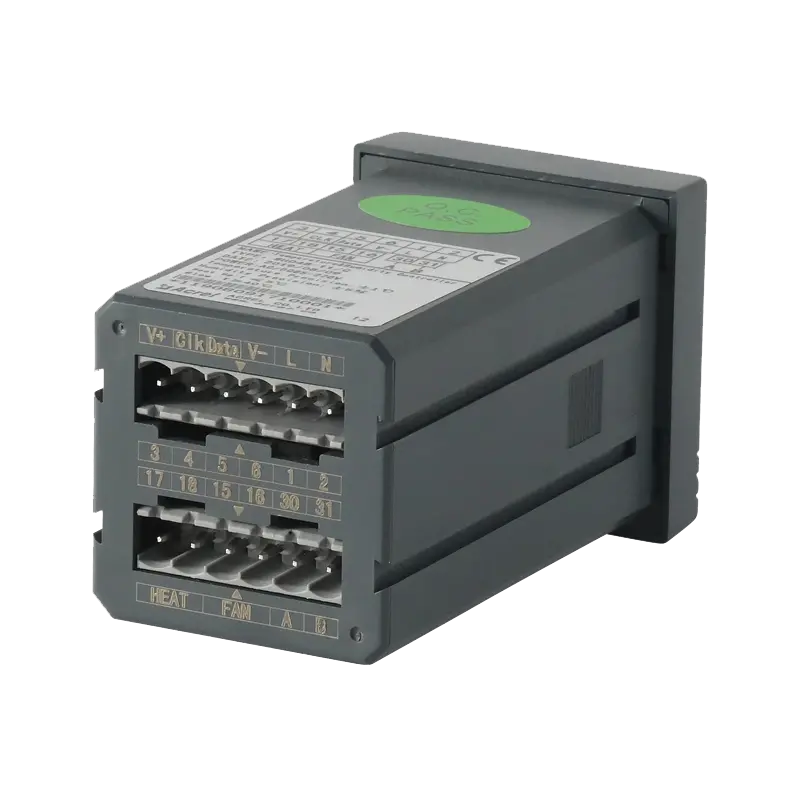

Wiring

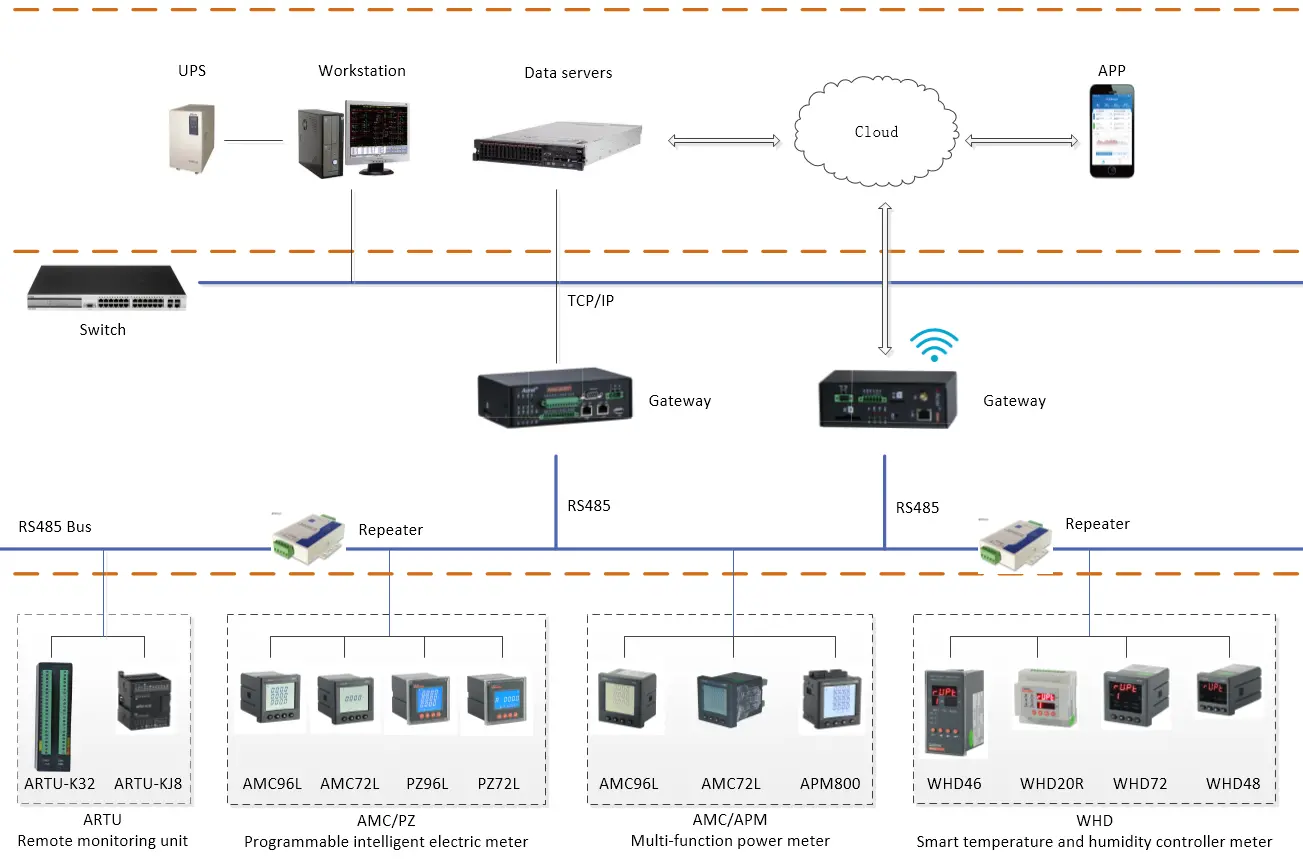

Typical connection
