Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station

ADW2XX rail type multi-circuit power meters are mainly used to measure the complete electrical parameters of multiple three-phase circuits. They can be connected to the current input of up to four three-phase circuits simultaneously. It can measure voltage and current, power, power factor, phase angle, unbalance, harmonics and other parameters.

Main features:

  • Monitoring: Up to 4 three phase circuits or 12 single phase circuits;
  • Rated voltage: AC 3x220V/380V;
  • Rated current: 5A, 100A, 400A or 600A AC (with external CTs);
  • Communication: RS485 (MODBUS-RTU);
  • LCD Display;
  • Standard and Certificate: CE;

  • Detail Information

    Type:Multi Circuit Energy MeterCommunication:RS485
    Installation:DIN Rail InstallationCertificate:CE
    Standard:IEC62052-11/IEC62053-21
    Highlight:

    3 phase wireless energy meter it multi channel wireless energy meter iot wireless energy meter



Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 0

1. Main model functions:



Auxiliary powerAC/DC 85～265V; Consumption≤10VA;
InputFrequency45～65Hz;
VoltageAC 3×220V/380V; Overload: 1.2 times of rated value (continuous);
2 times of rated value / 1s
Consumption: ≤ 0.5VA;
CurrentAC 5A,100A,400A,600A;(External opening transformer);
Overload: 1.2 times of rated value (continuous); 10 times of rated value / 1s;
Consumption: ≤ 0.5VA
Measurement AccuracyFrequency 0.05Hz;

Voltage,current: 0.5 level;

Active electric energy: level 1;

Reactive electric energy: level 2;

2-31st times harmonic accuracy: ± 1%;

FeaturesPulse OutputOutput mode: optocoupler pulse with open collector;
CommunicationRS485, Modbus-RTU; Baud rate 1200～38400;
SwitchingInputDry contact input,Built-in power supply;
 OutputOutput mode: Relay normally open contact output; contact rating: AC 250V/3A DC 30V/3A;
OutlineL*W*H(mm)72*97.7*71.5
EnvironmentWorking temperature-10℃~+45℃
Storage temperature-40℃~+70℃
Relative humidity≤95% No condensation
Altitude≤2500m



2. Expanded model functions:

Switch modulePower supplyRJ45 interface, DC 12V, power consumption ≤1W;
CommunicationRJ45 interface, Modbus-RTU protocol; (communication with the main body)
Switch inputDry contact input, built-in power supply;
Switch outputOutput mode: normally open contact output relay;

Contact capacity: AC 250V/3A DC 30V/3A;

Temperature measurement leak modulePower supplyRJ45 interface, DC 12V, power consumption ≤1W;
CommunicationRJ45 interface, Modbus-RTU protocol; (communication with the main body)
Temperature measurementStandard NTC temperature sensor, measuring range -20~100℃;
Leak measurementThe residual current transformer is connected, the measurement range is 10 ~ 3000 mA;
Measurement accuracyTemperature ±2℃, leak level 1;

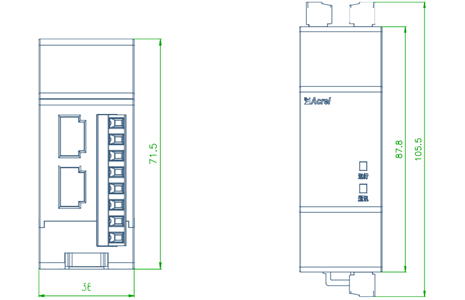

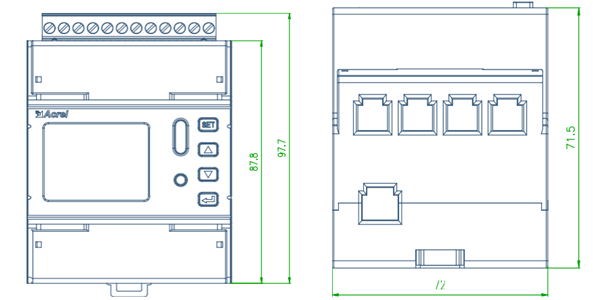

Dimensions





Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 1



Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 2

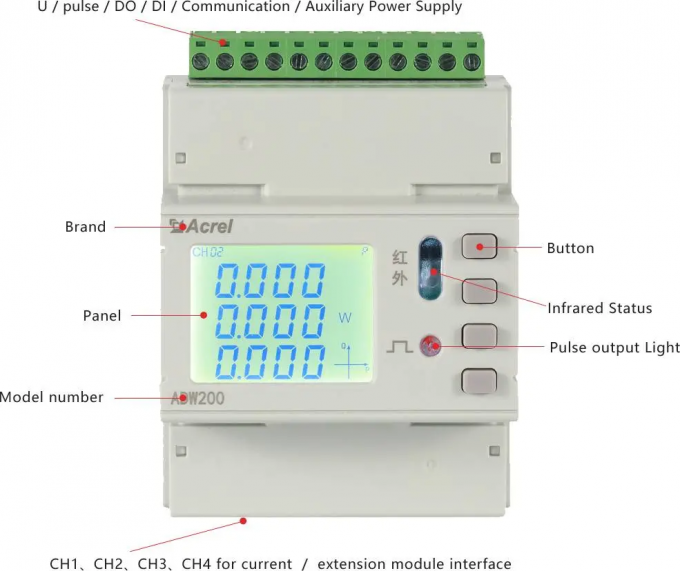

Front Panel

Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 3

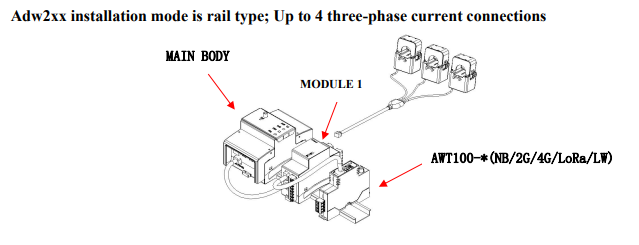

Guide Rail Installation



Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 4

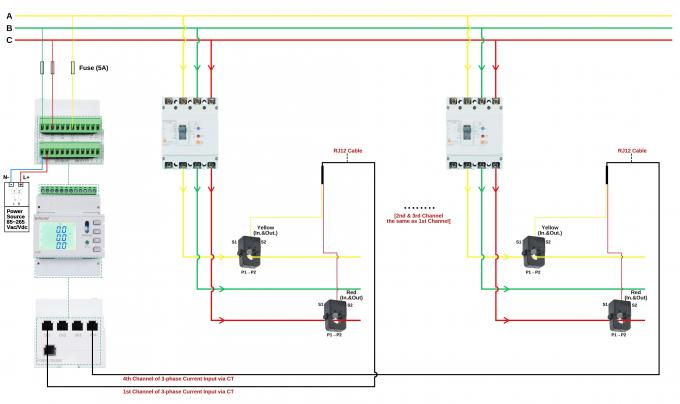

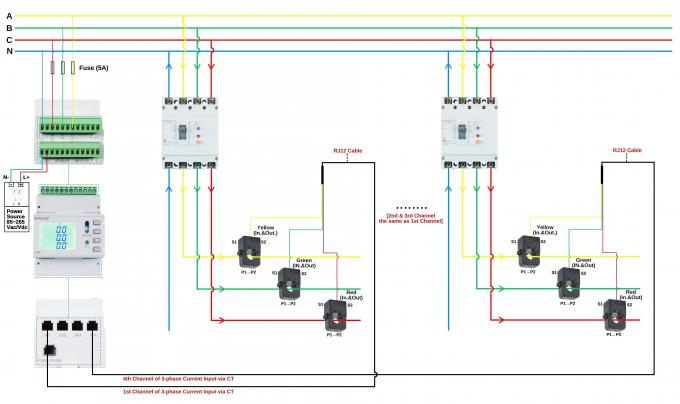

Wiring

Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 5

3P4W

Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 6

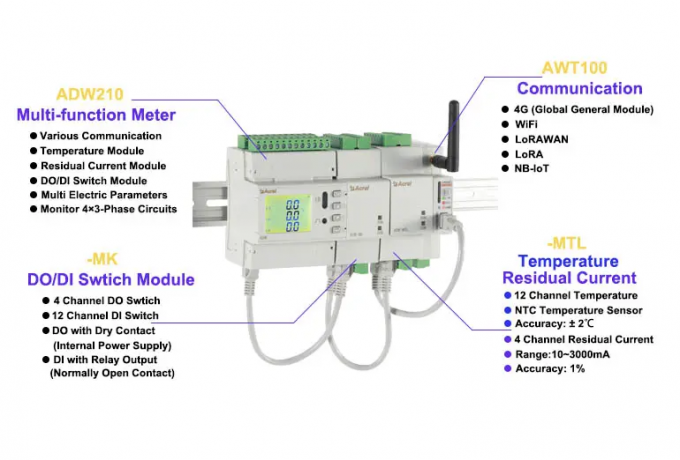

Optional modules



Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 7

External Module (MTL)

12 External NTC Temp. Measurement

4 Channels Residual Current Measurement



Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 8

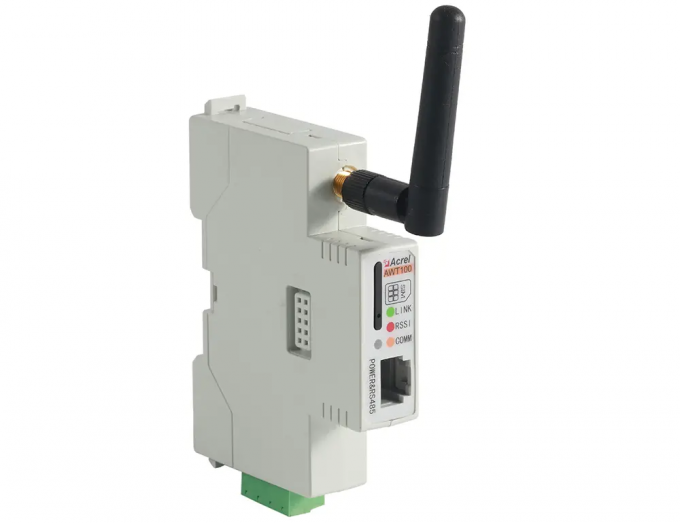

External Wireless Module(AWT100)

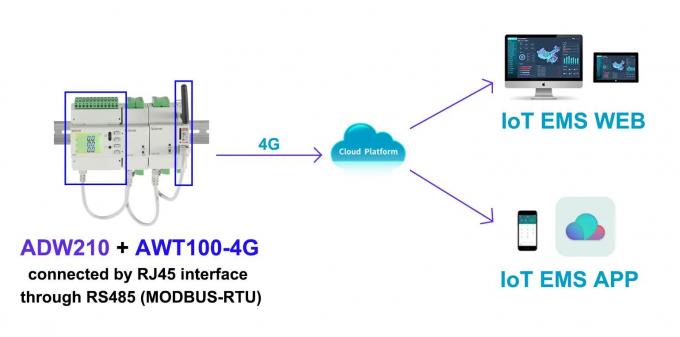

Downlink RS485; Uplink 4G, 2G, NB, Lora, LoraWAN, Ethernet, WiFi, GPS, Profibus

Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 9

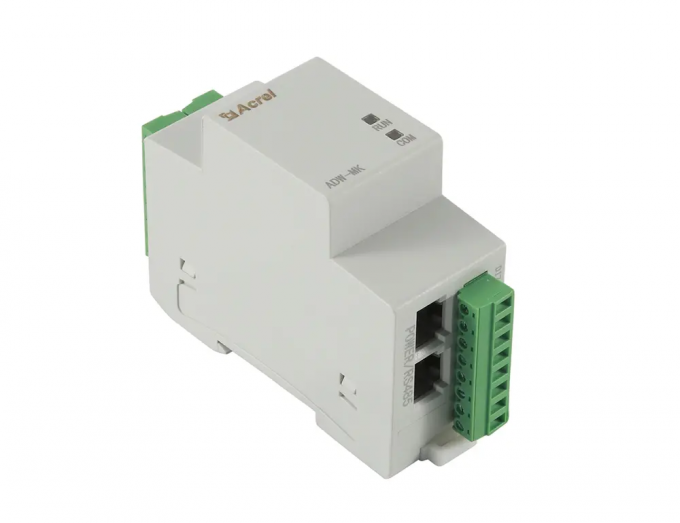

External Module(MK)

12 Channels DI + 4 Channels DO

Network

Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station 10

SKU: LKOTS00060 Category: Tag:

Brand

Acrel

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Acrel ADW210-D16-4S Multi Channel 3 Phase Wireless Energy Meter Iot With External Cts For Base Station”

There are no reviews yet.

Product Q&A

What is the Acrel ADW210-D16-4S used for?

It monitors electrical parameters for up to four 3-phase circuits, ideal for base stations.

Does this energy meter support wireless communication?

Yes, it's a wireless energy meter with IoT capabilities for remote monitoring.

What external CTs are compatible with the ADW210-D16-4S?

It supports 5A, 100A, 400A, or 600A AC current inputs via external CTs.
