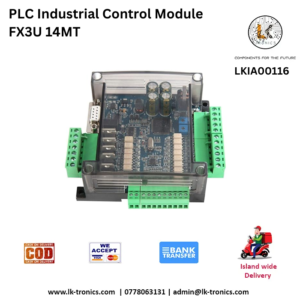

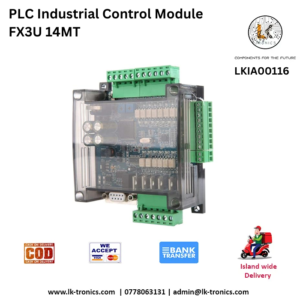

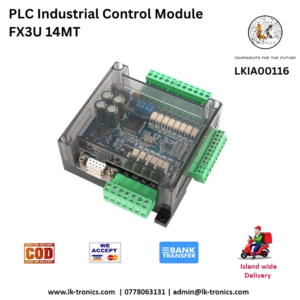

PLC Industrial Control Module FX3U 14MT

PLC Industrial Control Module FX3U 14MT

Specifications

• Compact size with stable and reliable performance

• High-speed processing suitable for industrial environments

• Supports text display panels and touchscreen HMIs

• Designed for continuous industrial automation applications

• Suitable for motor control, machine control, and process automation

Power Supply

• Supply Voltage: 24 V DC

Digital Input Specifications

• Number of Digital Inputs: 8 Points

• Input Voltage: 24 V DC

• Input Type: Opto-isolated

• Sensor Compatibility: NPN (Sink)

• Typical Input Terminals: X0 – X7

Digital Output Specifications

• Number of Digital Outputs: 6 Points

• Output Type: Transistor Output

• Output Wiring Type: NPN (Sink)

• Maximum Output Current: 1 A per point

• Typical Output Terminals: Y0 – Y5

Analog I/O Specifications

• Analog Inputs: 6 Channels (AD)

• Analog Outputs: 2 Channels (DA)

High-Speed Functions

• High-Speed Counter: 6 Channels, up to 12 kHz

• Pulse Output: 2 Channels, up to 100 kHz

Motion & Control Functions

• Floating-point operation supported

• Stepper motor control supported

• Pulse and direction output supported

Memory

• Program Memory Capacity: 8,000 Steps

Communication & Interface

• Communication Port: RS485

• Text Screen Connection: Supported

• Touchscreen HMI Connection: Supported

Programming

• Programming Software: GX Developer, GX Works2

Mechanical & Installation

• Installation Method: Fixed isolation column mounting

• Construction: Small body, industrial-grade design

I/O Summary

• Digital Inputs: 8 × 24 V DC (NPN compatible)

• Digital Outputs: 6 × Transistor (NPN Sink)

• Analog Inputs: 6 Channels

• Analog Outputs: 2 Channels

Typical Applications

• Industrial automation systems

• Machine and equipment control

• Motor and stepper control

• Sensor-based monitoring systems

Programming and Connections Configuration

FX3U Programming Configuration Manual
