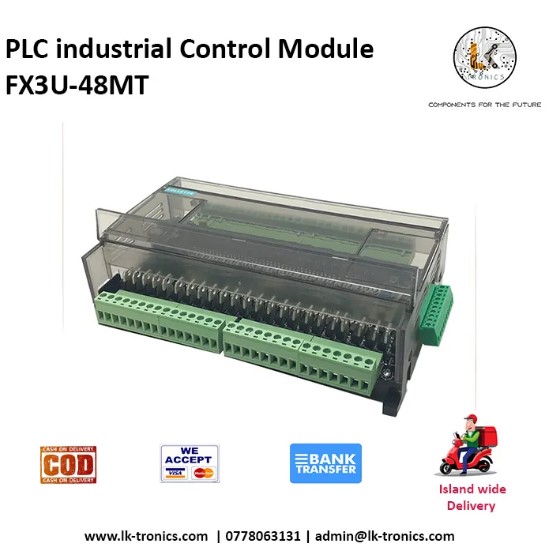

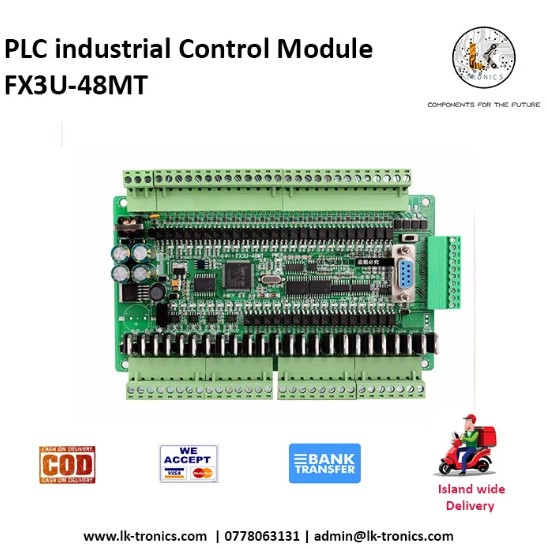

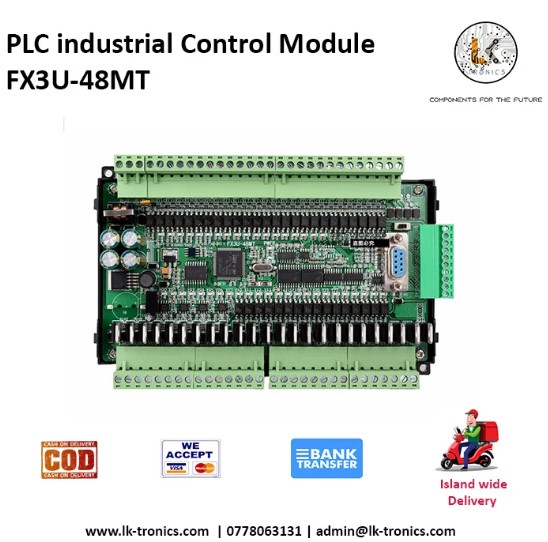

PLC Industrial Control Module FX3U-48MT

General Features

• Compact size with stable and reliable performance
• High-speed processing suitable for industrial environments
• Supports text display panels and touchscreen HMIs
• Designed for continuous industrial automation applications
• Suitable for motor control, machine control, and process automation

Power Supply

• Supply Voltage: 24 V DC

Digital Input Specifications

• Number of Digital Inputs: 24 Points
• Input Voltage: 24 V DC
• Input Type: Opto-isolated
• Sensor Compatibility: NPN (Sink)
• Typical Input Terminals: X0 – X27

Digital Output Specifications

• Number of Digital Outputs: 24 Points
• Output Type: Transistor Output
• Output Wiring Type: NPN (Sink)
• Maximum Output Current: 1 A per point
• Typical Output Terminals: Y0 – Y27

Analog I/O Specifications

• Analog Inputs: 6 Channels (AD)
• Analog Outputs: 2 Channels (DA)

High-Speed Functions

• High-Speed Counter: 6 Channels, up to 12 kHz
• Pulse Output: 4 Channels, up to 100 kHz

Motion & Control Functions

• Floating-point operation supported
• Stepper motor control supported
• Pulse and direction output supported
• Position control supported

Memory

• Program Memory Capacity: 8,000 Steps

Communication & Interface

• Communication Port: RS485
• Supports Modbus RTU communication
• Text Screen Connection: Supported
• Touchscreen HMI Connection: Supported

Programming

• Programming Software: GX Developer, GX Works2

Mechanical & Installation

• Installation Method: Fixed isolation column mounting
• Construction: Small body, industrial-grade design

I/O Summary

• Digital Inputs: 24 × 24 V DC (NPN compatible)
• Digital Outputs: 24 × Transistor (NPN Sink)
• Analog Inputs: 6 Channels
• Analog Outputs: 2 Channels

Typical Applications

• Industrial automation systems
• Machine and equipment control
• Packaging machinery
• Conveyor systems
• Motor and stepper motor control
• Sensor-based monitoring systems
• Process automation
• Positioning and motion control
• Production line automation
