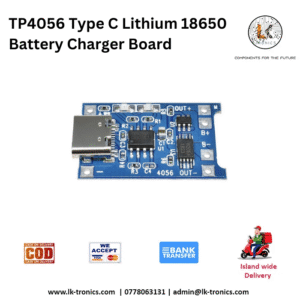

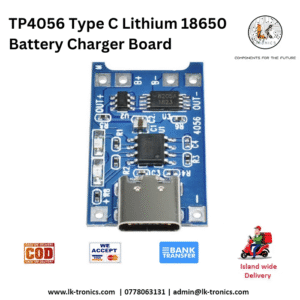

TP4056 Type C Lithium 18650 Battery Charger Board

TP4056 Type C Lithium 18650 Battery Charger Board

Specifications

• Model Number: TP4056 Type-c
• Operating Temperature: Not Specified
• Dissipation Power: Not Specified
• Supply Voltage: 5V
• Condition: New
• Type: Voltage Regulator
• Brand Name: Elanzeme
• Origin: Mainland China
• Supply Voltage: 5V
• Dissipation Power: 1A

How to use:

1. 1. This shot the ball. The Type-C master and the +-pad of its side are the power input, and the 5V input voltage, B + lithium battery positive plate, and B-lithium battery negative electrode.
2. 2. OUT +, OUT – Take the load, such as moving the roll-off board to is negative or other load and Connect the battery to B +, B-, and insert the phone charger into the USB female seat, The red light is on charging, blue light is bright.
3. 3. When the input is input, the current is obtained from the power supply output.
4. 4. If no power is not connected, the current is obtained from the battery and the battery voltage is lower than 2. 5V, the output is automatically turned off.

Precautions:
1. When you first access the battery, you may have an output voltage output without voltage, you need to access the 5V charge and activate the protection circuit on the power input.
2. When powering with a mobile phone charger, you must output 1A or more, otherwise, it may not be charged normally.
3. The load on the OUT side should be disconnected when charging.

Note: The module only works with a USB to USB-C, it doesn’t support USB-C to USB-C charge
