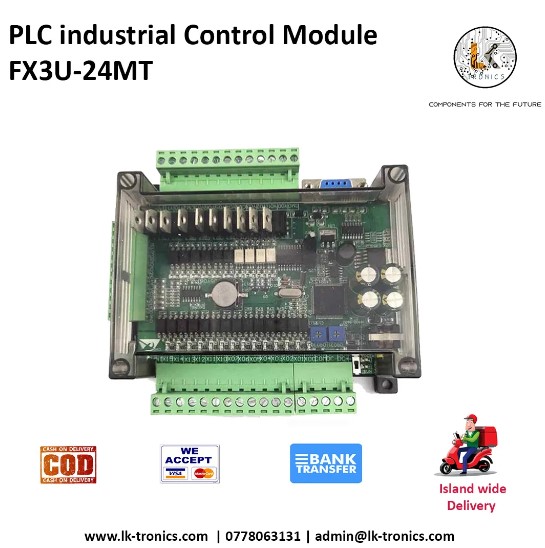

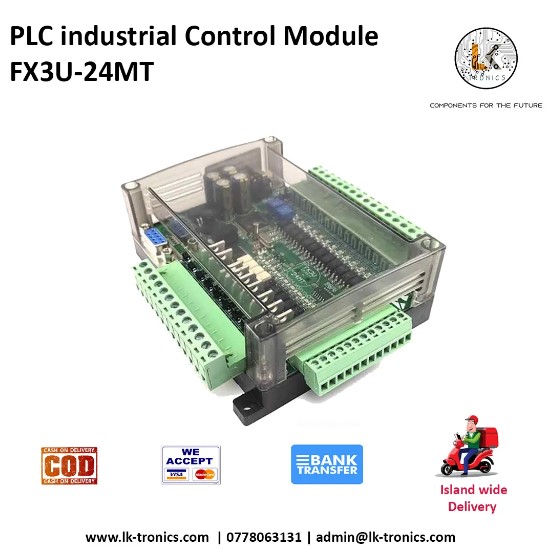

PLC Industrial Control Module FX3U-24MT

Description: High-performance PLC designed for industrial automation with stable operation, high-speed processing, and support for motion control, machine control, and process automation. Compatible with text displays and touchscreen HMIs.

Power Supply:

• Supply Voltage: 24 V DC

Digital Inputs:

• Number of Inputs: 14 Points

• Input Voltage: 24 V DC

• Input Type: Opto-isolated

• Sensor Compatibility: NPN (Sink) supported

• Typical Input Terminals: X0 – X13

Digital Outputs:

• Number of Outputs: 10 Points

• Output Type: Transistor Output (MT Type)

• Output Wiring Type: NPN (Sink)

• Maximum Output Current: 0.5–1 A per point (model dependent)

• Typical Output Terminals: Y0 – Y9

High-Speed Functions:

• High-Speed Counter: Up to 6 Channels, Maximum Frequency 60 kHz (single-phase, model dependent)

• Pulse Output: 2 Channels, Maximum Frequency 100 kHz

Motion & Control Functions:

• Stepper motor control supported

• Pulse / Direction and CW / CCW control supported

• Floating-point arithmetic supported

Analog I/O:

• Built-in Analog I/O: Not available

• Analog Expansion Modules: Supported (FX3U series AD/DA modules)

Memory:

• Program Memory Capacity: 64,000 Steps

Communication & Interface:

• Built-in Communication: Programming port

• Optional Communication: RS232, RS485, Ethernet (via expansion modules)

• Text Display Connection: Supported

• Touchscreen HMI Connection: Supported

Programming:

• Programming Software: GX Developer, GX Works2

Expansion Capability:

• Supports FX3U series expansion I/O modules

• Supports analog, temperature, positioning, and communication modules

Mechanical & Installation:

• Mounting Method: DIN rail or panel mounting

• Construction: Compact industrial-grade housing

I/O Summary:

• Digital Inputs: 14 × 24 V DC (NPN compatible)

• Digital Outputs: 10 × Transistor (NPN Sink)

• Analog I/O: Via expansion modules

Typical Applications:

• Industrial automation systems

• Packaging and conveyor machines

• Motor and stepper control

• Process monitoring and control
