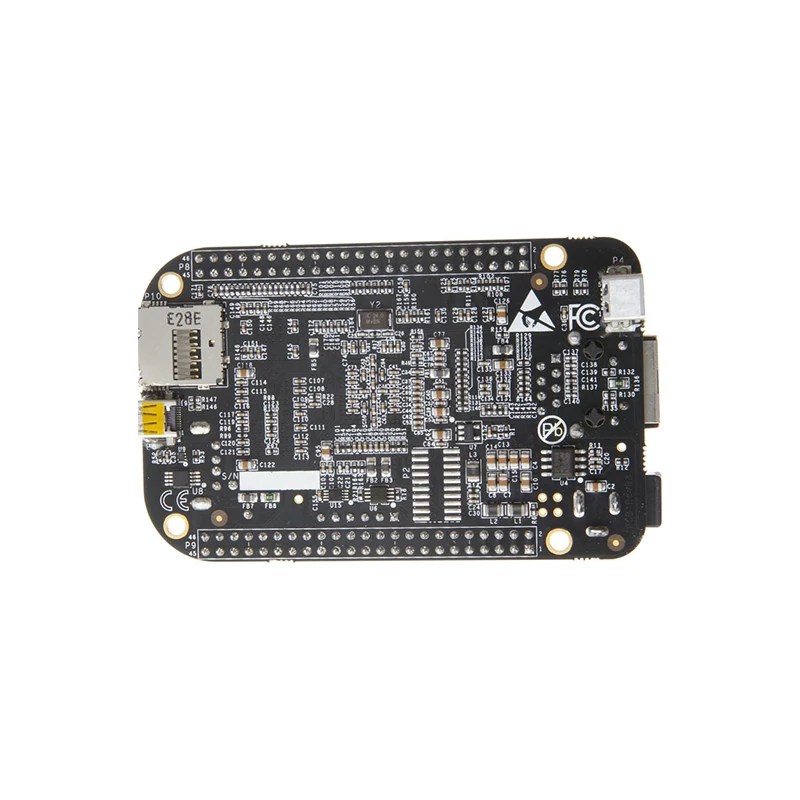

Black TI AM335x Cortex-A8 Development BB-Black Rev.C

The Black TI AM335x Cortex-A8 Development BB-Black Rev.C is a powerful and versatile development board designed for embedded applications. Powered by the TI AM335x Cortex-A8 processor, this board offers high performance and low power consumption, making it ideal for a wide range of applications. With its compact size and extensive connectivity options, including USB, Ethernet, HDMI, and GPIO, this development board provides flexibility and ease of integration. It also features onboard storage and memory, allowing for seamless development and testing of software applications. Whether you are a hobbyist or a professional developer, the Black TI AM335x Cortex-A8 Development BB-Black Rev.C is a reliable and efficient choice for your embedded system projects.

  • Interface: TF Card Support,2 x USB2.0
  • Intergrated Feature: 10/100Mbps
  • ROM Capacity: 4GB
  • Memory Capacity: 1GB
  • Model Number: BB-black
  • Demo Board Type: ARM
  • Brand Name: ACTION PI
  • Origin: DE(Origin)



  • Processor:TI Sitara AM335x, 1GHz, 2000 MIPS
    • 1 GHz ARM ® Cortex-A8
    • SGX530 Graphics Engine
    • Programmable Real-Time Unit Subsystem
  • Memory
    • SDRAM: 512MB DDR3L 800MHZ
    • eMMC Flash:
      • Rev B: 2GB (discontinued)
      • Rev C: 4GB (as of 2014.05.21)
  • SD / MMC Connector for microSD
  • Power management:TPS65217CPMIC is used along with a separate LDO to provide power to the system
  • Debug Support: Optional Onboard 20-pin CTI JTAG, Serial Header
  • Power Source
    • miniUSB USB or DC Jack
    • 5VDC External Via Expansion Header
  • Connectivity
    • High speed USB 2.0 Client port: Access to USB0, Client mode via miniUSB
    • High Speed USB 2.0 Host port: Access to USB1, Type A Socket, 500mA LS / FS / HS
    • Serial Port:. UART0 access via 6 pin 3.3V TTL Header Header is populated
    • 10/100M Ethernet (RJ45)
  • User Input / Output
    • Reset Button
    • Boot Button
    • Power Button
    • LED power indicator
    • 4 user configurable LEDs
  • Video / Audio Interfaces
    • HDMI D type interface
    • LCD interface
    • Stereo audio over HDMI interface
  • Expansion Interfaces
    • LCD, UART, eMMC
    • ADC, I2C, SPI, PWM
  • Operating Power:5V 0.35A
  • Board Size:3.4 x 2.1



The Hardware Dimensions



The System Block Diagram
