VFD Inverter VFD 0.75KW1.5KW2.2KW Frequency Inverter

VFD Inverter VFD 0.75KW1.5KW2.2KW Frequency Inverter 1P 3P 220V 380V Output Frequency Converter Variable Frequency Drive SUSWE

320 series frequency converter is a multi-functional low-noise voltage vector & V/F control small universal frequency converter .It realizes the fast response and accurate control of the torque, carries on the speed regulation movement with the extremely high control precision, increases the motor parameter automatic tuning, the automatic control and the torque control on-line switch,the torque tracking.It has built-in PID controller, simple PLC, 17 kinds of fault monitoring, rich I/O terminal and a variety of speed setting methods, which can meet the requirements of various loads on the drive control

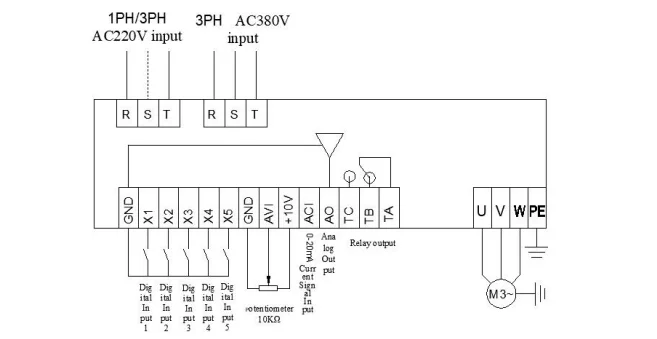

3-phase TO 3-phase：320 series VFD   Three-phase 380V input & Three-phase 380V output

Equipment input side connected to three-phase power supply,Equipment output side connected to three-phase motor.

1-phase TO 3-phase：320 series VFD   Single-phase 220V input & Three-phase 220V output

Equipment input side connected to single-phase power supply,Equipment output side connected to three-phase motor(Guarantee the torque,motor connection changed from Y to △)

3-phase TO 3-phase：320 series VFD Three-phase 220V input & Three-phase 220V output

Equipment input side connected to single-phase power supply,Equipment output side connected to three-phase motor(Guarantee the

torque,motor connection changed from Y to △)
