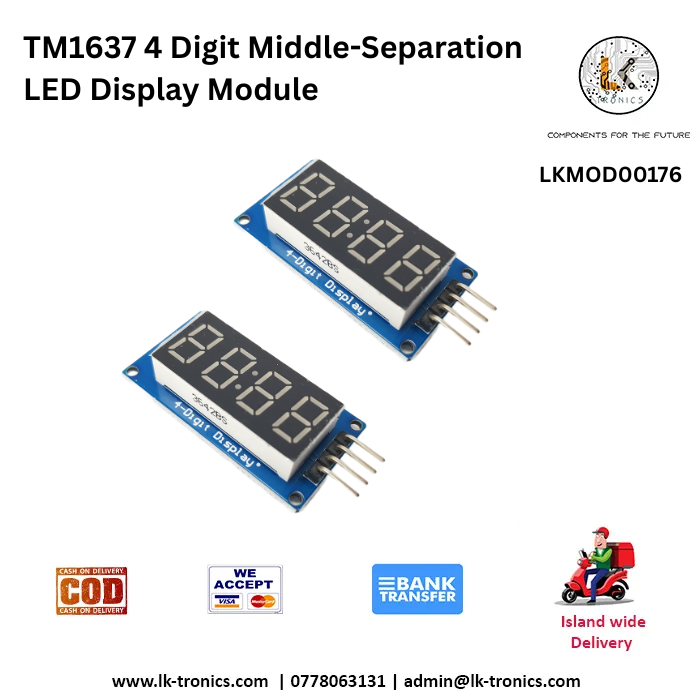

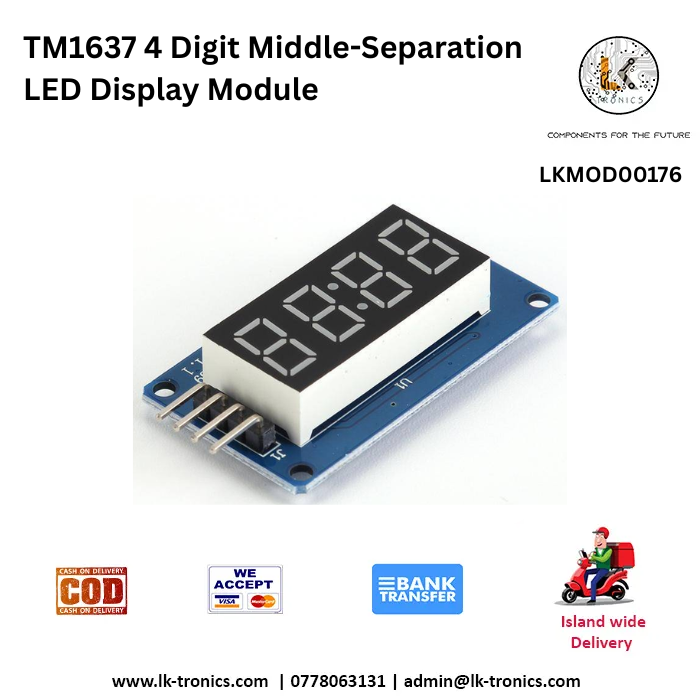

TM1637 4 Digit Middle-Separation LED Display Module

specifications

• Display Type: 4-Digit, 7-Segment LED Display

• Display Format: Four Numeric Digits with Central Colon Separator

• Operating Voltage: 3.3–5 V DC (module dependent)

• Communication Interface: 2-Wire Serial Interface

• Control Pins: CLK (Clock), DIO (Data)

• Power Connections: VCC, GND

• Digit Height: Approximately 0.36 inch (9.14 mm)

• Module Dimensions: Approximately 42 × 24 mm (model dependent)

• Applications: Digital Clocks, Timers, Counters and Numeric Display Systems

Pin configuration
