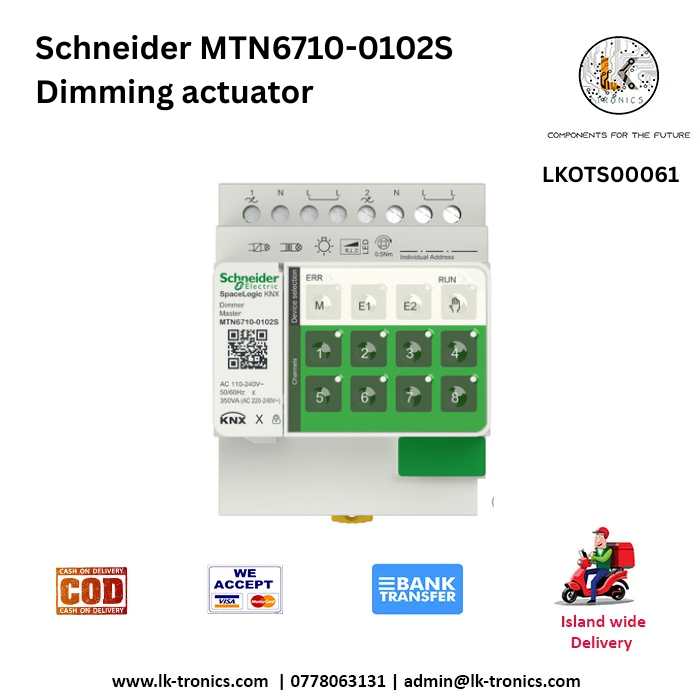

Schneider MTN6710-0102S dimming actuator


LKOTS00061

To order please contact 076 77 87 103

Add to Quote

Schneider

Schneider MTN6710-0102S Dimming actuator, SpaceLogic KNX, Universal, 230V, white

Schneider MTN6710-0102S dimming actuator Universal Dimming Actuator 230V (MTN6710-0102) is an intelligent, high-reliability DIN-rail lighting control module engineered for commercial, luxury residential, and hospitality KNX building automation systems. Designed to deliver smooth, flicker-free dimming, this universal actuator automatically detects and optimizes its dimming curve for a wide range of connected lighting loads.

Equipped with advanced microprocessor control, the unit supports both trailing-edge (reverse phase control) and leading-edge (forward phase control) methods. Whether regulating modern retrofit dimmable LEDs, 230V incandescent lamps, low-voltage halogen fixtures with electronic transformers, or conventional inductive ballasts, the MTN6710-0102 ensures silent acoustic operation, soft-start lamp preservation, and seamless integration into the KNX twisted-pair (TP) bus ecosystem.

Key Features & Benefits

  • Automatic Load Detection: Intelligently identifies capacitive, inductive, and resistive lighting loads on startup and selects the optimal dimming mode (trailing-edge or leading-edge) to eliminate hum and lamp flicker.

  • Optimized for Modern LED Fixtures: Features fine-tuned minimum/maximum brightness threshold settings and customizable dimming curves, solving low-end ghosting, strobing, and pop-on issues common with low-wattage dimmable LED lamps.

  • Comprehensive Hardware Protection: Integrated electronic safeguards against short circuits, overloads, and thermal over-temperature with automated reset and error telemetry reported directly over the KNX bus.

  • Soft-Start & Soft-Stop Operation: Gradually ramps lighting levels up and down to extend bulb service life and deliver premium architectural transitions.

  • Advanced KNX Software Functions: Programmed via ETS (Engineering Tool Software) with support for 8-bit / 1-bit scene recall, staircase timer functions with pre-warning dim-down, forced operation, burn-in routines for new fluorescent/LED fixtures, and real-time status feedback.

Specifications

Main
RangeSpaceLogic KNX
Product or component typeDimming actuator
Operating modeKNX bus system
Bus typeKNX
Power supply input current7.5 mA



Complementary
total number of 18 mm modules4
Mounting supportDIN rail
[Ue] rated operational voltage100/240 V
Network frequency50…60 Hz
Number of outputs2
Load typeLight: 25…350 VA at 230 V
Width72 mm
Height90 mm
Depth67 mm
Colour tintWhite



Environment
IP degree of protectionIP20

VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

SKU: LKOTS00061 Category: Tag:

Brand

Schneider Electric

schneider electric is Provider of energy and automation digital solutions for efficiency and sustainability. Schneider combines world-leading energy technologies, real-time automation, software and services into integrated solutions for Homes, Buildings, Data Centers, Infrastructure and Industries.
Schneider

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Schneider MTN6710-0102S dimming actuator”

There are no reviews yet.

Product Q&A

What is the power supply for this dimming actuator?

It operates on a 100/240 V rated operational voltage, suitable for 230V systems.

How many outputs does the MTN6710-0102S have?

This dimming actuator features two outputs, supporting various lighting loads.

Is this Schneider dimming actuator compatible with KNX systems?

Yes, it is a SpaceLogic KNX product, fully integrated with KNX bus systems.
