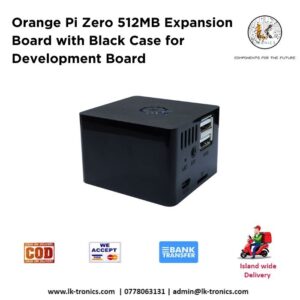

Orange Pi Zero and Expansion Board with Black Case

Orange Pi Zero and Expansion Board with Black Case for Development Board

specification:

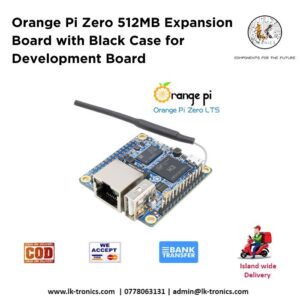

Orange Pi Development Board

• CPU: H3 Quad-core Cortex—A7 H.265/HEVC 4K
• GPU: Mali400MP2 GPU @600MHz, Supports OpenGL ES 2.0
• Memory (SDRAM): 256MB/512MB DDR3 (256MB is the Standard version)
• Onboard Network: 100M/10M Ethernet RJ45 (POE is default off )
• Onboard WIFI: XR819, IEEE 802.11 b/g/n
• Onboard Storage: 10class TF Card (Max64GB), 2MB SPI Flash
• Video Outputs: Supports external board via 13pins
• Source: USB OTG can supply power
• Power: One USB 2.0 HOST, one USB 2.0 OTG
• USB 2.0 Ports:
• Buttons: Power button
• Low-level peripherals: GPIO(1×3) 26 Pins Header 13 Pins Header with 2x USB, IR pin, AUDIO(MIC, AV)
• LED: Power led & Status led
• Supported OS: Android, Ubuntu, Debian, Armbian
• Interface definition: UART, ground
• Product size: 46mm x 48mm
• Weight: 26g

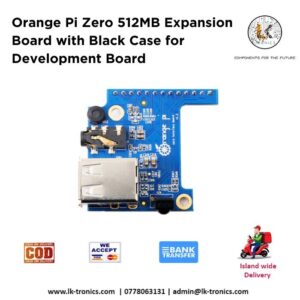

Orange Pi Expansion Board

• Interface: TF Card Support, USB OTG
• Processor Brand: Allwinner Integrated Feature: 10/100Mbps, WiFi 802.11b/g/n
• ROM Capacity: None
• Memory Capacity: 512MB
• Model Number: Orange Pi Zero LTS
• Demo Board Type: ARM
• Brand Name: SZCLX
• Origin: Mainland China
• Certification: CE, FCC
• Application: Computer/ Wireless serve/ Games
• Audio Input: MIC
• Video Outputs: Supports external board via 13pins
