OLED Display Module White I2C 0.96Inch

Availability:

In stock


LKDIS00007

Rs 630.00

In stock

OLED Display Module White I2C 0.96Inch

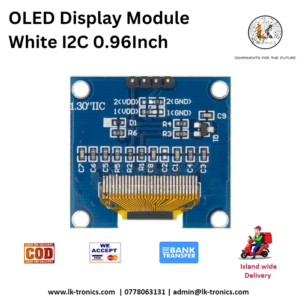

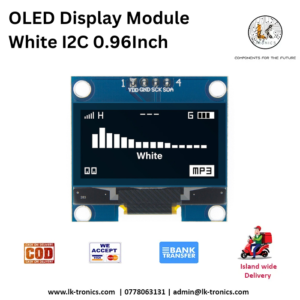

0.96″ (24 mm) monochrome graphical OLED display with a resolution of 128 x 32 pixels mounted on a 28 x 28 mm PCB. The effective display surface is 11 x 23 mm. It has a 4-pin connector to be used with an I²C bus (with SCL & SDA signals). The display works with 5 V and 3.3 V applications.

Specifications

Size: 0.96 inch / 24 mm
Resolution: 128 x 32 pixels
Board size: 28 x 28 mm
Effective display surface: 11 x 23 mm
Visual Angle: > 160 °
Input Voltage: 3.3 V ~ 6 V
Wide voltage support: 3.3 V, 5 V
Viewing angle: > 160
Drive IC: SSD1306
Operating temperature: -30 °C to 80 °C
I²C Signals: SCL / SDA
I²C address: 0x78 (or 0x3c, default) or 0x7a (or 0x3d).
Note: I²C addresses can (unfortunately) be specified in two ways: including R/W bit or not. Therefore 0x78 (0x7a) including the R/W bit is equal to 0x3c (0x3d) without R/W bit.

OLED Advantages

Smaller volume
Ultra-low power consumption
High Contrast
Display dot self-luminous
Wide voltage support
Warning: The display’s glass is fragile, please be careful while handling it. If the glass is broken, the screen will not work well.

VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

OLED Display Module White I2C 0.96Inch OLED Display Module White I2C 0.96Inch OLED Display Module White I2C 0.96Inch

SKU: LKDIS00007 Category: Tags: ,

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “OLED Display Module White I2C 0.96Inch”

There are no reviews yet.

Product Q&A

What voltage does this OLED display module support?

It supports a wide voltage range between 3.3V and 6V for various microcontroller projects.

Which driver chip is used in this 0.96 inch display?

This module uses the SSD1306 driver IC for high contrast and self-luminous performance.

What is the communication interface for this white OLED?

It uses a standard 4-pin I2C interface with SCL and SDA signals for easy wiring.
