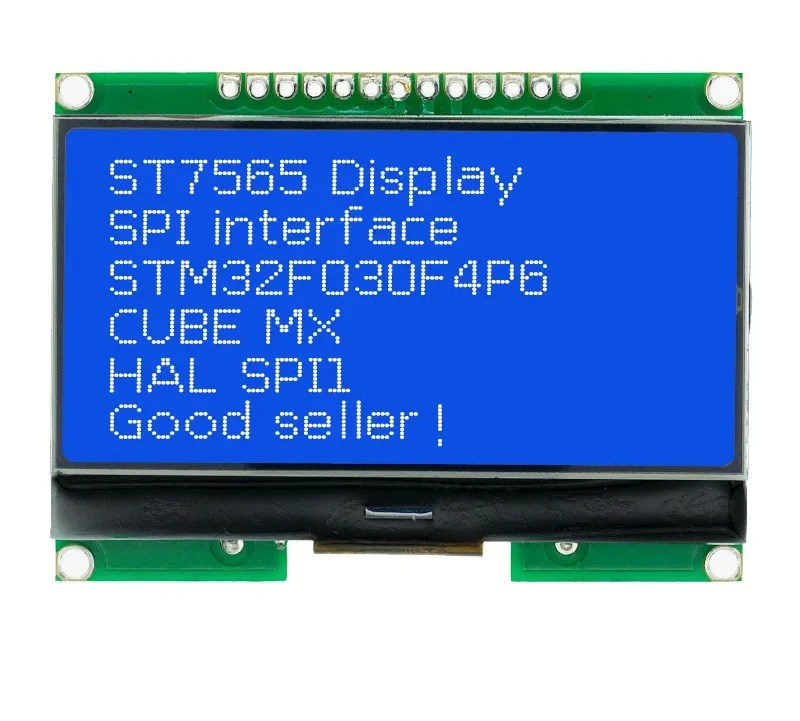

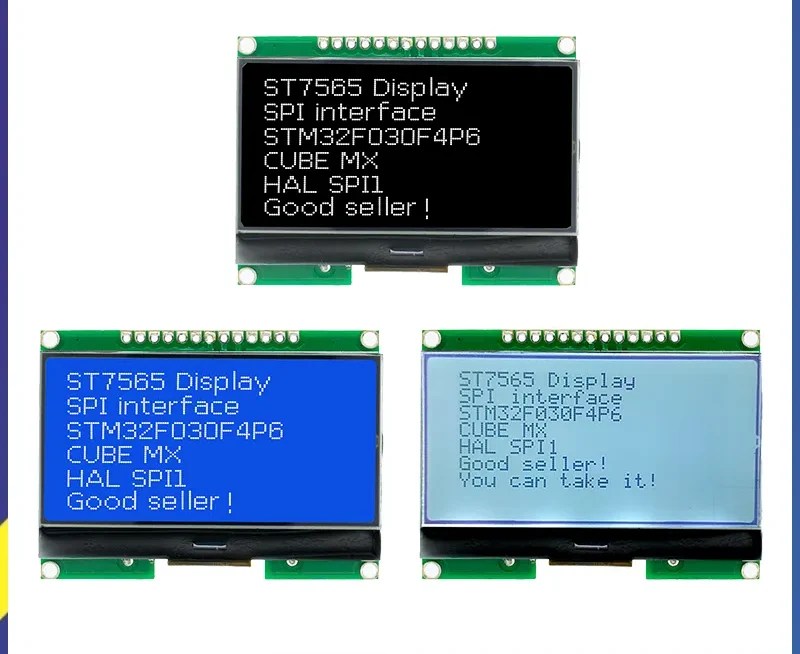

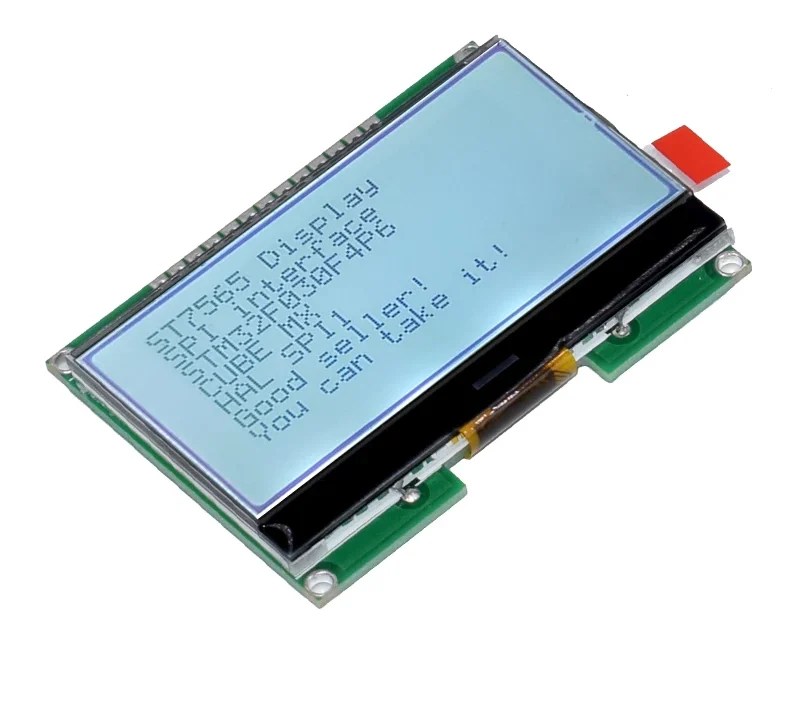

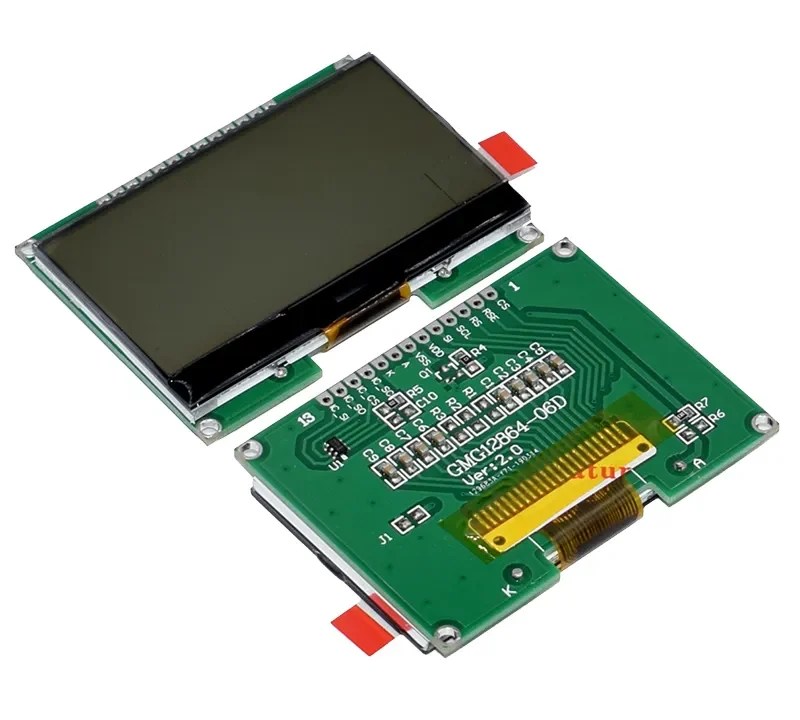

128×64 dot matrix screen SPI interface for Lcd12864 12864-06D, 12864

The 128×64 dot matrix screen GMG12864-06D 128×64 Graphic COG LCD Display Module is an ultra-compact, high-contrast monochrome dot-matrix display engineered for microcontrollers, smart instruments, 3D printer panels, and embedded DIY electronics. Powered by the reliable ST7565R controller IC with Chip-on-Glass (COG) technology and an onboard GT20L16S1Y font chip, this screen renders high-density graphics, telemetry charts, and standard ASCII characters over a high-speed 4-wire/3-wire SPI interface with minimal GPIO overhead.

Key Features

  • 128×64 High-Resolution Matrix: Crisp graphic display capable of rendering custom UI elements, sensor trend graphs, icons, and multi-line text.
  • Integrated ST7565R Controller: Low-power CMOS LCD driver featuring onboard voltage generation, DC-DC step-up circuitry, and software contrast adjustment.
  • High-Speed Serial SPI Interface: Requires as few as 4 to 5 microcontroller I/O pins, freeing up hardware resources for sensors and actuators.
  • Compact COG Form Factor: Slim, lightweight Chip-on-Glass construction with a generous 58×28 mm viewing window.
  • Broad Software Support: Fully compatible with popular open-source Arduino and embedded graphics libraries including U8g2 and Adafruit_ST7565.
  • Wide Operating Temperature: Reliable performance from -20°C to +70°C, suitable for outdoor instrumentation and industrial panels.

Technical Specifications

ParameterSpecification
ModelGMG12864-06D / 12864-06D
Display TypeMonochrome Graphic COG LCD (Dot Matrix)
Resolution128 × 64 Dots
Driver Controller ICST7565R
Onboard Font ICGT20L16S1Y (Supports ASCII / Chinese character sets)
Operating Voltage3.3V DC (±10%)
Logic Level3.3V TTL (Use level shifter if interfacing with 5V MCUs)
Interface ModeHardware / Software SPI (CS, A0/RS, SCL, SI/SDA, RESET)

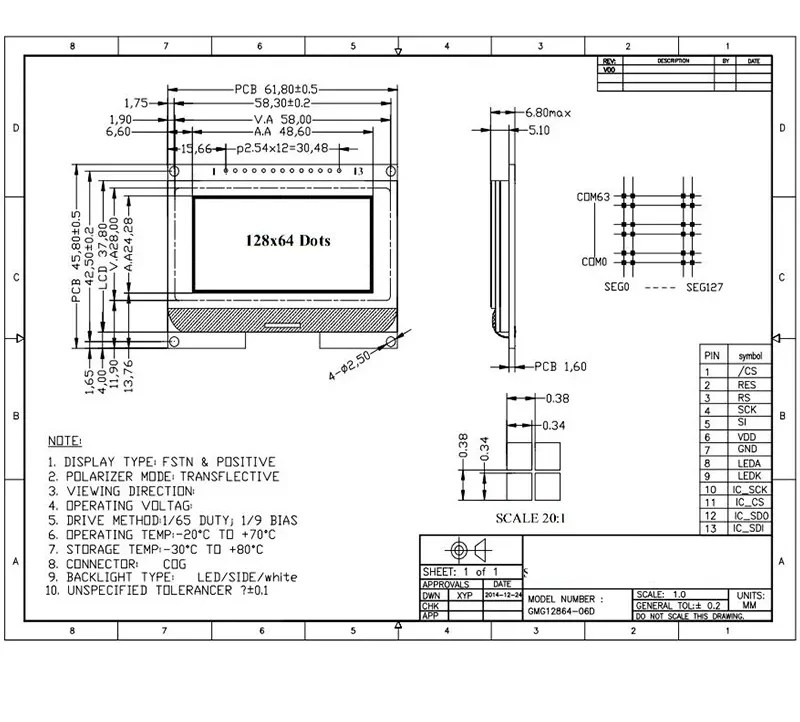

Module Dimensions61.8 mm × 45.8 mm × 6.8 mm
Viewing Area (Window)58.0 mm × 28.0 mm
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C

Usage & Wiring Notes

  • 3.3V Logic Notice: The ST7565R driver operates on 3.3V. When pairing with 5V microcontrollers (such as standard Arduino Uno / Mega), use resistor dividers or a bidirectional logic level shifter on the SPI signal lines to protect the driver.
  • Library Recommendation: In the Arduino IDE, install the U8g2 library and select constructor U8G2_ST7565_64128N_F_4W_SW_SPI or U8G2_ST7565_64128N_F_4W_HW_SPI for quick setup.
