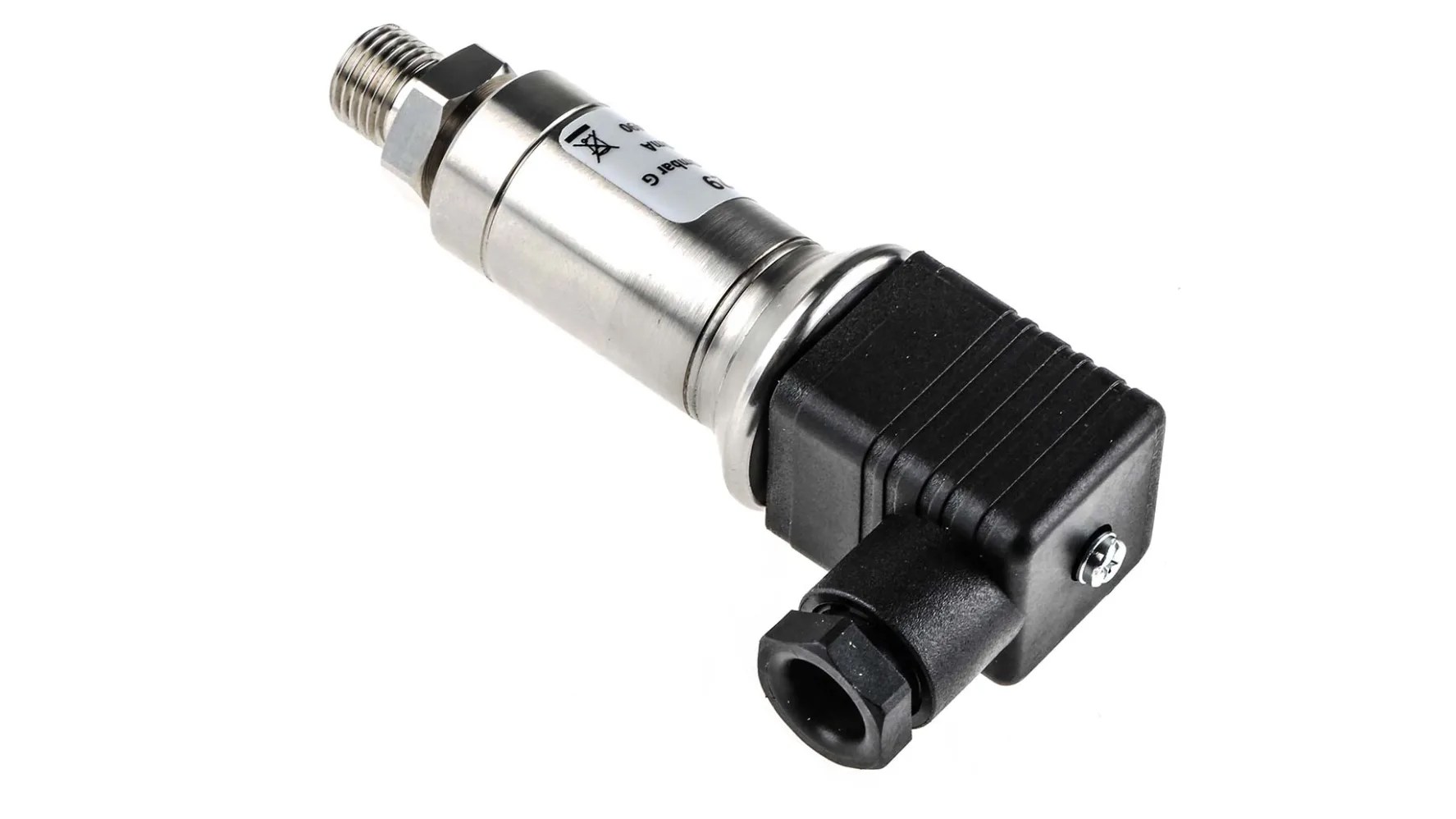

Industrial Pressure Sensor (0bar – 500mbar)
RS PRO Industrial Pressure Sensors – IPSL Series
These IPSL-series Pressure Sensors, also known as pressure transmitters from our own RS PRO brand are suitable for wide range of industrial applications. These devices change pressure forces into electrical signals. They are used to measure the pressure of the specific quantity like air, water and gas by changing the pressure into electrical energy. The probe uses a piezo-resistive ceramic sensor, giving excellent media compatibility within a stainless-steel housing.
Specifications
|
Attribute
|
Value
|
|---|---|
| Pressure Reading Type | Relative |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 500mbar |
| Accuracy | <±0.25 % |
| Output Type | Current |
| Media Measured | Oil, Water |
| Process Connection | G1/4 |
| Electrical Connection | DIN 43650 Type A |
| Analogue Output | 4 → 20 mA |
| Maximum Current | 28 mA |
| Supply Voltage | 9 → 32 V dc |
| Housing Material | Stainless Steel |
| Mounting Type | Threaded |
| Maximum Operating Temperature | +125°C |
| IP Rating | IP65 |
| Minimum Operating Temperature | -20°C |
Features and Benefits
- • Piezo-resistive thick film ceramic sensor
- • Compact and rugged
- • Output 4-20 mA
- • BSP 3/4
- • CE Compliant
Material Specifications
- • Housing: Stainless Steel 303
- • O ring seals: Viton
- • Diaphragm: 316L Stainless Steel
- • Media wetted parts: Housing & connection, O ring seal, diaphragm
- • Weight: 100 g
- • Installation position: Flexible
- • Operational Life: >100x 106 cycles
- • Insulation resistance >50M Ohms at 50 V dc
Applications
- • Mechanical engineering
- • Environmental engineering
- • Automotive testing
- • Pneumatics
- • Agricultural machinery
- • Laboratory testing
Characteristics
The electronics incorporate a microprocessor-based amplifier, requiring no adjustments and giving stable electronics, especially for industrial applications. The device is temperature compensated, calibrated and supplied with a traceable serial number and calibration data.
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
