Horizontal Type Holder

Availability:

In stock


LKELEC00283 | LKELEC00284 | LKELEC00285

Price range: Rs 500.00 through Rs 550.00

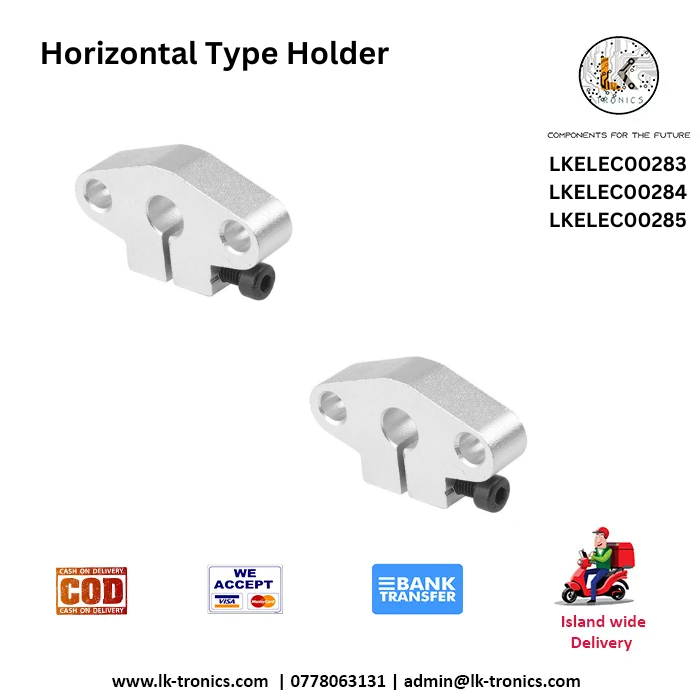

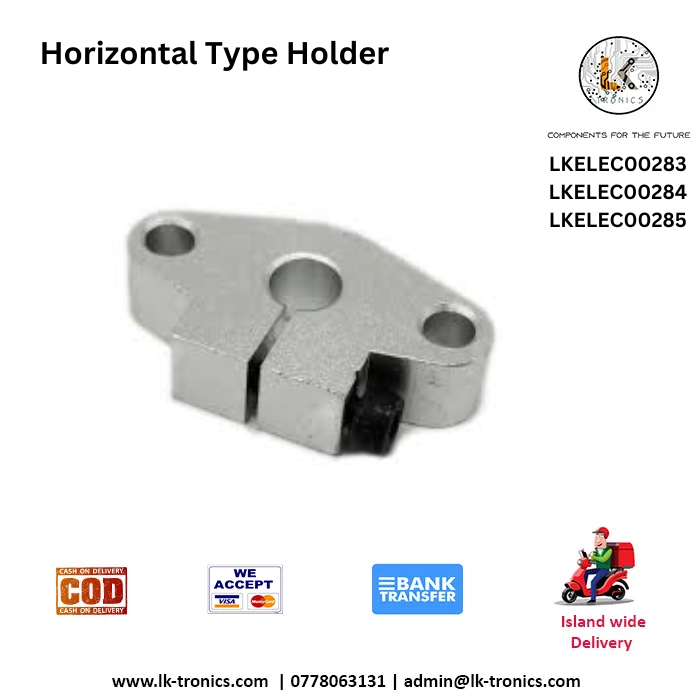

horizontal type holder Optical Axis Shaft Support Holder (SHF8 / SHF10 / SHF12)

The horizontal type holder is a precision-machined aluminum alloy clamping block designed to rigidly anchor and support horizontal smooth rods, cylindrical guide shafts, and optical axes in linear motion mechanisms. Engineered for CNC routers, 3D printers, laser engravers, pick-and-place robots, and automated lab equipment, the SHF holder maintains shaft alignment under dynamic lateral and axial loads.

Manufactured with an integrated split-clamp design and a top-accessible clamping bolt, the SHF series provides uniform clamping pressure around the rod without marring the ground surface of hardened chrome-plated linear shafts. The wide-flange base with dual counterbored mounting holes allows for rigid horizontal surface mounting onto aluminum extrusions, machine beds, or gantry plates.

Key Features & Benefits

  • Rigid Aluminum Alloy Construction: Cast and precision-machined from lightweight, high-strength aluminum alloy, treated with a corrosion-resistant sandblasted and anodized finish.

  • Uniform Radial Clamping: The integrated slotted clamp collar with a high-tensile socket-head bolt ensures 360° grip around the shaft, preventing slippage, rotation, and axial drift during high-speed motion.

  • Low-Profile Horizontal Orientation: Designed specifically for horizontal mounting parallel to the mounting deck or machine chassis, minimizing vertical profile height in compact enclosures.

  • Multiple Diameter Options: Available in standard metric shaft sizes—SHF8 (8 mm), SHF10 (10 mm), and SHF12 (12 mm)—to match standard smooth rod and linear ball bearing specifications (e.g., LM8UU, LM10UU, LM12UU).

  • Easy Installation & Alignment: Pre-drilled dual mounting flange holes simplify spacing, squaring, and parallel rail leveling on 2020/2040 V-slot or T-slot aluminum extrusions.

Specifications

  1. Material:
    • Stainless Steel
    • Aluminum Alloy
  2. Mounting Type:
    • Horizontal orientation, allowing items to be mounted parallel to the surface.
  3. Dimensions:
    • Length, width, and height depending on application requirements.
    • Common dimensions (for sensors, rods, or piping):
  4. Mounting Hole Size:
    • Diameter of mounting holes (usually between 4mm and 10mm).
  5. Load Capacity:
    • Depends on material and size, ranging from a few kilograms to hundreds of kilograms for industrial use.
  6. Surface Finish:
    • Polished, anodized, or powder-coated (for corrosion resistance).
  7. Application:
    • Can be used for mounting cylindrical sensors, rods, pipes, or other linear devices.
  8. Compatibility:
    • Fit for specific rod or pipe diameters (e.g., 8mm, 10mm, 12mm).



VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

SKU: N/A Category:
Size

SHF8, SHF10, SHF12

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Horizontal Type Holder”

There are no reviews yet.

Product Q&A

What materials are used for the holder?

These holders are crafted from high-quality stainless steel and durable aluminum alloy for longevity.

Is this holder suitable for industrial sensors?

Yes, our horizontal type holder is specifically designed for mounting cylindrical sensors and linear devices.

Does the holder resist corrosion?

Yes, every unit features a polished, anodized, or powder-coated finish to prevent corrosion effectively.
