The HC-020K Double Speed Measuring Sensor is a highly advanced and reliable device designed to accurately measure the speed of moving objects. This sensor is equipped with two independent channels that allow for simultaneous measurement of two different speeds. The device is capable of measuring speeds ranging from 0.1m/s to 500m/s with an accuracy of ±0.5%.
Specification A:
Code disk Technical parameters:
Brand new and high quality.
Number of lines: 100 lines
Outer diameter: 22mm
Bore Diameter: 3.5mm
Thickness: 0.3mm
Material: Steel
Production process: Laser Cutting
Speed of pipe technical parameters:
On the tube Manufacturer: Hewlett-Packard HP Original
Supply voltage: 5V
Wiring: Red-5V Black-GND
Output Signal: 5Vp-p two quadrature signal output
Features:
Module Working Voltage: 4.5-5.5V
Launch Tube Pressure Drop: Vf=1.6V
Launch Tube Current: If<20mA
Signal output: A, B two lines; TT power level;
Resolution: 0.01mm
Measurement frequency: 100KHz
Disc diameter: 24mm
Inner Disc Diameter: 4mm
Encoder resolution: 20 lines
Speed measuring sensor configuration: measure line 1 motor speed
Application: For the experiment
Package

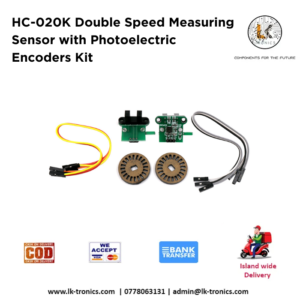

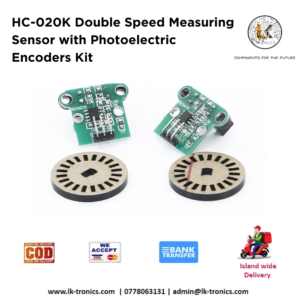

1* HC-020K Double Speed Measuring Sensor Encoder Coded Disc code wheel for Freescale Smart car
HC-020K Photoelectric Speed Sensor | Wheels | Nuts and Bolts
