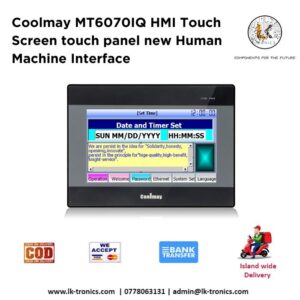

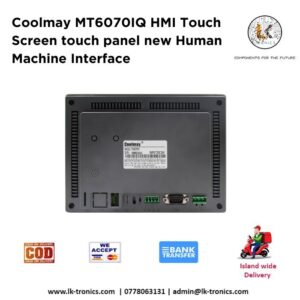

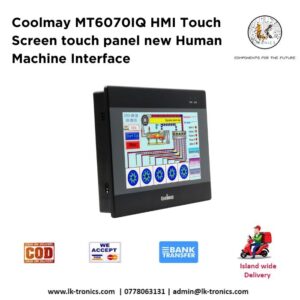

Coolmay MT6070I HMI Touch Screen touch panel Human Machine Interface [HMI]

Coolmay MT6070IQ HMI Touch Screen touch panel Human Machine Interface [HMI]

Enhance your industrial automation with the Coolmay MT6070IQ HMI Touch Screen. Experience seamless control and monitoring with its advanced features.

Specifications:

• Provides vector galleries and supports self-built gallery
• Resistive touch panel with high precision and reliability
• Supports any-format static images and GIF animation
• Supports all fonts in Windows
• 60,000 TFT true color display
• Optional data storage function, you need to select U disk storage in the HMI software, and the hardware USB interface requires an external USB drive (SD card storage is optional, and cannot coexist with U disk storage)
• MT60 series support data import or export and program downloading by USB drive
• Default RS232 and RS485 ports, support multiple protocols
• MT60 series supports vertical display
• Network port, audio, or CAN port is optional
• MT60**H: WINCE 5.0 system, MT60**HA/KHA: WINCE 7.0 system, MT90**H/KH: no system
• MT6037H/MT6050H (A): gray, gold or silver panel is optional, black or white bottom shell is optional
• MT6037H/MT6050H (A) support wall mounted and can be used in home automation or industrial control

Display:

• Size: 7 inches
• Type: TFT LCD
• Resolution: 800 x 480 pixels
• Color: 65536 colors
• Brightness: Adjustable

Touchscreen:

• Type: Resistive
• Touch Points: Single-point touch

Processor:

• CPU: ARM Cortex-A8, 600 MHz

Memory:

• Flash Memory: 128 MB
• RAM: 64 MB

Communication Ports:

• Serial Ports: RS232/RS485/RS422
• Ethernet Port: 1 x 10/100 Mbps
• USB Port: 1 x USB 2.0

Power Supply:

• Input Voltage: 24 V DC (±15%)

Dimensions:

• Cutout Size: 192 x 138 mm
• Overall Dimensions: 200 x 146 x 36 mm

Environmental:

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)

Software Compatibility:

• Programming Software: Typically compatible with HMI programming tools like EasyBuilder Pro

Other Features:

• Real-Time Clock: Yes
• Buzzer: Yes
