Acrel ARTM-8 Monitor -8 Real-time Temperature Measuring Device

Acrel ARTM-8 Temperature Monitor is an industrial-grade multi-channel temperature monitoring unit engineered for centralized thermal surveillance in medium- and low-voltage electrical switchgear, distribution transformer windings, motor bearings, and high-current busbar joints. Designed to prevent electrical fires and thermal degradation caused by contact resistance or overload, it provides continuous, high-precision acquisition across up to 8 independent Pt100 RTD sensor channels.

Equipped with a high-contrast front-panel LED display, two programmable relay alarm outputs, and an isolated RS485 serial communication port running standard Modbus-RTU, the ARTM-8 functions as an autonomous thermal protection device or as a digital telemetry node integrated directly into plant SCADA, PLC, and energy management systems.

Key Features & Benefits

  • 8 Independent Pt100 Channels: Monitors up to 8 discrete thermal zones simultaneously with Class 0.5s measurement accuracy and robust electromagnetic anti-interference (EMC) capability.

  • Dual Programmable Relay Protection: Features 2 independent relay contact outputs (NO, rated AC 250V / 5A, DC 30V / 5A) configurable for high-temperature warning thresholds, trip commands, or cooling fan interlocks.

  • Standard Modbus-RTU Telemetry: Built-in isolated RS485 communication interface supporting baud rates from 1200 bps to 19200 bps, enabling real-time polling of all 8 channel temperatures, alarm states, and device registers.

  • Wide-Range Universal Auxiliary Supply: Operates on standard industrial auxiliary control power across AC 85V–265V or DC 100V–350V, maintaining stable operation during line voltage fluctuations.

  • Rugged Switchboard Form Factor: Housed in a standard 96 × 96 mm panel-mount enclosure (88 × 88 mm cutout) with clear multi-segment LED readouts for on-site channel scanning and parameter configuration.

Specification

● 8 PT100 measurement
● 2 Alarm relays
● LED display
● Auxiliary power supply adapts with AC220V, DC220V, DC110V
● 1 RS485 serial communication, Modbus-RTU

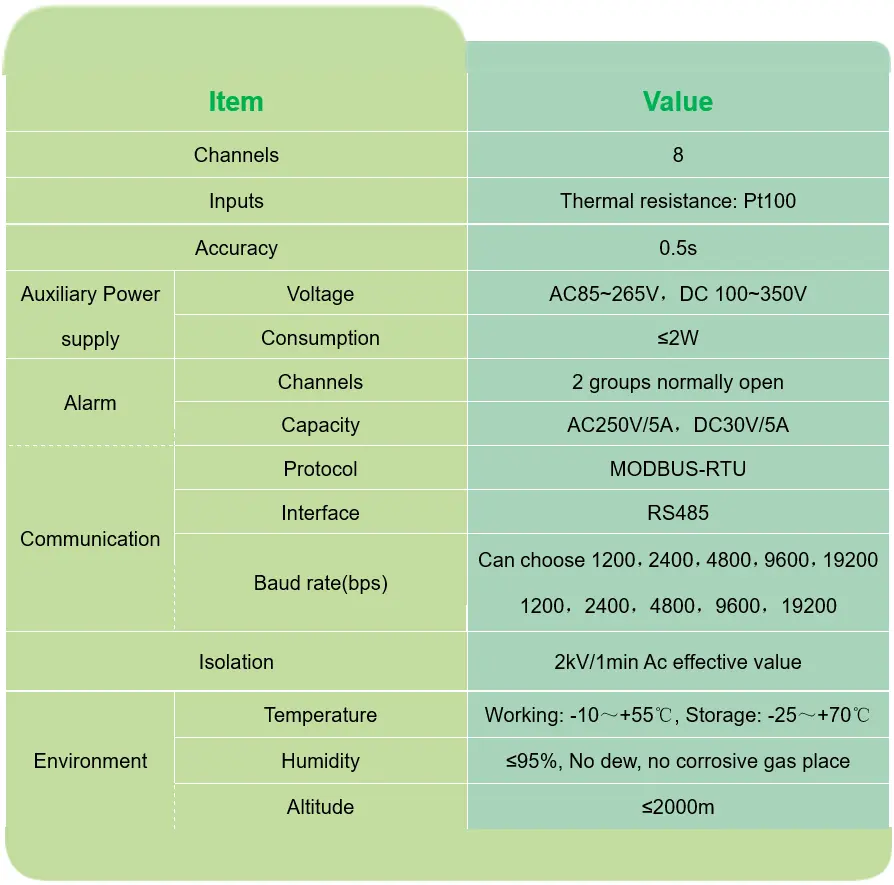

Specification

Characteristic

Measure 8 channel Pt100 temperature, it can also block any of these channels.LED displayEasy wiring

LCD Display

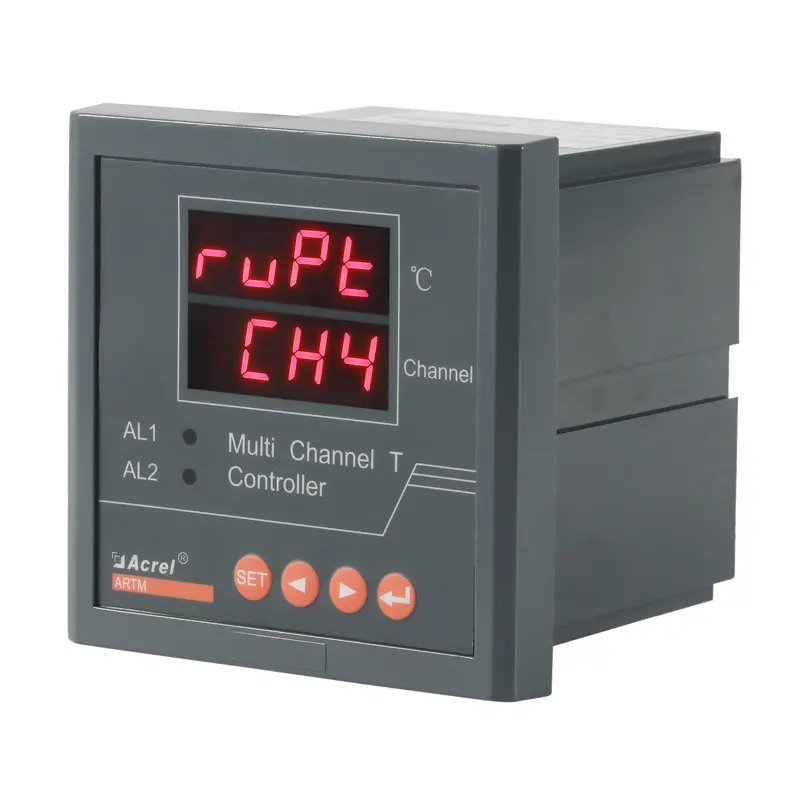

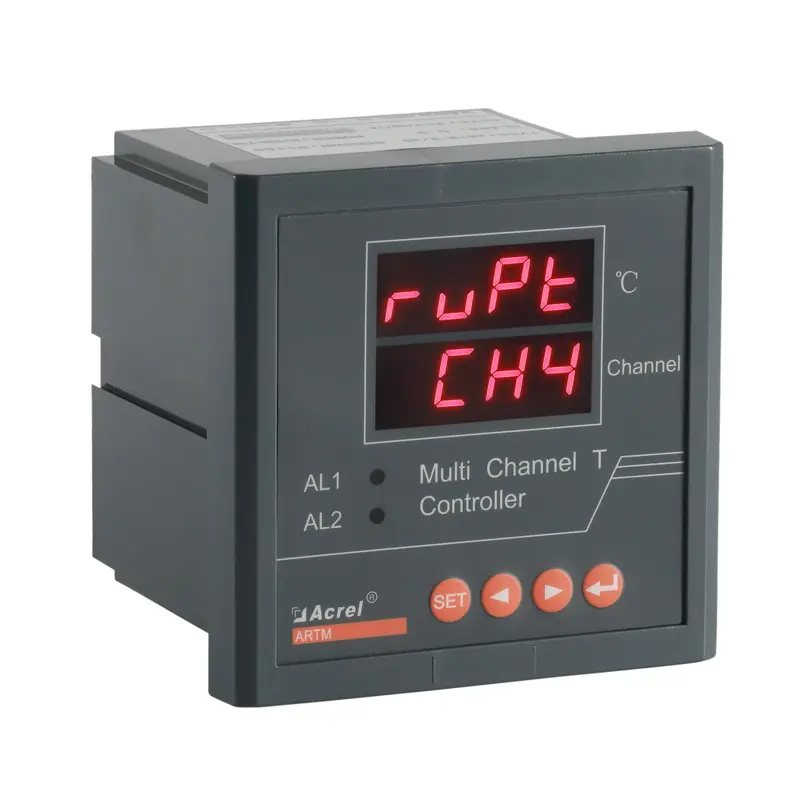

Appearance

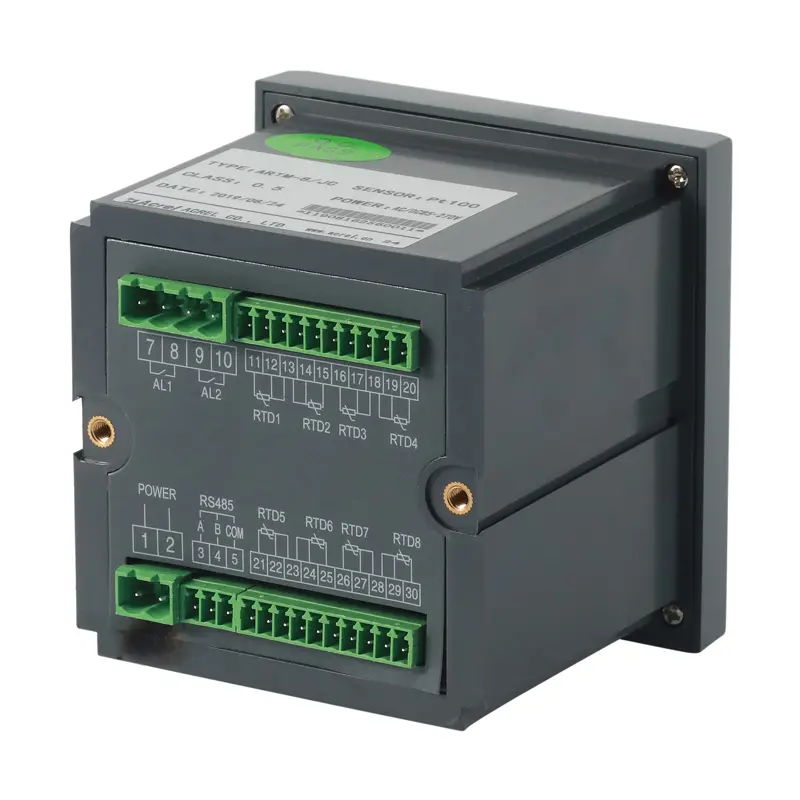

Wiring

wiring

Typical connection

Typical connection



VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

SKU: LKOTS00013 Category: Tag:

Brand

Acrel

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Acrel ARTM-8 Real-time Temperature Measuring Device”

There are no reviews yet.

Product Q&A

How many PT100 sensors can the ARTM-8 monitor?

The Acrel ARTM-8 supports simultaneous monitoring for up to eight independent PT100 RTD sensor channels.

Does this device support remote data communication?

Yes, it includes an RS485 interface using the standard Modbus-RTU protocol for seamless industrial integration.

What are the primary alarm features of this unit?

It features two programmable alarm relays and a clear LED display for real-time thermal surveillance.
