Acrel AM3SE protection relay unit for medium voltage applications

Acrel AM3SE for Protection Relays for Medium Voltage Application

LKOTS00006

මෙම අයිතමය අපගේ වෙබ් අඩවියෙහි Shipping from Overseas
සේවාව යටතේ ගෙන්වන බැවින් මෙය ඔබ හට ලැබීමට
වැඩ කරන දින 10 – 20 පමණ ගත වේ.
මෙම අයිතමය ඔබ ඇනවුම් කල පසු මෙහි සියලුම යාවත් කාලීන කටයුතු e-mail මගින් සිදු කෙරේ
ස්තූතියි!

Add to Quote

Acrel

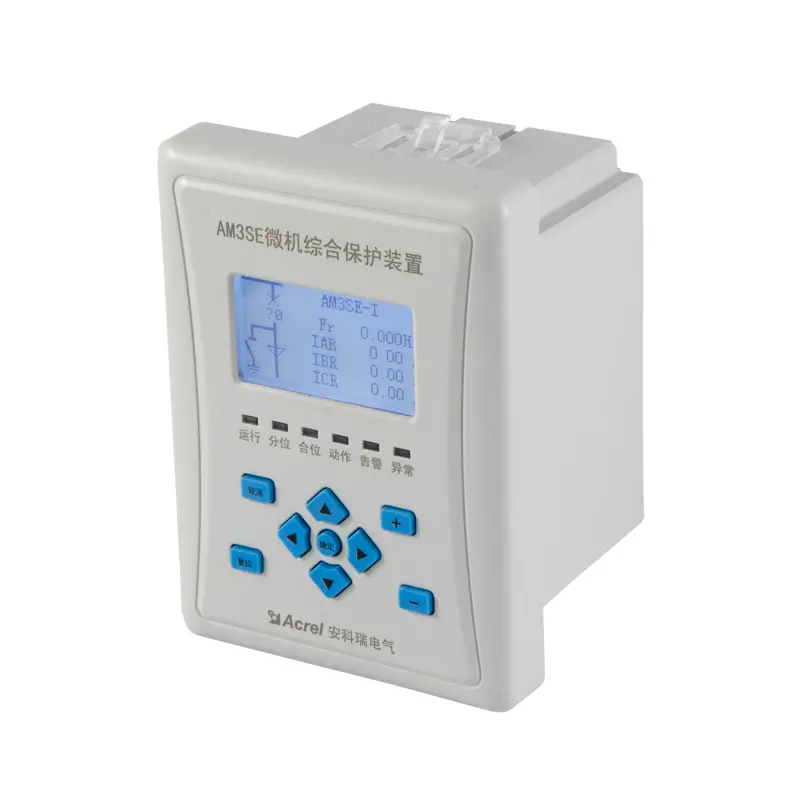

Acrel AM3SE protection relay for Medium Voltage Application

● A complete set of protection, related to the application;

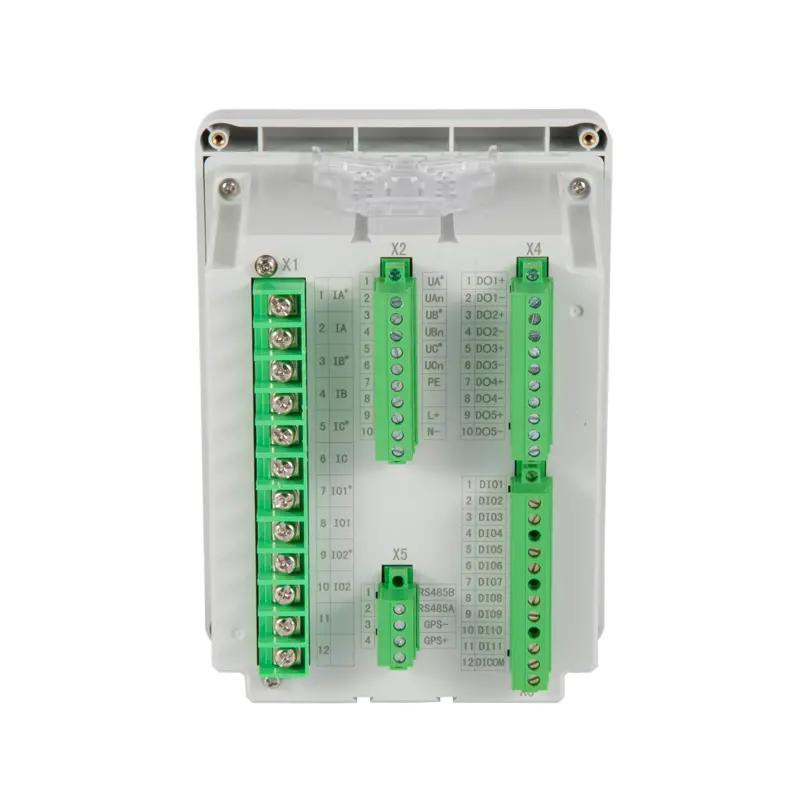

● 5 current input, 3 voltage input, 11DI, 5DO;
● Auxiliary power supply adapts with AC 220V, DC 220V, DC 110V, AC 110V, DC 48V, DC 24V;
● 1 RS485 serial communication, IEC60870-5-103 and Modbus-RTU;
● 1 GPS for GPS timing;

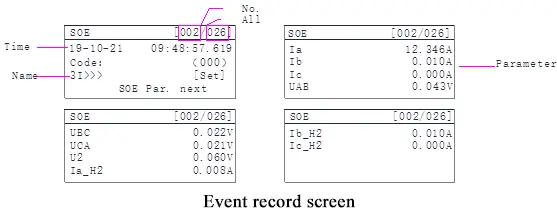

● More than 200 sequences of event records, more than 400 system logs, and more than 10 seconds tripping context records;
● Powerful graphic programmable Logic.

Characteristic

Rich protection functionsMeasurementControl functions
Feeder protection; Transformer protection; Voltage protection;RMS current values; RMS voltage values; frequency; Power factor; RMS active power.Remote control; Local control; Programmable switchgear interlocking

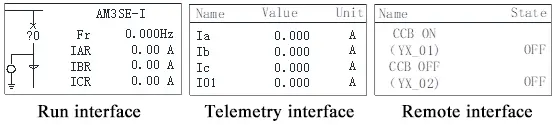

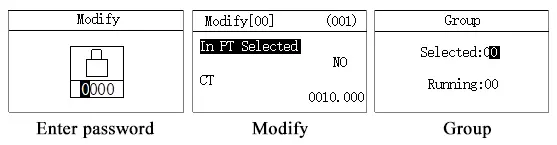

LCD Display

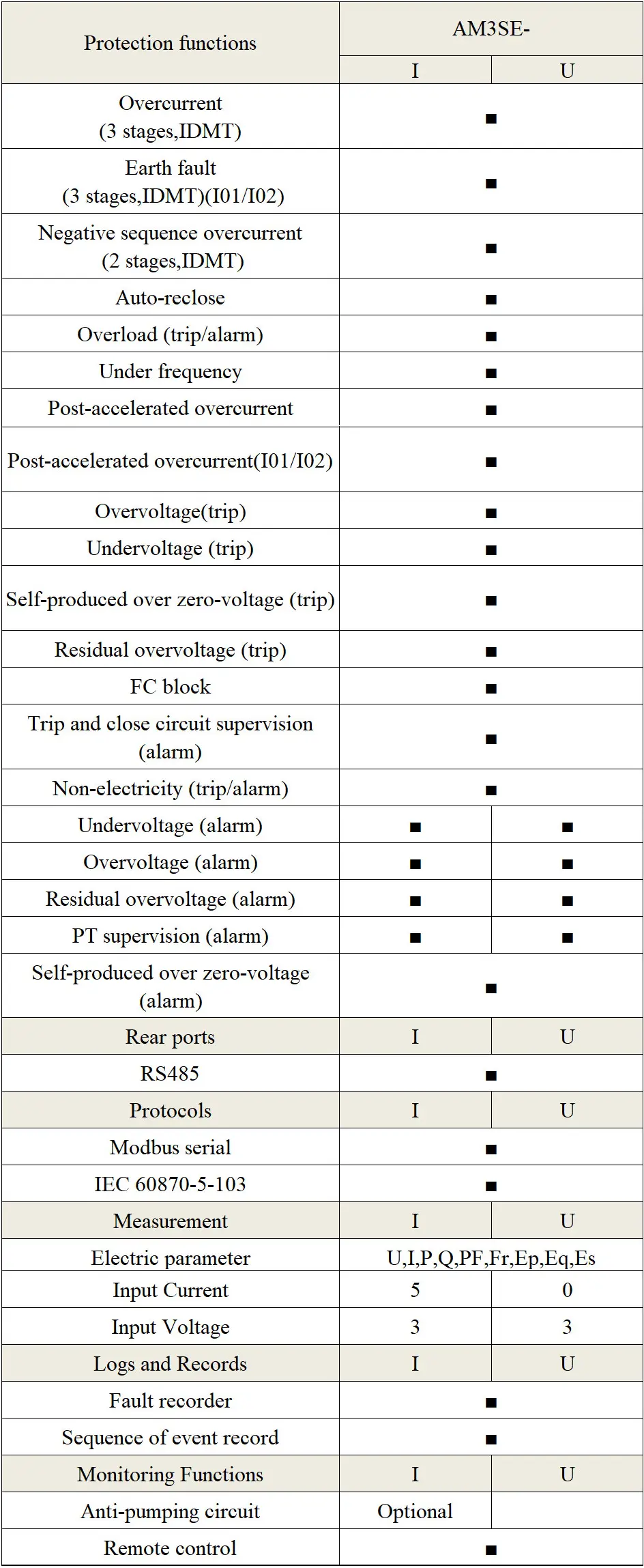

Function

Function

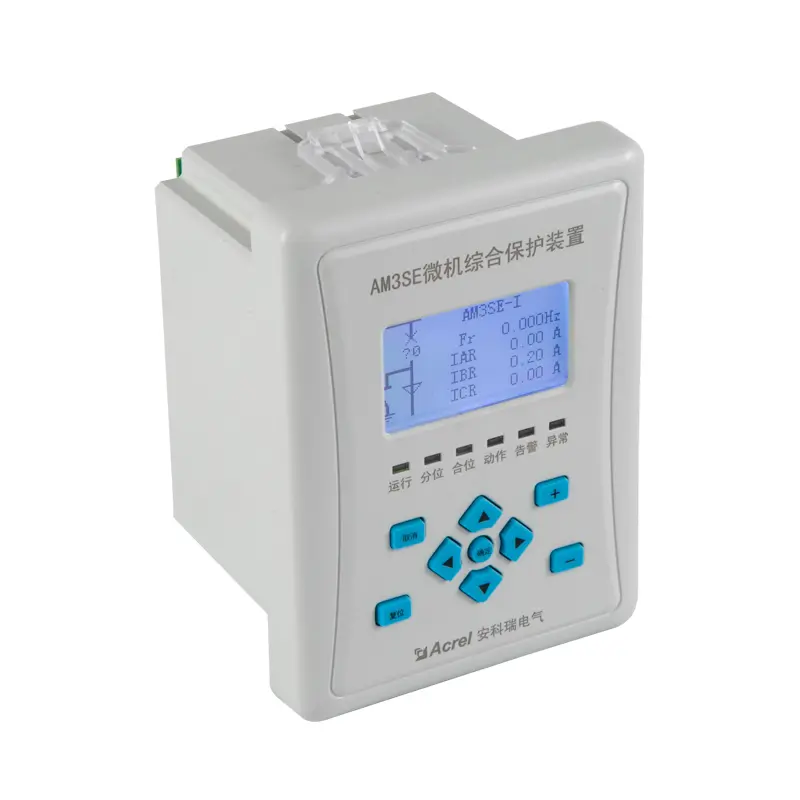

Appearance

Appearance

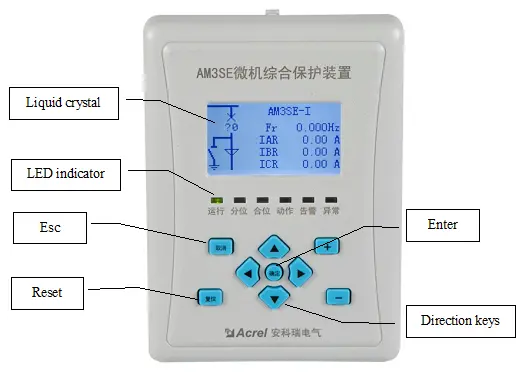

Operation Instruction of Acrel AM3SE protection relay

Operation Instruction of Acrel AM3SE protection relay

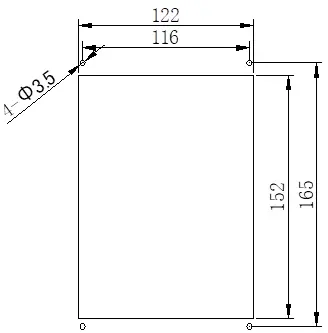

Dimension

Dimension

Network Topology

Network Topology



VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

Category: Tag:

Brand

Acrel

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Acrel AM3SE for Protection Relays for Medium Voltage Application”

There are no reviews yet.

Product Q&A

What is the Acrel AM3SE relay used for?

It provides protection for medium voltage applications with advanced features.

What are the input specifications?

It has 5 current inputs, 3 voltage inputs, 11DI, and 5DO.

Does it support communication protocols?

Yes, it supports IEC60870-5-103 and Modbus-RTU via RS485.
