Acrel ACE100-29 Real-time Temperature Measuring Device


LKOTS00011

මෙම අයිතමය අපගේ වෙබ් අඩවියෙහි Shipping from Overseas
සේවාව යටතේ ගෙන්වන බැවින් මෙය ඔබ හට ලැබීමට
වැඩ කරන දින 10 – 20 පමණ ගත වේ.
මෙම අයිතමය ඔබ ඇනවුම් කල පසු මෙහි සියලුම යාවත් කාලීන කටයුතු e-mail මගින් සිදු කෙරේ
ස්තූතියි

Add to Quote

Acrel ACE100-29 Temperature Sensor Measuring Device

The Acrel ACE100-29 Temperature Sensor is a wireless composite sensor designed for real-time temperature and AC current monitoring across medium- and high-voltage switchgear, busbar joints, and cable terminations. Combining CT induction power harvesting with an internal backup battery, it delivers continuous thermal and load monitoring without requiring hardwired sensor cabling. It communicates via 2.4 GHz wireless telemetry to Acrel transceivers (such as the ATC600 and ARTM-Pn series) for direct integration into SCADA and energy management systems.

Specifications

  • Monitoring Range:
    • Temperature: -50°C to 125°C
    • Current: 1A to 4000A (AC)
  • Precision:
    • Temperature: ±1°C
    • Current: ±1% FS
  • Resolution:
    • Temperature: 0.1°C
    • Current: 0.01A
  • Sampling & Transmission Cycle:
    • CT-powered: 10 to 30 seconds
    • Battery-powered: 3 minutes
  • CT-powered Starting Current:
    • More than 2.5A (AC)
  • Battery Life:
    • 3 years (at 25°C)
    • Replaceable (CR2450 battery)
  • Wireless Frequency:
    • 470MHz / 433MHz
  • Communication Distance:
    • 150 meters (in open area)
  • Operating Environment:
    • Temperature: -40°C to 85°C
    • Humidity: ≤ 95% RH
  • Installation:
    • Open snap type
  • Supported Cable Diameter:
    • 6mm to 29mm

● Measuring range: -50℃~+125℃Accuracy: ±1℃

● Diameter: 6~29mm

● Current range: AC 1~400A

● Power supply: battery or CT-powered(more than 2.5A)

● Wireless transmit, 433MHz

● Transmission distance: 50 meters in an open area

● Battery-powered, more than 5 years(25℃)

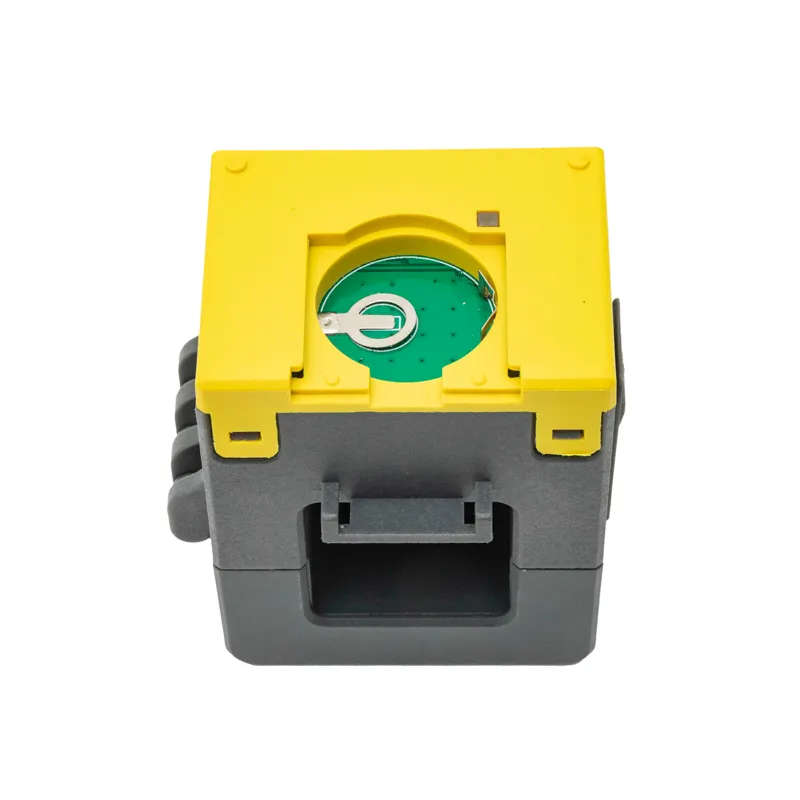

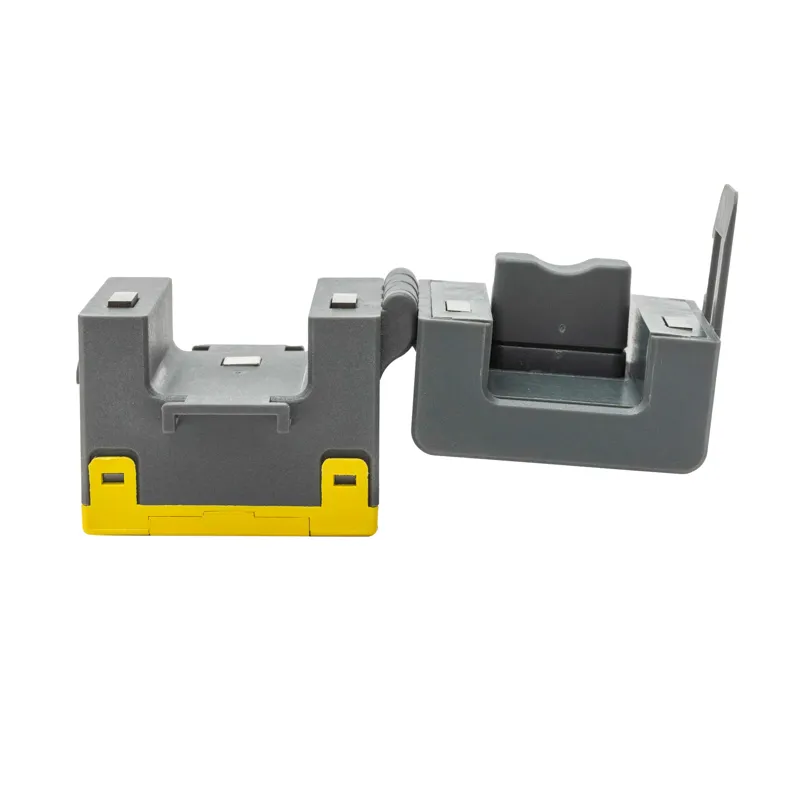

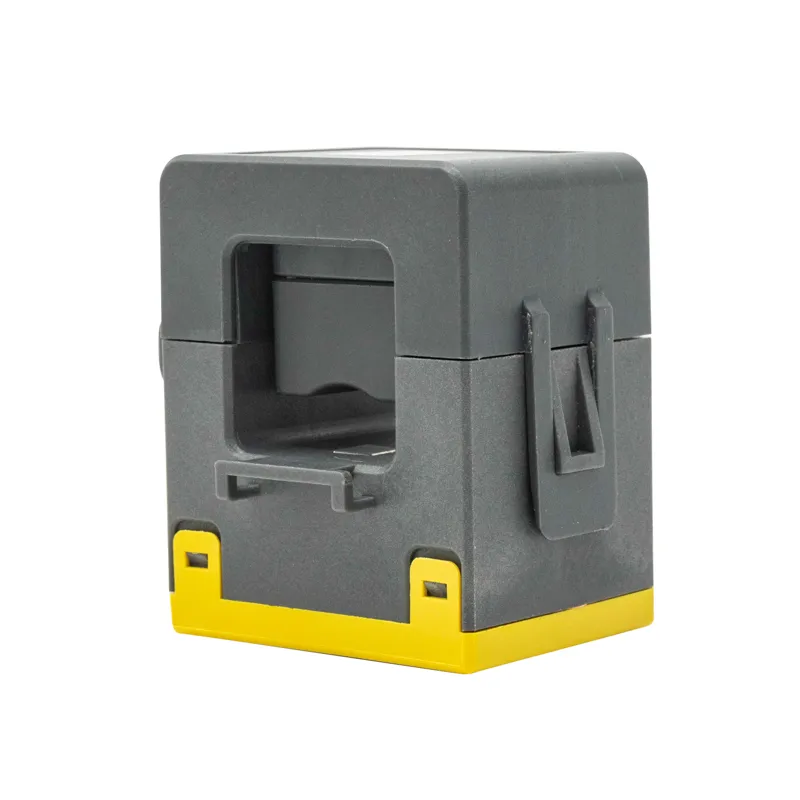

Appearance of acrel ace100-29 real-time temperature





Dimension



Acrel ACE100-29 real-time temperature and current measuring device Diagram

Typical connection



Acrel ACE100-29 real-time temperature and current measuring device connection

VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

SKU: LKOTS00011 Category: Tag:

Brand

Acrel

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Acrel ACE100-29 Real-time Temperature Measuring Device”

There are no reviews yet.

Product Q&A

What is the temperature monitoring range of this device?

The Acrel ACE100-29 monitors temperatures ranging from -50 degrees Celsius up to 125 degrees Celsius.

How is the Acrel ACE100-29 powered?

This device is powered by a replaceable battery or directly through CT induction above 2.5A.

What cable sizes are compatible with this sensor?

The open snap design supports cable diameters ranging from 6mm to 29mm for easy installation.
