5v Relay 4 Channel Module

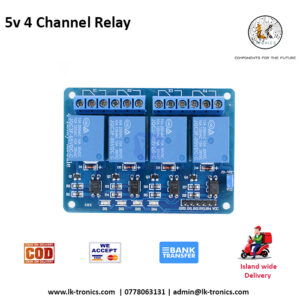

5v 4 Channel Relay Module

This is a 5V 4 Channel Relay module interface board, be able to control various appliances, and other equipment’s with large current. It can be controlled directly by Micro-controller (Raspberry pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)

• Maximum load: AC 250V/10A, DC 30V/10A
• Trigger current: 5mA
• Working voltage: 5V
• Module size: 50 x 26 x 18.5mm (L x W x H)
• Four mounting bolts holes, diameter 3.1mm
• DC+: positive power supply (VCC)
• DC-: negative power supply (GND)
• IN: high level control relay
• NO: normally open relay interface
• COM: Common Interface Relays
• NC: normally closed relay interface
