Samkoon F Series Plug-in Expansion Module

Overview

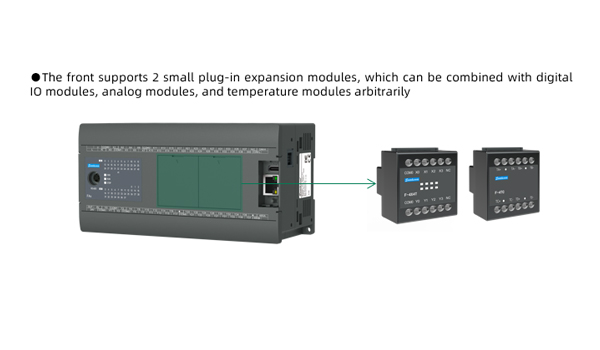

The F Series plug-in expansion modules are designed for seamless integration with Samkoon’s FAs series PLCs and GT series HMI all-in-one machines. Featuring an ultra-compact form factor, these modules offer flexible I/O options in both transistor and relay output types, making them ideal for distributed control tasks in limited-space environments. Powered directly by the host device, they simplify installation without additional wiring or power requirements. Built to industrial standards, the modules are CE and FCC Class A certified, ensuring stable and safe performance in harsh working conditions.

Product Features

Ultra-Compact Design



Miniature 39×46×33 mm size, ideal for space-constrained control cabinets and embedded applications.

Flexible I/O Options



Offers various combinations of digital inputs and outputs (transistor or relay), adaptable to diverse control needs.

Stable & Certified



Conforms to CE and FCC Class A standards, with 1000V insulation testing for safe, reliable operation.

Seamless Integration



Compatible with SamSoar2022 software and powered directly by the host PLC — no separate power needed.

Specifications

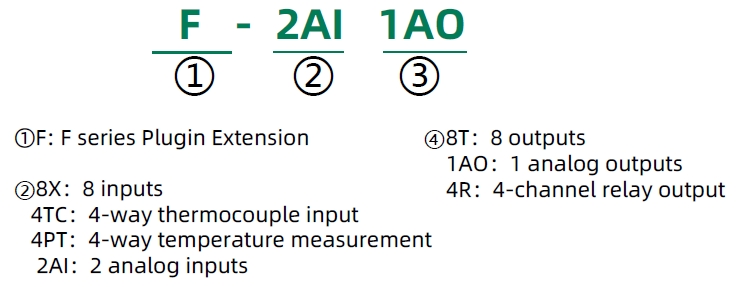

Naming Rules

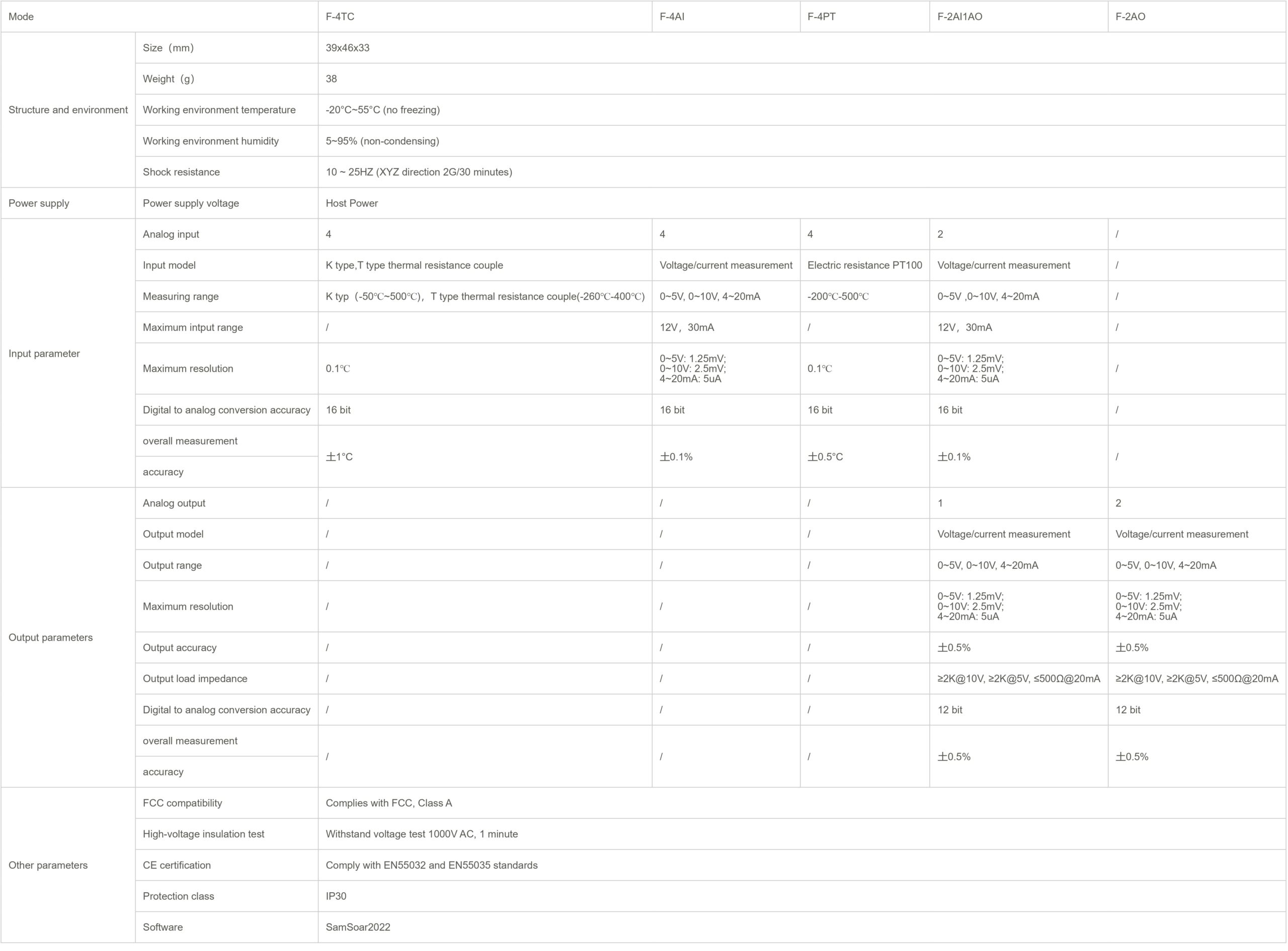

Specifications & Models

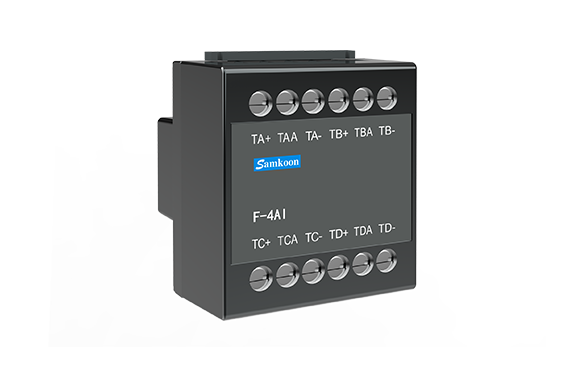

  • Analog expansion modules
