TOF10120 Laser Ranging Sensor Module

Short Info

  • VCC  3 ~ 5V
  • Ranging Range  100 ~ 1800mm
  • Bits per Second:9600



or make 3 interest free instalments of රු.800.00 with Koko

රු2,400.00

Add to Wishlist
Add to Wishlist

Only 2 left in stock

Description

TOF10120 Laser Ranging Sensor Module

Product introduction:

       TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows. performance independent of object reflectance.TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.
Product parameters:
  • Ranging Range  100 ~ 1800mm
  • VCC  3 ~ 5V
  • ICC_VDD 35mA
  • Topr  - 20 + 70 °C
  • Tstg  - 40 + 85 °C
  • Communication protocol
  • Bits per Second:9600
  • Data Bits : 8
  • Parity : None
  • Stop bits : 1
  • Flow Control : None

Application:

  • 940nm laser classified as class 1 under operation condition
  • by IEC 60825-1:2014-3rd edition
  • Small ceramic package(20×13.2×2.0mm)
  • Long range absolute range measurement up to 1.8m
  • within 5% accuracy at indoor
  • Reported range is independent of the target reflectance
  • Operates in high infrared ambient light levels
  • Advanced optical cross-talk compensation
  • High speed ranging MAX 30ms
  • Standard solder reflow compatible
  • No additional optics
  • Single power supply
  • Txd interface for device control and data transfer
  • High-speed AF
  • Continuous AF for video
  • User detection for Personal Computers/
  • Laptops/Tablets
  • Robotics (obstacle detection)
  • White goods (hand detection in automatic

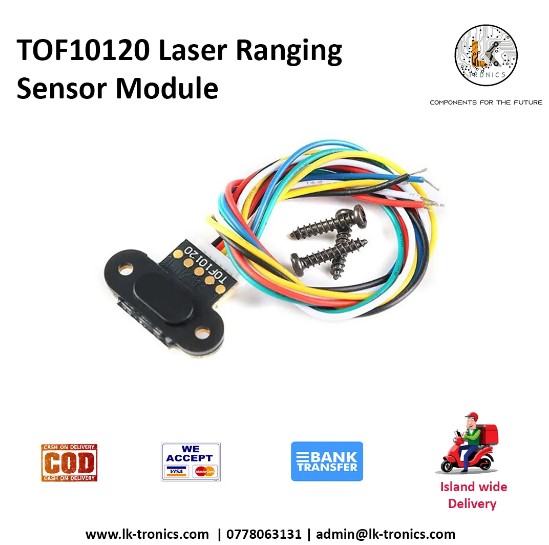

①GND Black
②VCC Red
③RXD Yellow
④TXD white
⑤SDA blue
⑥SCL purple

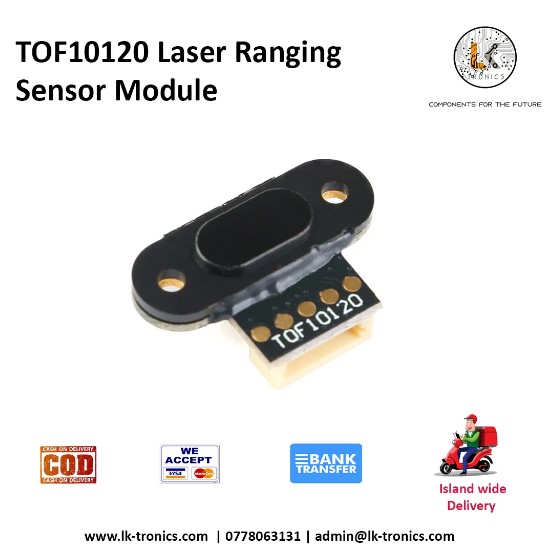

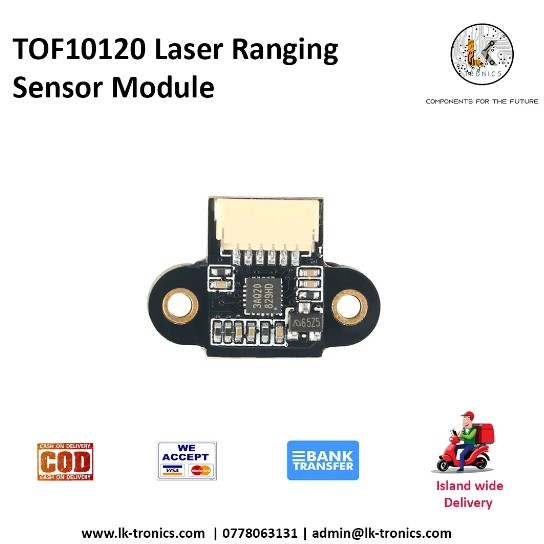

TOF10120 Laser Ranging Sensor Module
TOF10120 Laser Ranging Sensor Module
TOF10120 Laser Ranging Sensor Module
