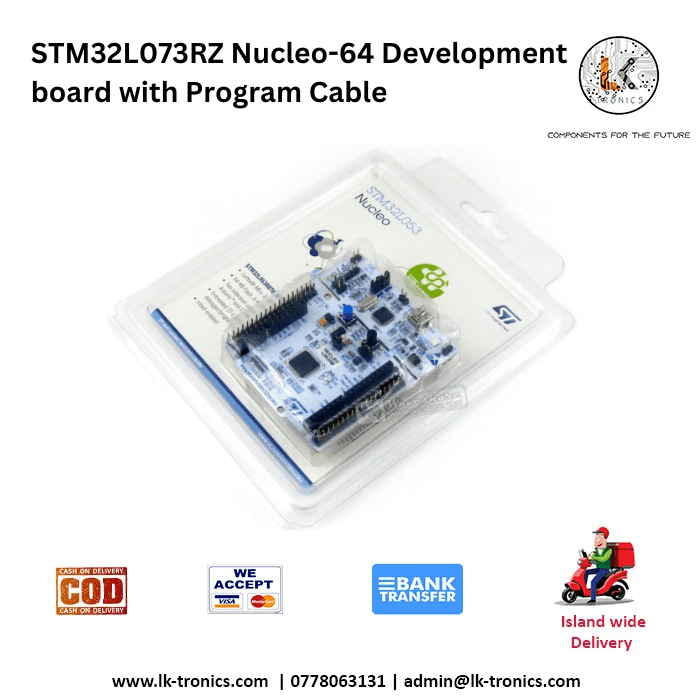

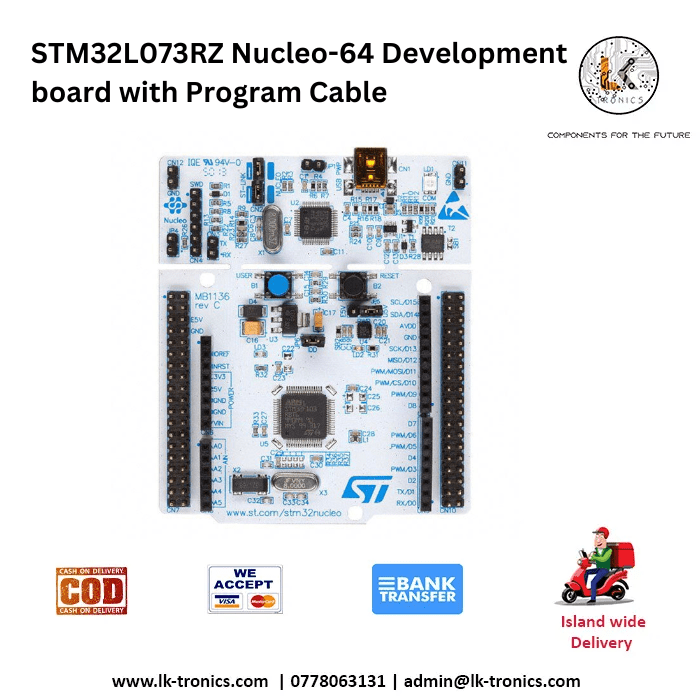

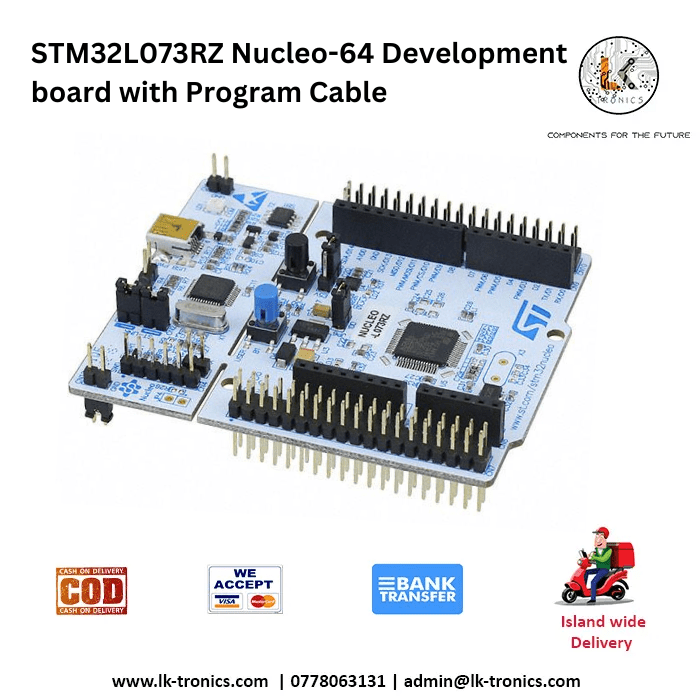

STM32L073RZ Nucleo-64 Development board with Program Cable

STM32L073RZ Nucleo-64 Development board with Program Cable

Description

STM32L073RZ Nucleo-64 Development board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller. For the compatible boards, the external SMPS significantly reduces power consumption in Run mode.

The ARDUINO^® Uno V3 connectivity support and the ST morpho headers allow the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32L073RZ Nucleo-64 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32L073RZ Nucleo-64 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Key Features

• • Common features
    • STM32L073RZ microcontroller in LQFP64 or LQFP48 package
    • 1 user LED shared with ARDUINO^®
    • STM32L073RZ MCU
    • 1 user and 1 reset push-buttons
    • 32.768 kHz crystal oscillator
    • Board connectors:
      • ARDUINO^® Uno V3 expansion connector
      • ST morpho extension pin headers for full access to all STM32 I/Os
    • Flexible power-supply options: ST-LINK USB V_BUS or external sources
    • On-board ST-LINK debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
    • Comprehensive free software libraries and examples available with the STM32Cube MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench^®, MDK-ARM, and STM32CubeIDE
  • Board-specific features
    • External SMPS to generate V_core logic supply
    • 24 MHz or 48 MHz HSE
    • Board connectors:
      • External SMPS experimentation dedicated connector
      • Micro-B or Mini-B USB connector for the ST-LINK
      • MIPI^® debug connector
