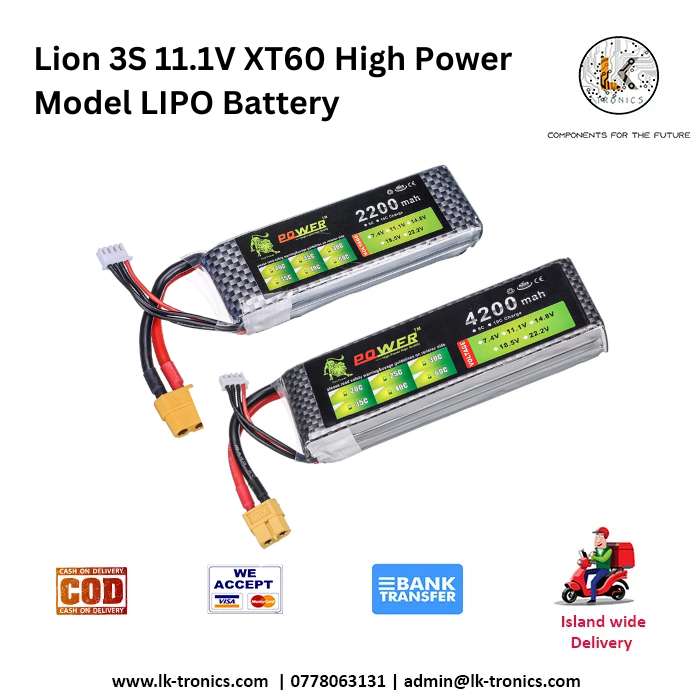

Lion 2200mAh / 4200mAh 3S 11.1V 35C XT60 High Power Model LIPO Battery

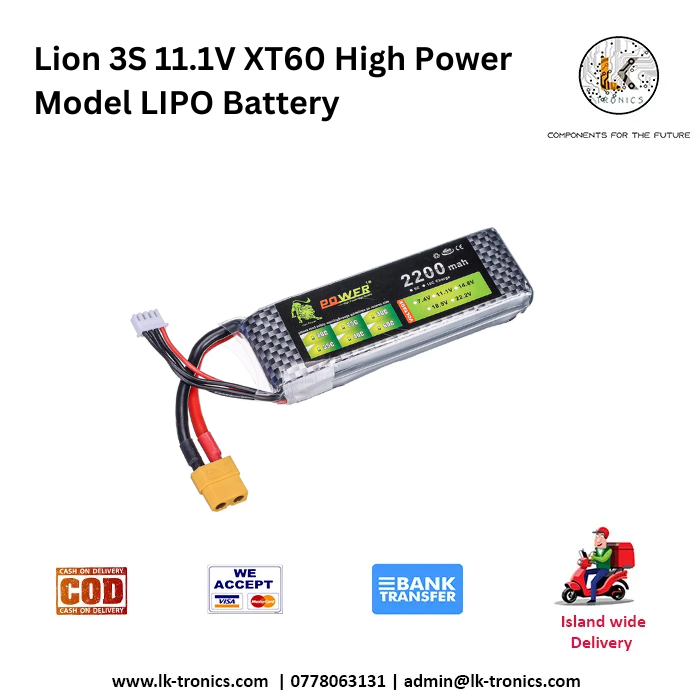

Lion 3S 11.1V 35C 2200mAh LiPo Battery

• Type: LiPo (Lithium Polymer)
• Voltage: 11.1V (3S) – 3 Cells in Series
• Capacity: 2200mAh
• Discharge Rate: 35C constant, suitable for high-current applications
  • Max Continuous Discharge: 77A (2200mAh x 35C)
  • Max Burst Discharge: 50C for short periods (up to ~110A for 5-10 seconds)
• Connector: XT60 plug
• Dimensions:
  • Length: Approximately 105mm
  • Width: Approximately 34mm
  • Height: Approximately 24mm
• Weight: ~180 grams
• Charge Rate: Recommended at 1C (2.2A) for extended battery life; up to 2C (4.4A) for faster charging but reduced lifespan
• Balancer Connector: JST-XH type
• Application: Suitable for medium to high-performance RC planes, helicopters, cars, boats, and some drones

2. Lion 3S 11.1V 35C 4200mAh LiPo Battery

• Type: LiPo (Lithium Polymer)
• Voltage: 11.1V (3S) – 3 Cells in Series
• Capacity: 4200mAh
• Discharge Rate: 35C constant, for high-power applications
  • Max Continuous Discharge: 147A (4200mAh x 35C)
  • Max Burst Discharge: 50C for short bursts (up to ~210A for 5-10 seconds)
• Connector: XT60 plug
• Dimensions:
  • Length: Approximately 138mm
  • Width: Approximately 42mm
  • Height: Approximately 26mm
• Weight: ~340 grams
• Charge Rate: Recommended at 1C (4.2A) for longevity; up to 2C (8.4A) for faster charging with lifespan trade-off
• Balancer Connector: JST-XH type
• Application: Designed for high-performance RC models, including high-powered planes, helicopters, and advanced drones that require longer flight times or higher power.

General Notes on Safety and Usage

• Charging: Always use a compatible LiPo charger with balance charging functionality. Avoid overcharging or over-discharging as this can reduce battery life or cause damage.
• Storage: Store at a nominal voltage of around 3.8V per cell (11.4V for 3S) when not in use to maintain battery health.
• Temperature Monitoring: Avoid operating or charging in extreme temperatures; overheating can lead to swelling or potential damage.
