JST Wire Connectors Male / Female JST (2Pin-10Pin)

JST Wire Connectors Male / Female JST (2Pin-10Pin)

Introducing JST Wire Connectors, the perfect solution for your electrical connection needs. These connectors are designed to provide a secure and reliable connection for your wires, ensuring optimal performance and safety. With their compact size and easy-to-use design, those are ideal for a wide range of applications. Order yours today!

Description

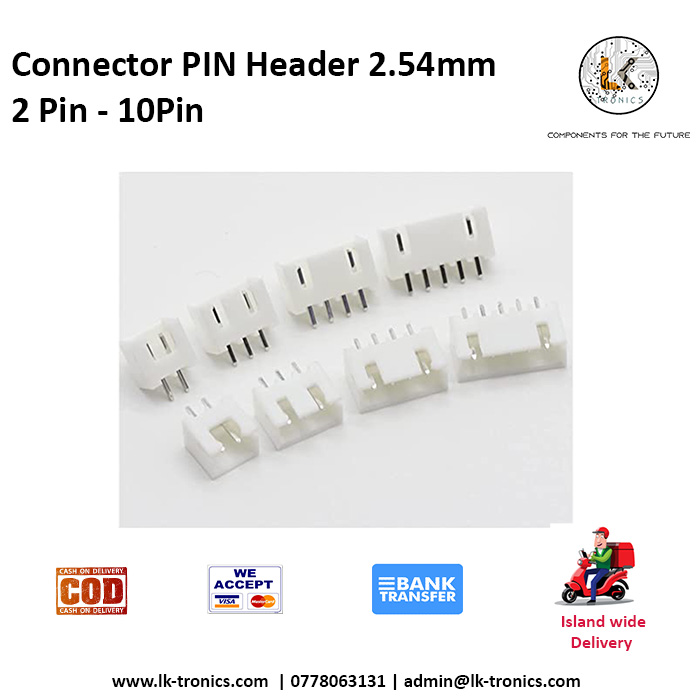

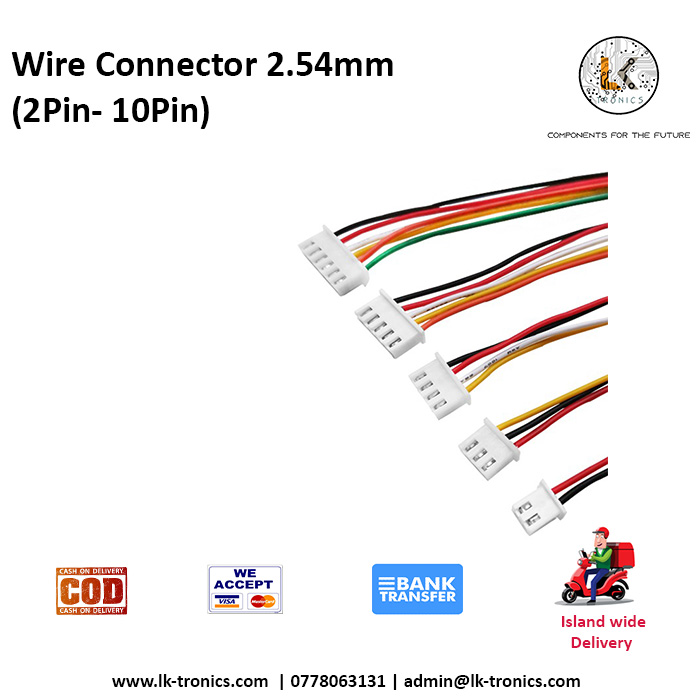

• Wire Connector male 2.54mm (2Pin-10Pin)
• Pitch: 2.5mm
• Number of Wires: 2~10
• Wire Range: AWG30#~22#
• Board Thickness: 0.8~1.6mm
• Rated Voltage: 250V AC/DC
• Rated Current: 0.6-0.8A AC/DC
• Working Temperature: -25℃~+85℃
• Withstanding Voltage: 1000V/min
• Contact Resistance: ≤0.02Ω
• Insulation Resistance: ≥1000MA
• Housing: Nylon 666
• Pin: Brass
