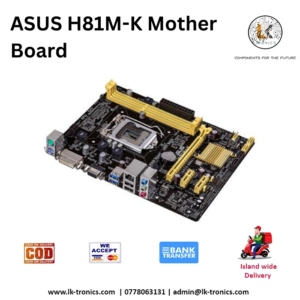

Asus H81 Motherboard – H81M-K

This Asus H81 Motherboard supports Intel® 4th generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes.

1 Year Warranty

Model: H81M-K

CPU: Intel® Socket 1150 for 4^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU type.

Chipset: Intel® H81

Memory: 2 x DIMM, Max. 16GB, DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Due to Intel® chipset limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run at the maximum transfer rate of DDR3 1600 MHz.

Graphic: Integrated Graphics Processor
Multi-VGA output support: DVI/RGB ports
– Supports DVI with max. resolution 1920  x 1200  @ 60 Hz
– Supports RGB with max. resolution 1920  x 1200  @ 60  Hz
The maximum shared memory of 1024  MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™

Expansion Slots

1 x PCIe x16
2 x PCIe 2.0 x1

Storage

Intel® H81 chipset :
2 x SATA 6Gb/s port(s), yellow,
2 x SATA 3Gb/s port(s), dark brown,
Supports Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN

Realtek® 8111G, 1 x Gigabit LAN Controller(s)

Audio

Realtek ALC887/897 8-Channel High Definition Audio CODEC *²
– Supports: Front Panel Jack-retasking, up to 24-bit/192kHz playback

USB Ports

Intel® H81 chipset :
2 x USB 3.1 Gen 1 port(s) (2 at back panel, blue)
Intel® H81 chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)

Special Features

ASUS EPU :
– EPU

Exclusive Features:

• – GPU Boost
• – AI Suite 3
• – Ai Charger
• – Anti-Surge
• – ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
• – Network iControl
• – USB 3.0 Boost
• – Disk Unlocker

Quiet Thermal Solution :

• – Stylish Fanless Design Heat-sink solution
• – ASUS Fan Xpert

 EZ DIY:

• – ASUS CrashFree BIOS 3
• – ASUS EZ Flash 2

Q-Design:

• – ASUS Q-Slot

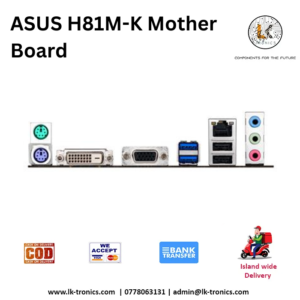

Back I/O Ports

• 1 x PS/2 keyboard (purple)
• 1 x PS/2 mouse (green)
• 1 x DVI
• 1 x D-Sub
• 1 x LAN (RJ45) port(s)
• 2 x USB 3.2 Gen 1 (blue)
• 2 x USB 2.0
• 3 x Audio jack(s)

Internal I/O Ports

• 1 x CPU Fan connector(s) (1 x 4 -pin)
• 1 x Chassis Fan connector(s) (1 x 4 -pin)
• 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
• 2 x SATA 6Gb/s connector(s)
• 2 x SATA 3Gb/s connector(s)
• 1 x S/PDIF out header(s)
• 1 x 24-pin EATX Power connector(s)
• 1 x 4-pin ATX 12V Power connector(s)
• 1 x Front panel connector(s)
• 1 x Front panel audio connector(s) (AAFP)
• 1 x Internal speaker connector(s)
• 1 x Clear CMOS jumper(s)

Accessories

• User´s manual
• I/O Shield
• 2 x SATA 6Gb/s cable(s)

BIOS

64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

WfM 2.0, DMI 2.0, WOL by PME, PXE

Support Disc

• Drivers
• ASUS Utilities
• EZ Update
• Anti-Virus Software (OEM Version)

Form Factor

• uATX Form Factor
• 8.9  inch x 6.9  inch ( 22.6  cm x 17.5  cm )

Note

• *1-1:Due to the limitation of the Intel® H81chipset, Intel® Rapid Start Technology can be configured only from the BIOS Setup program.
• *1-2:These functions will work depending on the CPU installed.
• *2 Use a chassis with an HD audio module in the front panel to support an 8-channel audio output.
