Tracked Robot Smart Car Platform with Damping Effect System for Arduino Raspberry Pi

Add to Wishlist
Compare

මෙම අයිතමය අපගේ වෙබ් අඩවියෙහි Shipping from Overseas
සේවාව යටතේ ගෙන්වන බැවින් මෙය ඔබ හට ලැබීමට
වැඩ කරන දින 10 – 20 පමණ ගත වේ.
මෙම අයිතමය ඔබ ඇනවුම් කල පසු මෙහි සියලුම යාවත් කාලීන කටයුතු e-mail මගින් සිදු කෙරේ
ස්තූතියි!

Add to Quote

Compare



  • Brand Name: SZDoit
  • Origin: CN(Origin)
  • Material: Metal
  • Model Number: TS100
  • State of Assembly: Unassembled Kit
  • Barcode: Yes
  • Barcode number: 2ALSB-ESP-F
  • Flight Time: Other
  • Controller Battery: Other
  • Certification: 3C
  • 3C: Certificate
  • Certificate Number: 2017NT04142709
  • Features: Remote Control
  • Type: Tank
  • Remote Distance: 100m
  • Warning: Other
  • Controller Mode: MODE2
  • Warranty: Other
  • Dimensions: 269* 258 *111mm
  • Control Channels: 2 Channels
  • Remote Control: Yes
  • Charging Voltage: Other
  • Design: Other
  • Age Range: > 6 years old
  • Charging Time: Other

14

Product Application:

  • Competition;
  • Graduation design;
  • The engineering prototype;
  • Robot project;
  • DIY creations

Product Parameters:

  • Name: TS300 Shock Absorption tank chassis

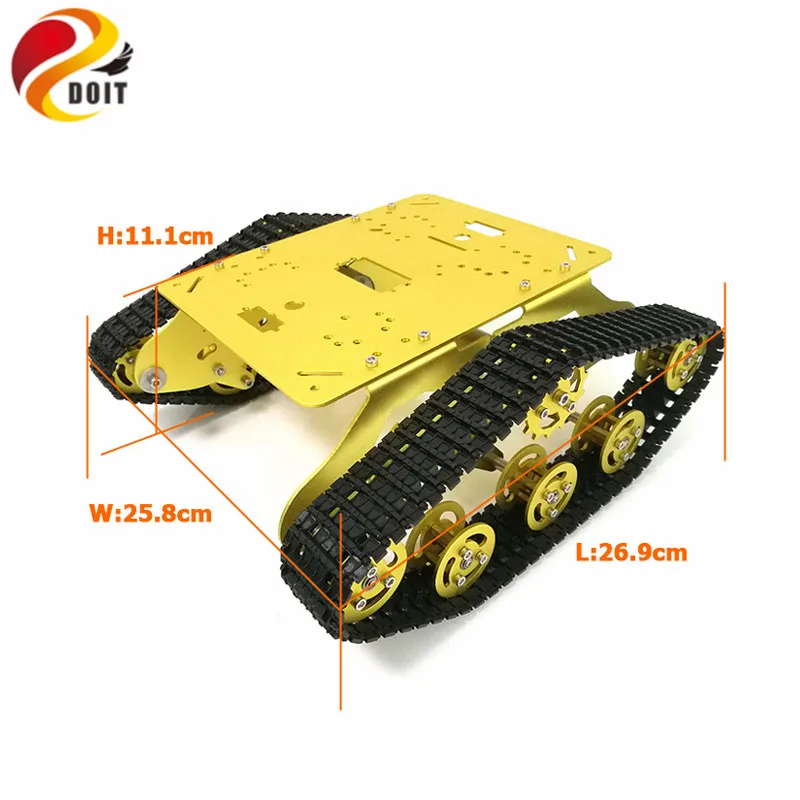

  • Size: 269* 258 *111mm
  • Weight: 0.99kg
  • Material: Aluminum Alloy
  • Surface treatment: Sandblasting oxidation
  • Wheel: Aluminum Alloy
  • Track: Engineering plastic
  • Color: Yellow/black/silver
  • Design load: 5kg

Motor Parameters:

  • Voltage: 12V DC
  • RPM: 320RPM
  • Current: 0.55A
  • Diameter: 25mm
  • Height (excl. shaft): 68mm
  • Shaft length: 9.5mm
  • Shaft diameter: 4mm
  • Weight: 180g
  • Brand new and unused
  • Torque: 13kg.cm
  • max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A
  • Max power: load 7kg.cm/215rpm/3.1w/0.65A
  • Stall current: 4.8A

Package Included:

  • 1*chassis
  • 2*tracks
  • 10*bearing wheel
  • 2*driving wheel
  • several screws and necessary accessories for installation.

Note: the tank chassis is unassembled for the transportation convenient. Please contact us to get the installation manual if you need.

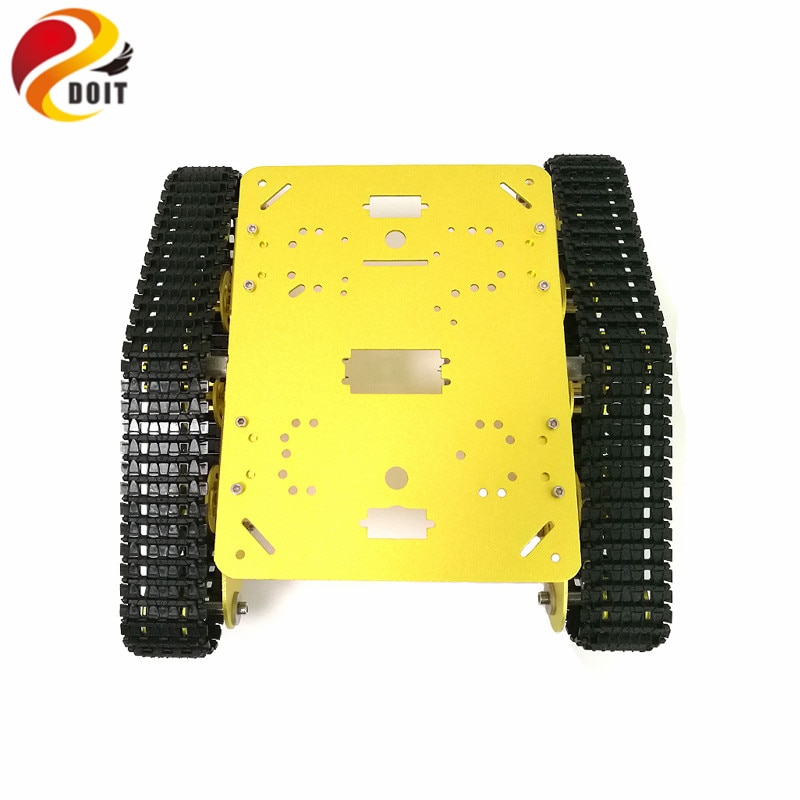

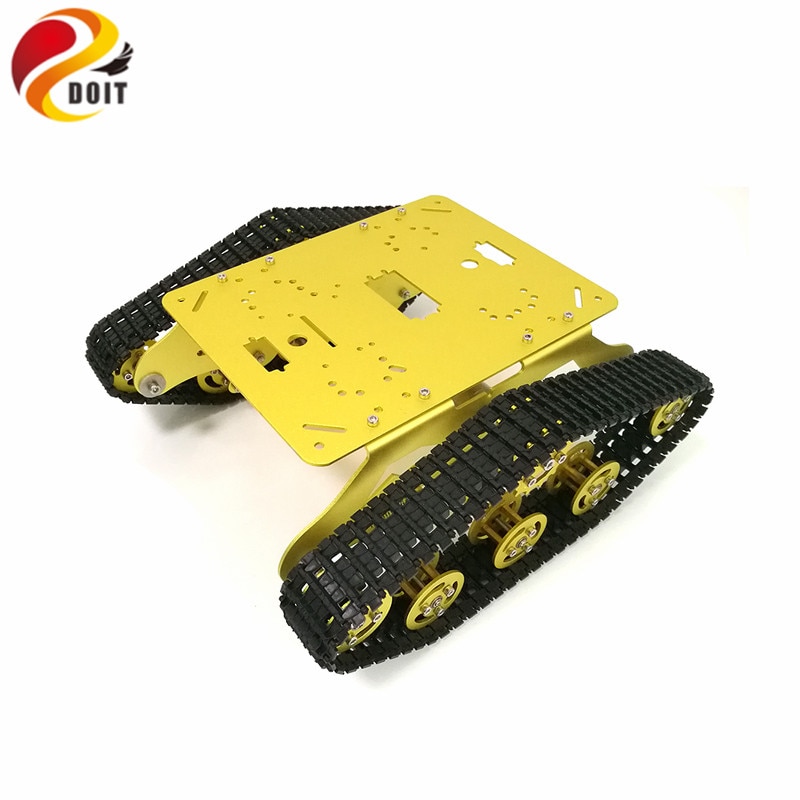

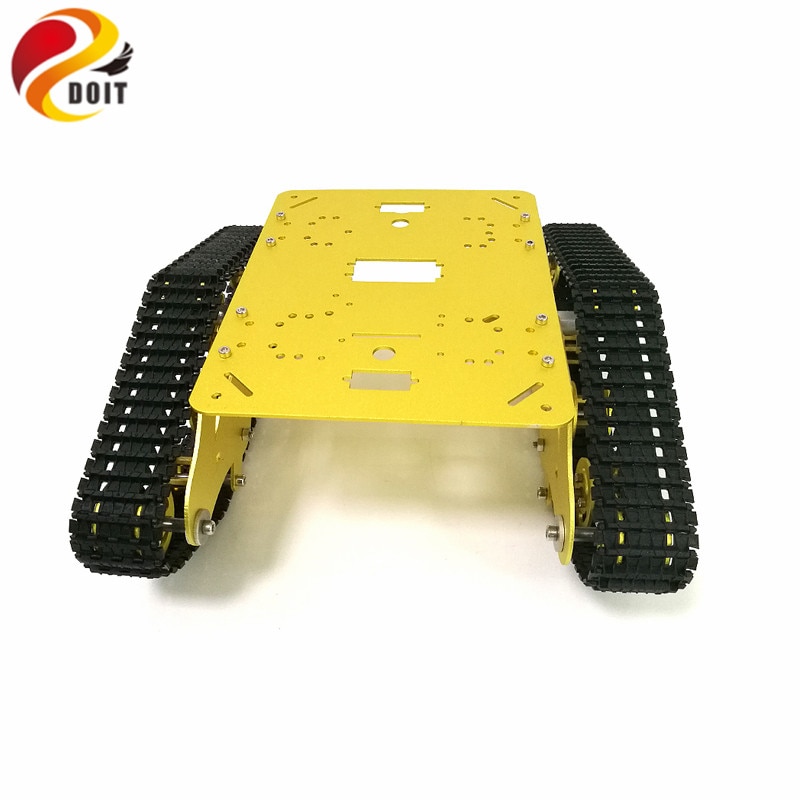

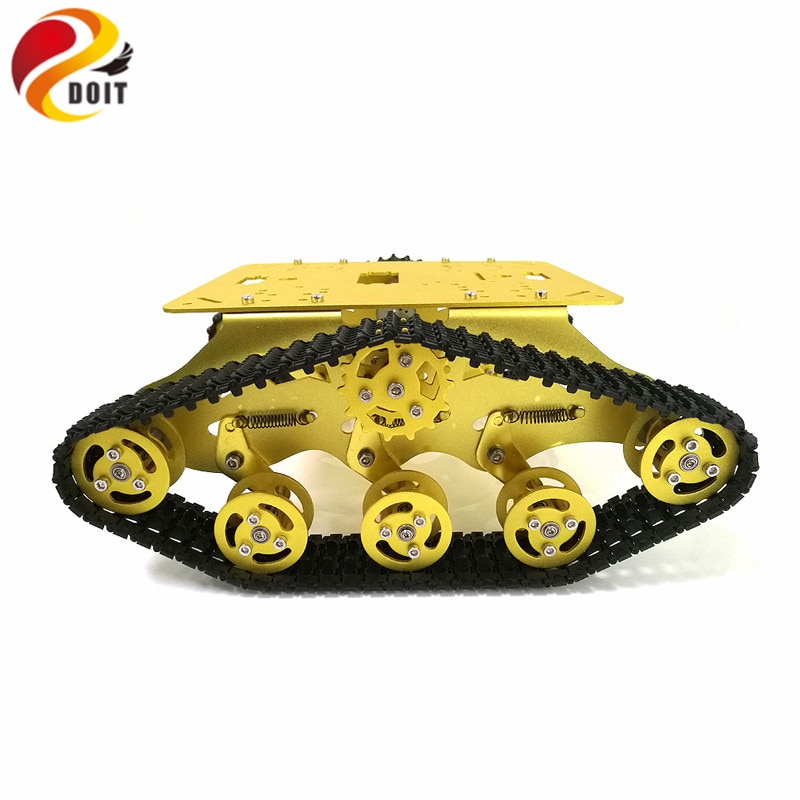

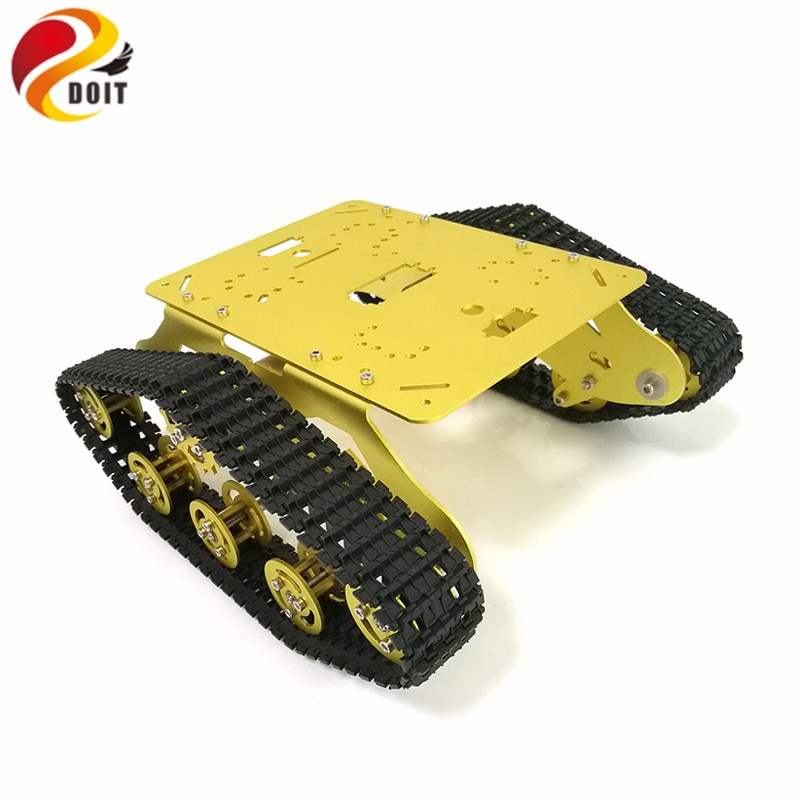

Product Pictures:

234578911
