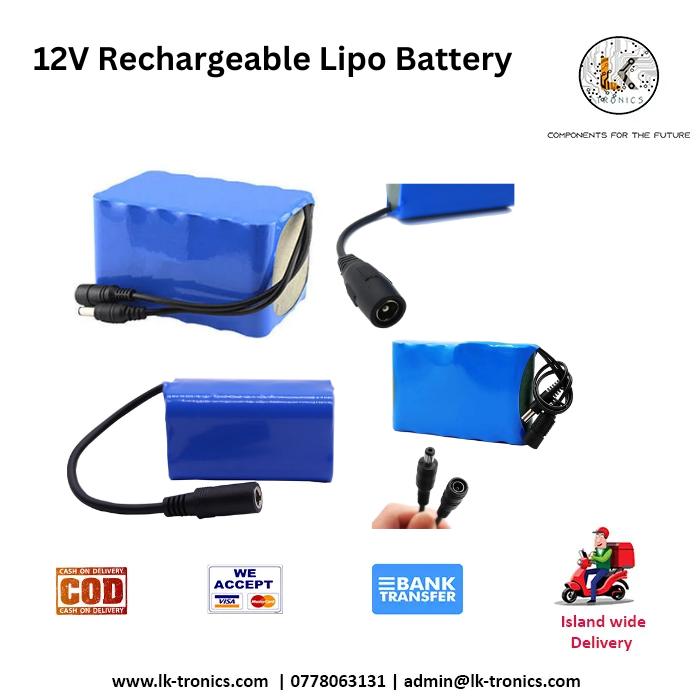

12V 1500mAh / 3000mAh / 4000mAh Rechargeable Lipo Battery

General Specifications for 12V LiPo Batteries

• Battery Type: Lithium Polymer (LiPo)
• Nominal Voltage: 12V
• Capacities:
  • 1500mAh
  • 3000mAh
  • 4000mAh
• Energy Capacity:
  • 1500mAh: 18Wh
  • 3000mAh: 36Wh
  • 4000mAh: 48Wh
• Configuration: 3S (3 cells in series)
• Cell Voltage Range: 3.0V (min) – 4.2V (max) per cell
• Charging Voltage: 12.6V
• Max Continuous Discharge Current:
  • 1500mAh: 1C – 2C (1.5A – 3A)
  • 3000mAh: 1C – 2C (3A – 6A)
  • 4000mAh: 1C – 2C (4A – 8A)
• Peak Discharge Current:
  • 1500mAh: 2C – 3C (3A – 4.5A)
  • 3000mAh: 2C – 3C (6A – 9A)
  • 4000mAh: 2C – 3C (8A – 12A)
• Cycle Life: 300 – 500 cycles
• Charge Time:
  • 1500mAh: Approx. 1 – 2 hours
  • 3000mAh: Approx. 2 – 3 hours
  • 4000mAh: Approx. 3 – 4 hours
• Recommended Charge Current:
  • 1500mAh: 0.5C – 1C (0.75A – 1.5A)
  • 3000mAh: 0.5C – 1C (1.5A – 3A)
  • 4000mAh: 0.5C – 1C (2A – 4A)
• Operating Temperature: 0°C to 45°C (for charging)
• Discharge Temperature: -20°C to 60°C
• Storage Temperature: -10°C to 35°C
• Protection Circuit: Overcharge, over-discharge, and short-circuit protection
• Connector Type: JST, XT60, or custom per requirement
• Battery Weight (Approx.):
  • 1500mAh: 100-150g
  • 3000mAh: 200-300g
  • 4000mAh: 300-400g
• Battery Dimensions (Approx.):
  • 1500mAh: 70 x 35 x 20 mm
  • 3000mAh: 80 x 40 x 25 mm
  • 4000mAh: 90 x 45 x 30 mm
• Applications: RC models, backup power, robotics, and portable electronics

Notes on Usage

• Charging: Always use a LiPo-compatible charger to avoid overcharging, which can cause overheating or damage.
• Storage: Store batteries at a charge level of approximately 3.7V to 3.9V per cell in a cool, dry place to extend lifespan.
• Safety: Handle with care, as LiPo batteries can be sensitive to physical impact and high temperatures.
