Samkoon S Series Expansion Module

Overview



Samkoon S Series Expansion Modules are designed to seamlessly extend the functionality of FAs and FAT series PLCs. These modules support a wide range of I/O configurations and communication protocols, making them highly adaptable for various industrial control environments. Select models can even function as independent control units, enabling decentralized control for complex automation systems. With industrial-grade durability, high-speed performance, and compliance with global standards like CE and FCC, the S Series delivers both flexibility and reliability for modern automation tasks.

Product Features

Independent Control Capability



Certain models can operate as standalone control units running custom programs for distributed automation.

Versatile Interfaces

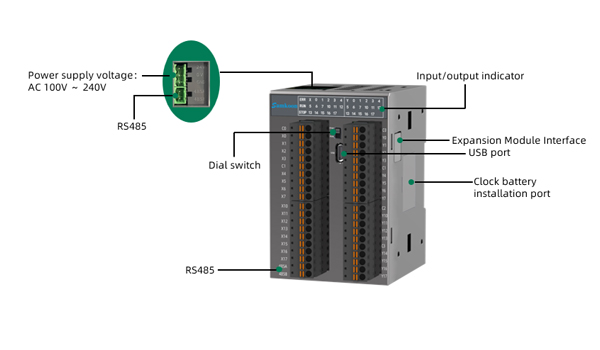

Supports RS485, CAN, and USB for uploading, downloading, and online monitoring, enabling easy integration and configuration.

Flexible I/O Options



Wide selection of digital input/output types, pulse output up to 200kHz, and support for SINK/SOURCE wiring configurations.

Industrial-Grade Compliance



Built for harsh environments with IP30 protection, CE & FCC Class A certification, and 1000V insulation testing.

Specifications

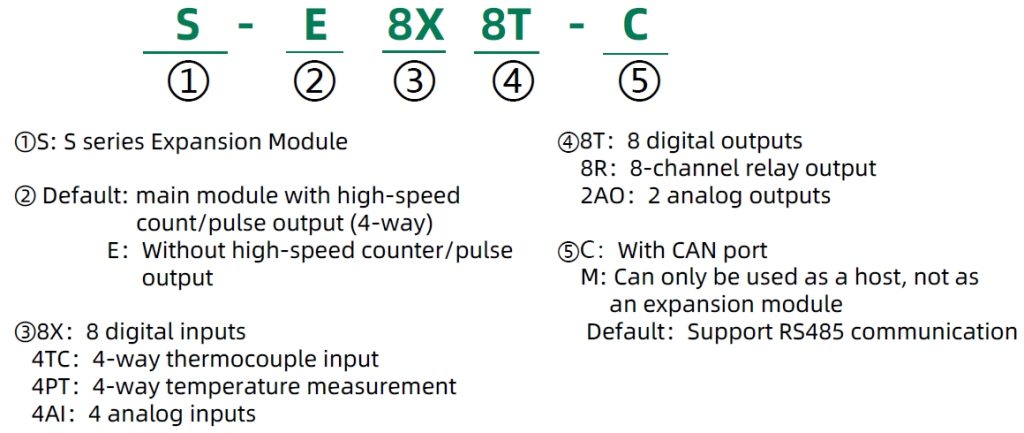

Naming Rules

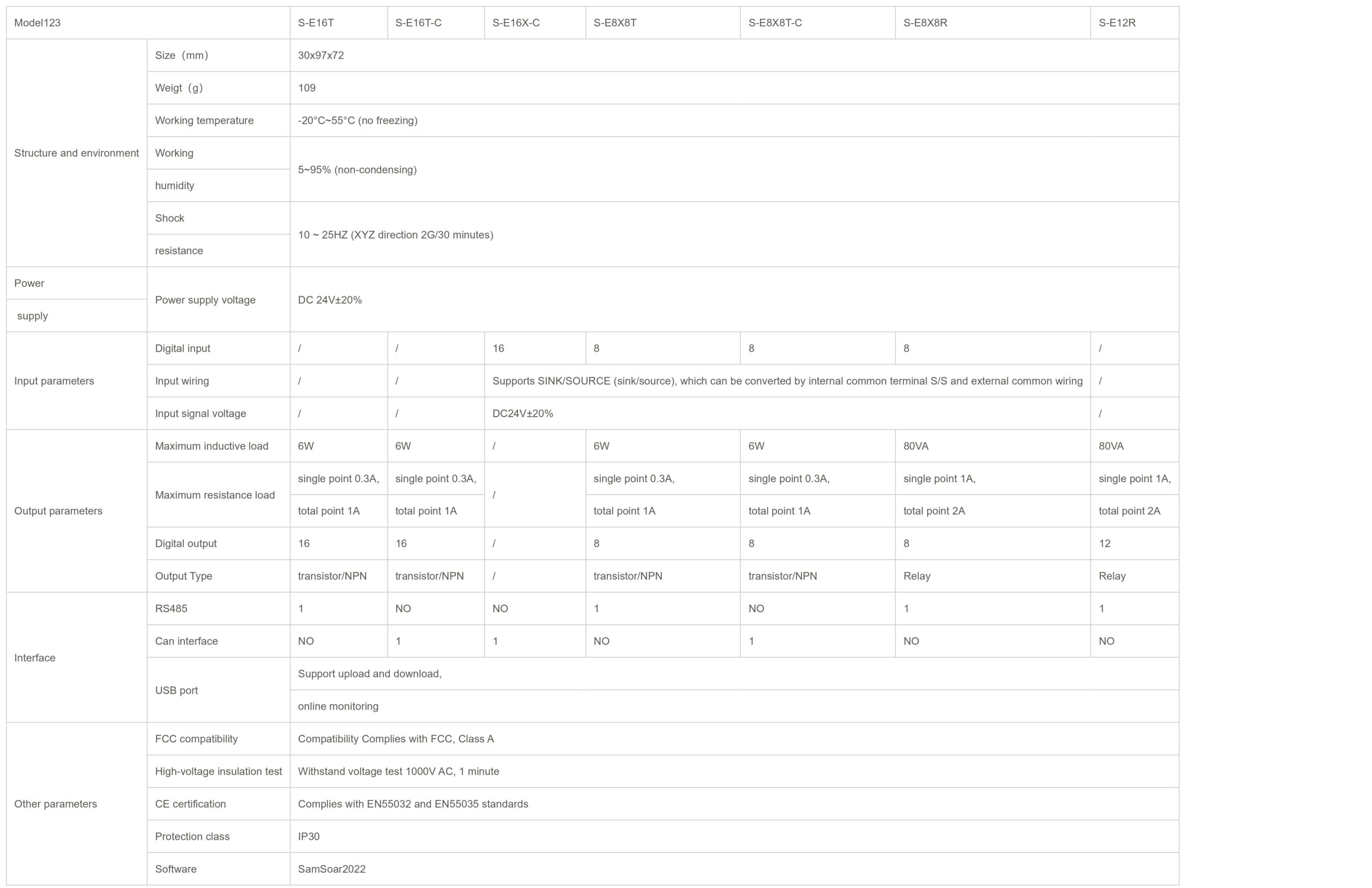

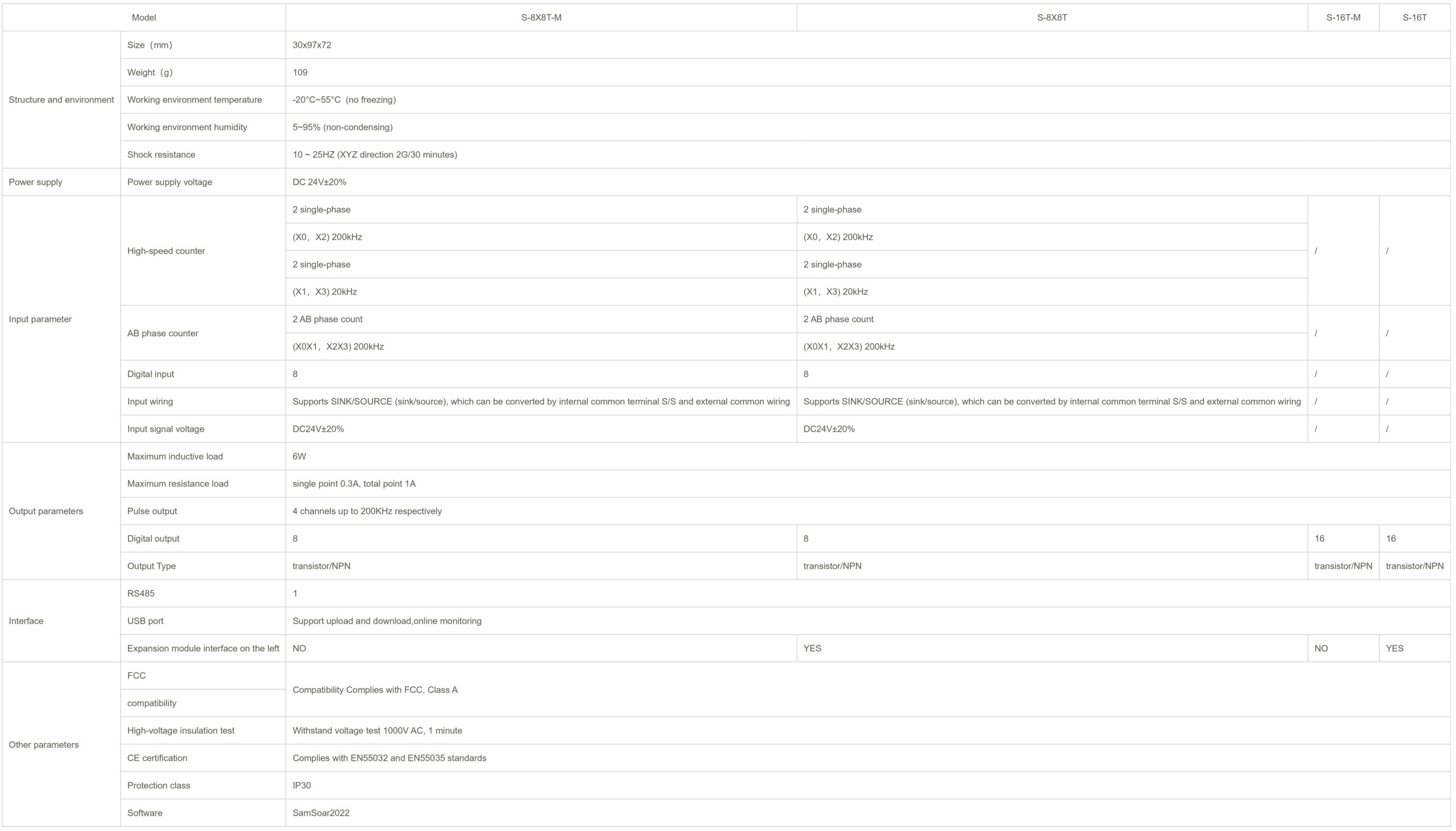

Specifications & Models

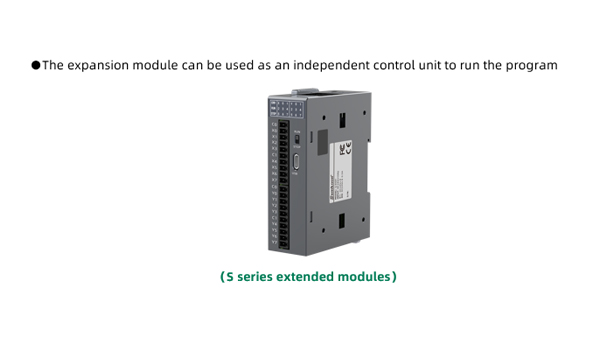

  • The S expansion modules can be used as an independent control unit to run the program.

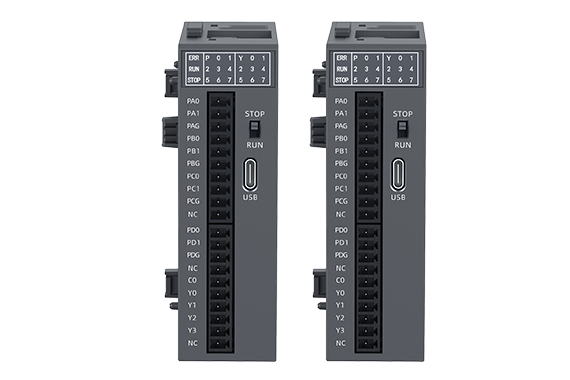

  • The “S-E” expansion module can only be used together with PLC host.

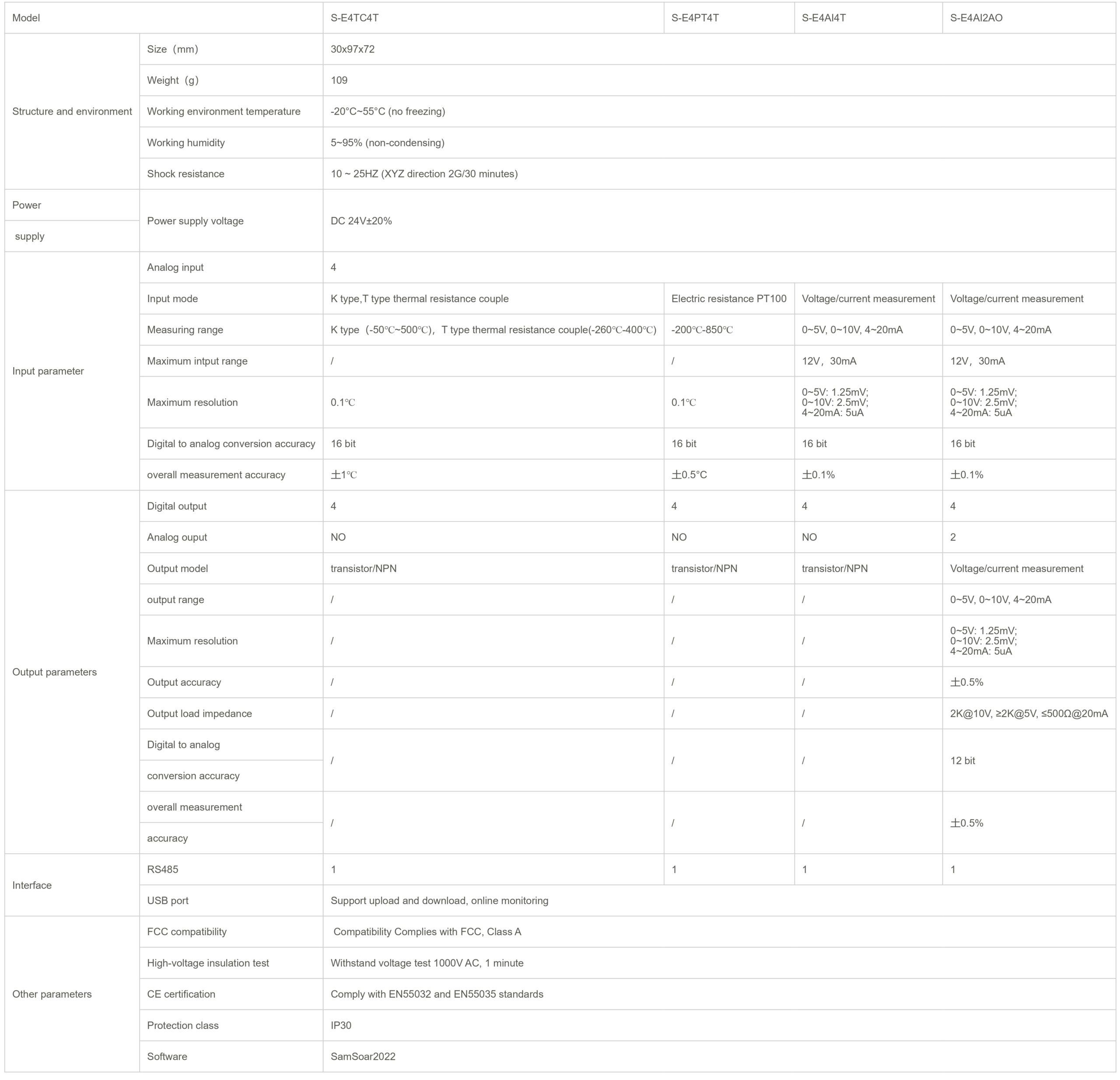

  • Analog expansion modules
