STM32F103C6T6 Development Board Upgrade Mini STM32 System Microcontroller Core Board

LKMIC00028

STM32F103C6T6 Development Board Upgrade Mini STM32 System Microcontroller Core Board
darazsales

]]> LK-Tronics

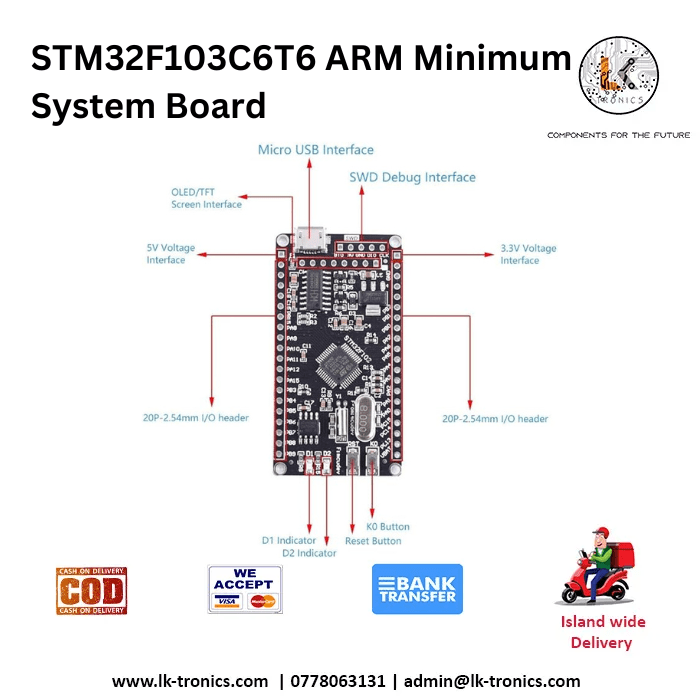

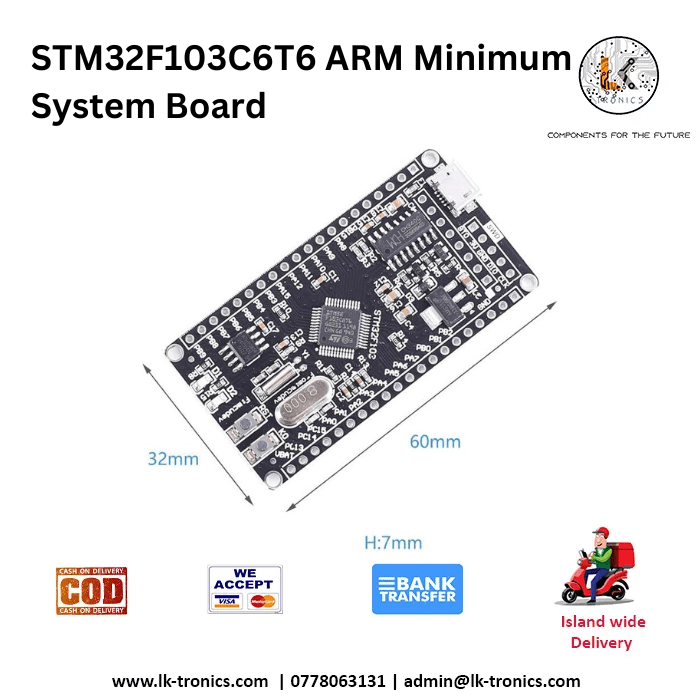

STM32F103C6T6 Development Board Upgrade Mini STM32 System Microcontroller Core Board

STM32F103C6T6 ARM Minimum System Board Embedded Microcomputer Core Module

This is STM32F103C6T6 Development Board Minimum System STM32 ARM Core Board. This board is a low-cost Minimum System Development Board for ARM Microcontroller STM32F103C6T6. The board is suitable for learners that want to learn the STM32 microcontroller with ARM Cortex-M3 32-bit core.
Specification:
  • Onboard Mini USB interface, you can give the board power supply and USB communication.
  • 72MHz work frequency
  • 32KB flash memory, 20K SRAM
  • 2.0-3.6V power, I/O
  • Reset(POR/PDR)
  • 4-16MHz crystal
  • 32 kHz oscillator for RTC with calibration
  • Up to 2 x I2C interfaces (SMBus/PMBus)
  • Up to 3 USARTs (ISO 7816 interface, LIN, IrDA capability, modem control)
  • Up to 2 SPIs (18 Mbit/s)
  • CAN interface (2.0B Active)

VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP



STM32F103C6T6 Development Board Upgrade Mini STM32 System Microcontroller Core Board
darazsales

]]> https://lk-tronics.com/product/stm32f103c6t6-development-board-upgrade-mini-stm32-system-microcontroller-core-board/feed/ 0 12655 ESP32 Development Board 2.4GHz WiFi+Bluetooth 38 Pin https://lk-tronics.com/product/esp32-development-board-2-4ghz/ https://lk-tronics.com/product/esp32-development-board-2-4ghz/#respond Thu, 02 Dec 2021 13:30:32 +0000 https://lk-tronics.com/?post_type=product&p=8030 LK-Tronics
ESP32 Development Board 2.4GHz WiFi+Bluetooth 38 Pin

LKMIC00010

ESP32 Development Board 2.4GHz WiFi+Bluetooth 38 Pin
Ashen Premathilake

]]> LK-Tronics
ESP32 Development Board 2.4GHz WiFi+Bluetooth 38 Pin

ESP32 Development Board 2.4GHz WiFi+Bluetooth 38 Pin

ESP32 Development Board has already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters,

and power management module. The entire solution takes up the least amount of printed circuit board area.

This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,

power and RF properties best, which is safe, reliable, and scalable to a variety of applications.



Features

  • High performance-price ratio
  • Small volume, easily embedded to other products
  • Strong function with support LWIP protocol, Freertos
  • Supporting three modes: AP, STA, and AP+STA
  • Supporting Lua program, easily to develop

Specifications:

  • Size: 5.8* 2.8* 1.2cm
  • Color: black
  • Model: ESP-32
  • Operating Temperature: -40 ~ +85
  • Supply Voltage: 3.3V

Package Included:

  • 1* ESP-32 Development Board

Use the document download: https://github.com/Nicholas3388/LuaNode

Manual: https://github.com/SmartArduino/SZDOITWiKi/wiki/ESP8266—ESP32



ESP32 Development Board

ESP32 Development Board ESP32 Development Board

VISIT OUR FACEBOOK PAGE FOR MORE INFO | MORE PRODUCT IN OUR SHOP

ESP32 Development Board 2.4GHz WiFi+Bluetooth 38 Pin
